MYC-YR3562
Rockchip RK3562, Quad-core CPU, 1 TOPS NPU
RK3562: 4*Cortex-A53@2.0 GHz,1TOPS NPU
RK3562J: 4*Cortex-A53,normal mode 1.2GHz,overdrive mode 1.8GHz
3D GPU Mail-G52-2EE,13M ISP
Supports 4K@30fps H.265, 1080p@60fps H.264 Decoder and 1080P@60fps H.264 Encoder
1GB/2GB LPDDR4, 8GB/16GB eMMC, 32Kbit EEPROM
Power Management IC (PMIC)
164-pin Castellated-Hole and 58-pin LGA expansion interfaces
Supports for Linux 6.1.99 OS
MYD-YR3562 Development Board
Rockchip Approved Partner
High Performance, Low Power RK3562 Processor with Integrated 1TOP NPU
RK3562J/RK3562 is a high-performance, low-power quad-core application processor designed for consumer electronics and industrial equipment. Equipped with quad-core ARM Cortex-A53 +Cortex-M0, the main frequency can reach up to 2.0GHz; with 1TOPS NPU, compatible with deep learning frameworks such as TensorFlow, PyTorch, Caffe, ONNX, MXNet, Keras, Darknet, etc.; integrated Mali G52 GPU, support OpenGL ES1.1/2.0/3.2, OpenCL2.0 and Vulkan1.1

SOM - MYC-YR3562

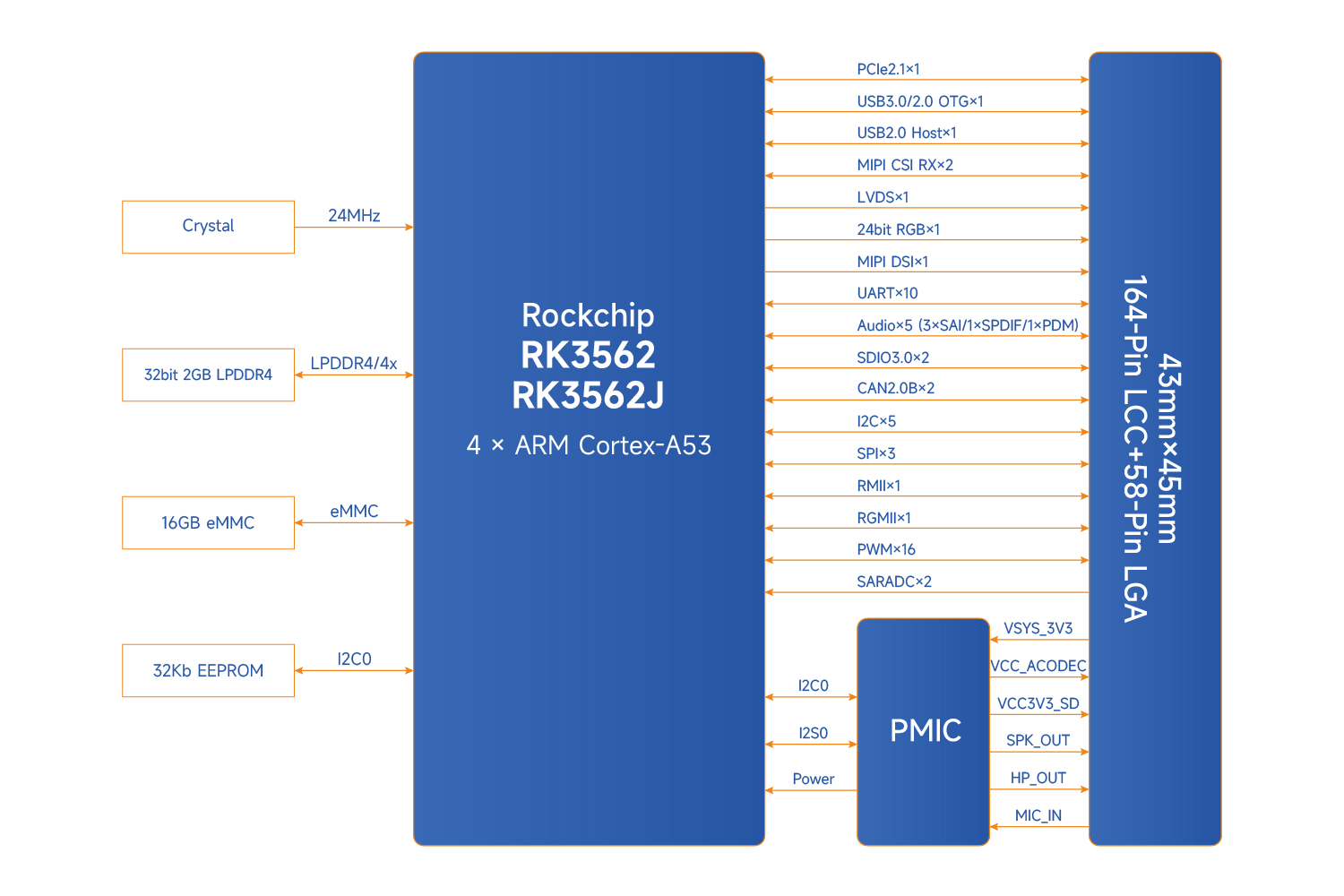

Measuring only 43mm by 45mm, the MYC-YR3562 is a compact System-On-Module (SOM) based on the Rockchip RK3562/RK3562J processor. It boasts a quad-core ARM Cortex-A53 CPU running at up to 2.0GHz. The module supports a 1Tops NPU, G52 3D GPU and 4K@30fps Video Decoder, H.264 1080p@60fps Video Encoder capabilities. The MYC-YR3562 incorporates the RK3562/RK3562J processor and offers onboard options of 1GB/2GB LPDDR4 memory, 8GB/16GB eMMC storage, a 32Kbit EEPROM, and a Power Management IC (PMIC). It features a 222-pin expansion interface with 164-pin Castellated-Hole and 58-pin in LGA package, which simplifies soldering onto base boards, enabling a range of I/O functionalities. It runs Linux 6.1.99 and comes with comprehensive documentation and software packages, making it suitable for applications such as smart electric devices, industrial IoT, robotics, and advanced industrial systems.


Development Board - MYD-YR3562
Built around the MYC-YR3562 System-On-Module (SOM), the MYD-YR3562 Development Board leverages the advanced capabilities of the RK3562(J) processor through its 164-pin Castellated-Hole and 58-pin LGA expansion interfaces. It offers a wide array of connectivity options, including two USB 3.0 interfaces, one Gigabit Ethernet, two 10/100Mbps Ethernet ports, and an integrated WiFi/Bluetooth module. The board also features a Micro SD card slot and an M.2 NVMe SSD-compatible PCIe slot for storage expansion. For multimedia applications, it provides HDMI, MIPI-DSI, and multiple MIPI-CSI video input interfaces, as well as a 3.5mm audio jack. Additionally, the board supports extensive peripheral signal expansion via the RPI Interface (GPIO/I2C/UART/SPI/CAN) and MiFAN Interface (GPIO/I2C/UART/SPI/USB2.0), allowing users to customize their projects to suit specific development needs.
The MYD-YR3562 is equipped with a 12V/3A power adapter, a USB Type-C cable, a WiFi/Bluetooth antenna, and a quick start guide. MYIR provides optional accessories, such as the MY-CAM004M 4AHD-to-MIPI Camera Module, MY-CAM005M MIPI Camera Module, and MY-MIPI101C 10.1-inch LCD Module. The MYD-YR3562J-GK kit, featuring the RK3562J CPU, includes the MY-ICEB001 expansion board, which adds three USB2.0 ports, one RS232 port, two RS485 ports, two CAN interfaces, and an M.2 Socket for a USB-based 4G/5G LTE Module with a SIM card holder, operating within a temperature range of -40 to 85 degrees Celsius. These enhancements substantially broaden the board's functionality, providing users with the flexibility to tailor the solution to their unique project needs.







Rich Development Resources
The MYC-YR3562 SOM and development boards offer driver support for Linux, along with user manuals, PDF schematics, peripheral drivers, BSP source code packages, development tools, and other related resources, providing developers with a stable design reference and a comprehensive software development environment.

Rich Application Scenarios
RK3562 is ideal for advanced industrial applications, including next-generation power equipment, industrial IoT, industrial control systems, robotics, commercial displays, touch-screen all-in-one machines, construction machinery, and rail transit.

Power Intelligent Equipment

Industrial Control Equipment

Industrial Internet Equipment

Industrial Robot

Engineering Machinery

Commercial Display
Hardware & Software
Item | Description |
---|---|
Processor | RK3562:4*Cortex-A53@2.0 GHz,1TOPS NPU |
RK3562J:4*Cortex-A53, normal mode 1.2GHz,overdrive mode 1.8GHz | |
Memory | LPDDR4: 1GB/2GB eMMC: 8GB/16GB EEPROM: 32Kbit |
Working Temperature | 0~70 Celsius (commercial grade, with RK3562 CPU) -40~85 Celsius (industrial grade, with RK3562J CPU) |
Dimensions | 43mm x 45mm |
PCB | 10-layer design |
Power Supply | 3.3V/2A |
Ethernet | 1x RGMII 1x RMII |
USB | 1x USB3.0/2.0 OTG |
1x USB2.0 Host | |
Multi-PHY | 1x PCIE 2.1/USB3.0 (Multi-PHY) |
SPI | 3x SPI |
SDIO | 2x SDIO 3.0 |
UART | 10x UART |
CAN | 2x CAN 2.0B |
I2C | 5x I2C |
PWM | 16x PWM |
ADC | 2x SARADC |
Video Input | 2x MIPI CSI |
Video Output | 1x 24-bit RGB 1x MIPI DSI 1x LVDS |
Audio | 3x SAI 1x SPDIF 1x 8-ch PDM |
Note: the peripheral signals brought out to the expansion interface are listed in maximum number. Some signals are reused. Please refer to the processor datasheet and CPU Module pin-out description file. |
ITEM | DESCRIPTION |
---|---|
Power | DC12V/3A |
Dimensions | 90mm x 120mm |
PCB Layers | 6-layer design |
KEY | 5x Buttons (Update, PWR, V+, V-, RESET) |
LED | 3x LEDs (1x PWR LED, 1x RUN LED, 1x USR LED) |
SD | 1x Micro SD card slot |
SSD | 1x M.2 NVME PCIE SSD socket |
DEBUG | 1x Debug UART (USB Type-C) |
Ethernet | 1x 10/100/1000Mbps Ethernet (RJ45) |
2x 10/100Mbps Ethernet (RJ45) | |
USB | 2x USB3.0 Interfaces (Type-A) |
WIFI/BT | 1x WiFi/Bluetooth Module (complies with IEEE 802.11a/b/g/n/ac standard and supports BT 5.2) |
DISPLAY | 1x HDMI Interface |
1x MIPI-DSI Interface (0.5mm pitch 30-pin FPC connector) Support MYIR’s MY-MIPI101C 10.1-inch MIPI Module with 1920*1200 resolution | |
VIDEO INPUT | 3x MIPI-CSI Interfaces (0.5mm pitch 30-pin FPC connector) Support MYIR’s MY-CAM004M and MY-CAM005M MIPI Camera Modules |
AUDIO | 1x 3.5mm Audio Interface |
1x Speaker Interface | |
Extension interfaces | 2x Extension Interfaces (2.54mm pitch 2x 20-pin expansion connector) - RPI Interface (GPIO/I2C/UART/SPI/CAN, compatible with Raspberry PI standard 40-pin extension interface) - MiFAN Interface (GPIO/I2C/UART/SPI/USB) |
MY-ICEB001 Expansion Board (for MYD-YR3562J-GK) | 1x Power Input (Phoenix connector) |
2x Buttons (RESET, USER) | |
2x LEDs (1x RUN LED, 1x USR LED) | |
1x RS232 Serial Port | |
2x RS485 Serial Ports | |
2x CAN Interfaces | |
3x USB2.0 ports (Type-A) | |
1x M.2 Socket for a USB-based 4G LTE Module | |
1x SIM Card Slot | |
2x Extension interfaces (2.54mm pitch 2x 20-pin connector) - RPI interface (GPIO/I2C/UART/SPI/CAN) - MiFAN interface (GPIO/I2C/UART/SPI/USB/PWM) |
Item | Features | Description | Source Code |
---|---|---|---|
Bootloader | SPL | First bootloader | YES |
U-boot | Second bootloader uboot_2017.9 | YES | |
Linux Kernel | Linux | Customized base on official kernel_6.1.99 version | YES |
Drivers | EEPROM | BL24C32F driver | YES |
USB Host | USB Host driver | YES | |
USB OTG | USB OTG driver | YES | |
I2C | I2C bus driver | YES | |
SPI | SPI bus driver | YES | |
Ethernet | YT8531SH-CA driver | YES | |
SR9900AI driver | YES | ||
YT8512H driver | YES | ||
HDMI | LT8912B driver | YES | |
RTC | LK8563T driver | YES | |
GPIO | Generic GPIO driver | YES | |
UART | RS232/RS485 Driver | YES | |
CAN | CAN driver | YES | |
WiFi | AP6256 driver | YES | |
BT | AP6256 driver | YES | |
LED | GPIO LED driver | YES | |
Key | GPIO Key driver | YES | |
File System | myir-image-linux | Full-featured image built as buildroot | YES |
