MYC-YT153MX
Allwinner T153, 4x Cortex-A7, 3 Gigabit Ethernet, Empowering Diverse Industrial Applications
Allwinner T153MX-BCX Processor based on 1.6GHz Quad ARM Cortex-A7 and 600MHz RISC-V E907 Cores
512MB/1GB DDR3(L), 8GB eMMC/512MB NAND FLASH, 32KB EEPROM
3x Gigabit Ethernet, 2x CAN-FD, 1x Local Bus, 2x MIPI CSI, 1x Parallel CSI
Supports RGB, Dual-link LVDS, and MIPI DSI Display
140-pin Castellated-Hole and 50-pin LGA Expansion Interfaces
Supports Working Temperature Ranging from -40°C to 85°C
Supports Linux OS
MYD-YT153MX and MYD-YT153MX-MINI Development Boards
Allwinner Third-party Partner
Allwinner T153, 4x Cortex-A7, 3 Gigabit Ethernet
The Allwinner T153 chip is an industrial-grade processor featuring a multi-core heterogeneous architecture. It integrates a quad-core Arm Cortex-A7 CPU and a single-core RISC-V Xuantie E907 real-time co-processor. Additionally, the T153 is equipped with three Gigabit Ethernet interfaces, two CAN-FD interfaces, and a Local Bus, enabling high-throughput network connectivity to meet the demands of complex data‑driven applications.
SOM - MYC-YT153MX

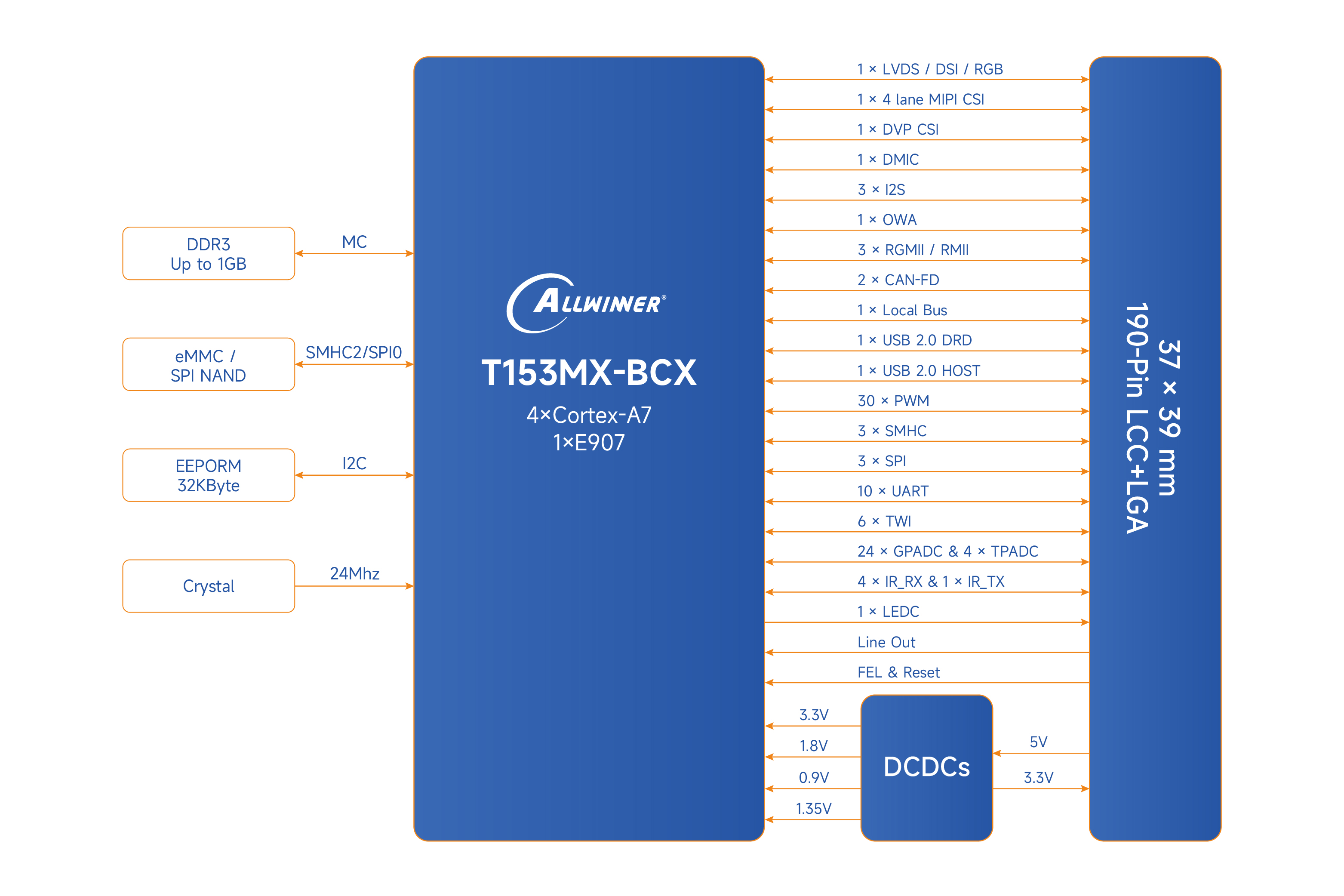

Measuring only 39mm by 37mm, the MYC-YT153MX is a compact System-on-Module (SoM) based on Allwinner T153MX-BCX processor, featuring 1.6GHz quad-core ARM Cortex-A7 and 600MHz RISC-V E907 cores. It includes G2D graphics acceleration and an Image Signal Processor (ISP), supporting RGB/LVDS/MIPI-DSI displays and CSI camera inputs. With 512MB/1GB DDR3(L) and 8GB eMMC/512MB NAND, this 190-pin module offers 3 Gigabit Ethernet ports, USB 2.0, multiple UART/CAN FD/TWI/SPI interfaces, and audio input/output. It is capable of running Linux OS and ideal for industrial controllers, Human-Machine Interfaces (HMIs), gateways, robots, and other high-reliability applications.
Development Boards - MYD-YT153MX & MYD-YT153MX-MINI

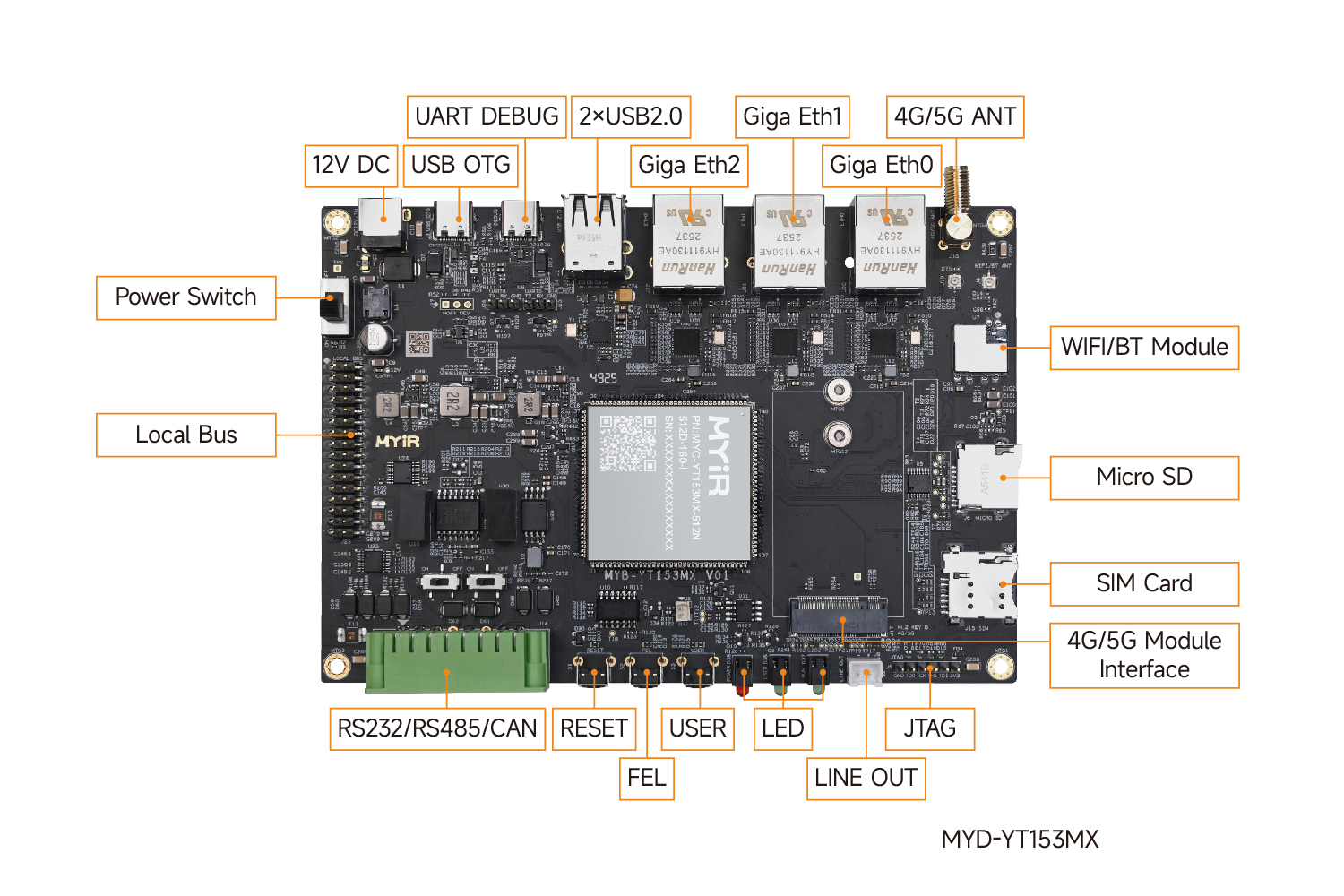

The MYD-YT153MX is equipped with an integrated WiFi/BT module and features versatile connectivity options, including three Gigabit Ethernet ports, two USB 2.0 Host interfaces, one USB 2.0 OTG interface, two RS232, two RS485, and one CAN interface via Phoenix terminals. It also has LVDS, MIPI-DSI, and dual MIPI-CSI interfaces for display and camera integration, along with a LINE OUT audio port. Additionally, there is a microSD card slot, a SIM card slot, a Localbus interface, and a 5G/4G module interface with a USB based M.2 Type B socket, as well as dedicated Debug and JTAG interfaces. To enhance its capabilities, MYIR provides optional accessories such as the MY-LVDS070C 7-inch LVDS Display Module and the MY-CAM003M MIPI Camera Module.

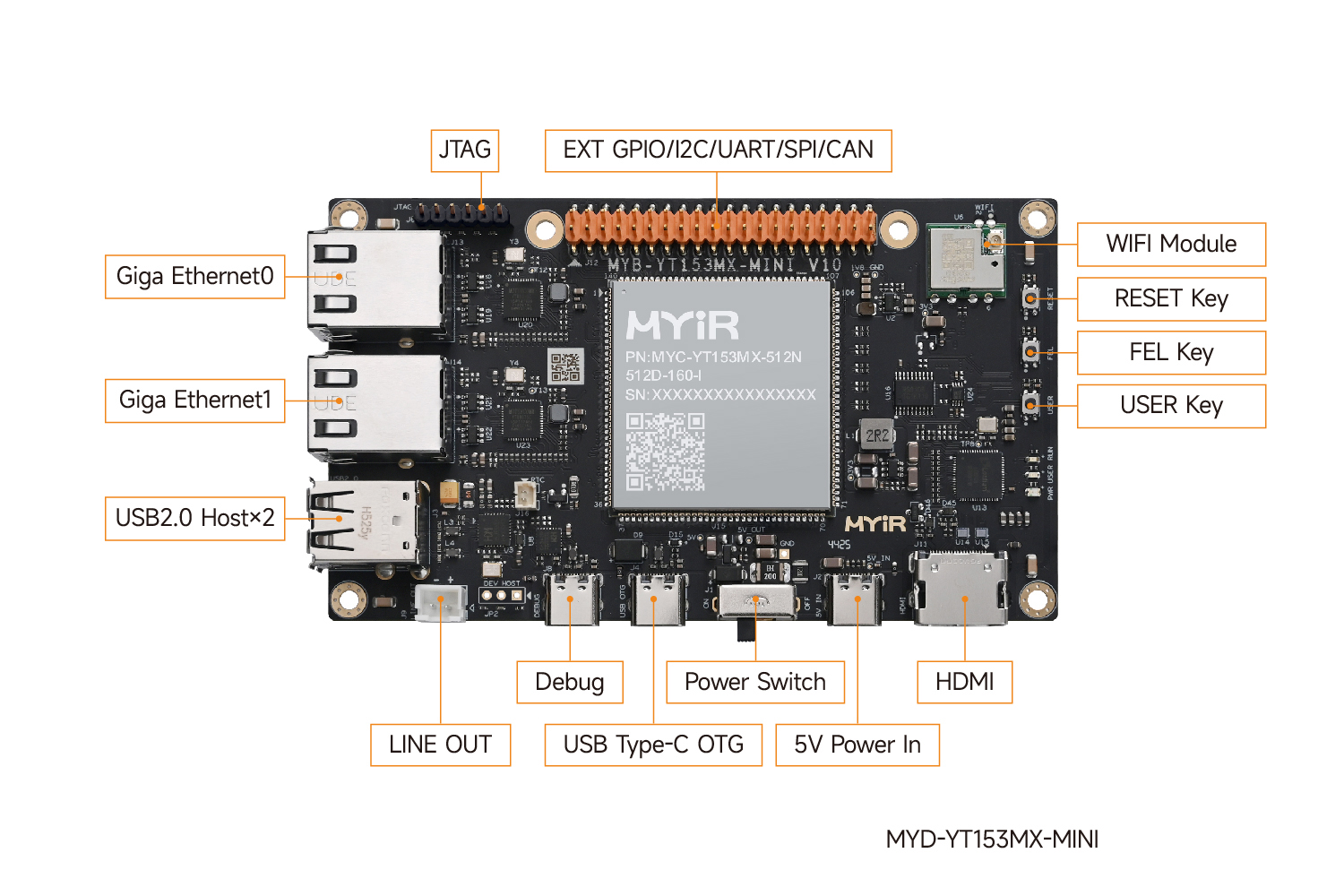

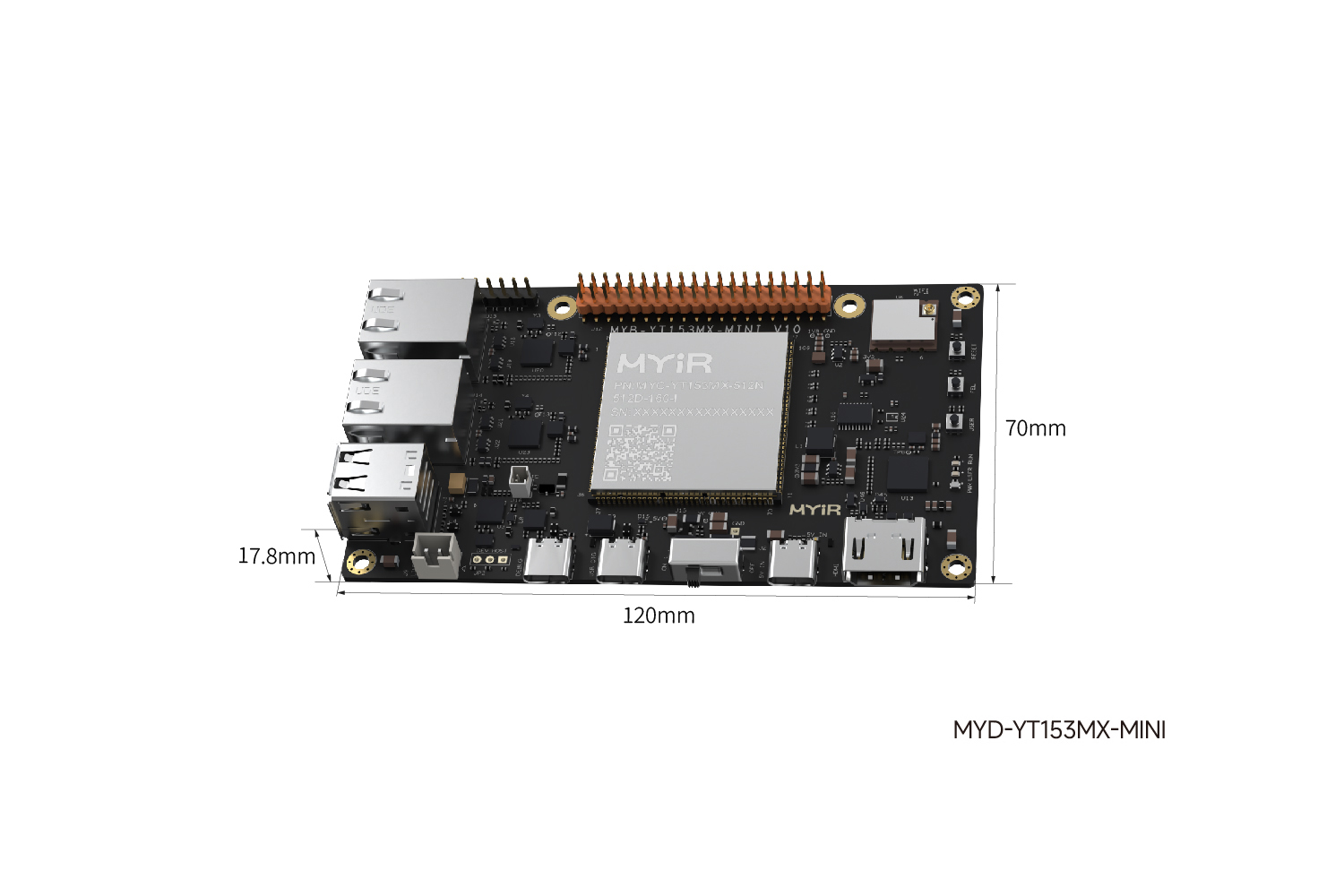

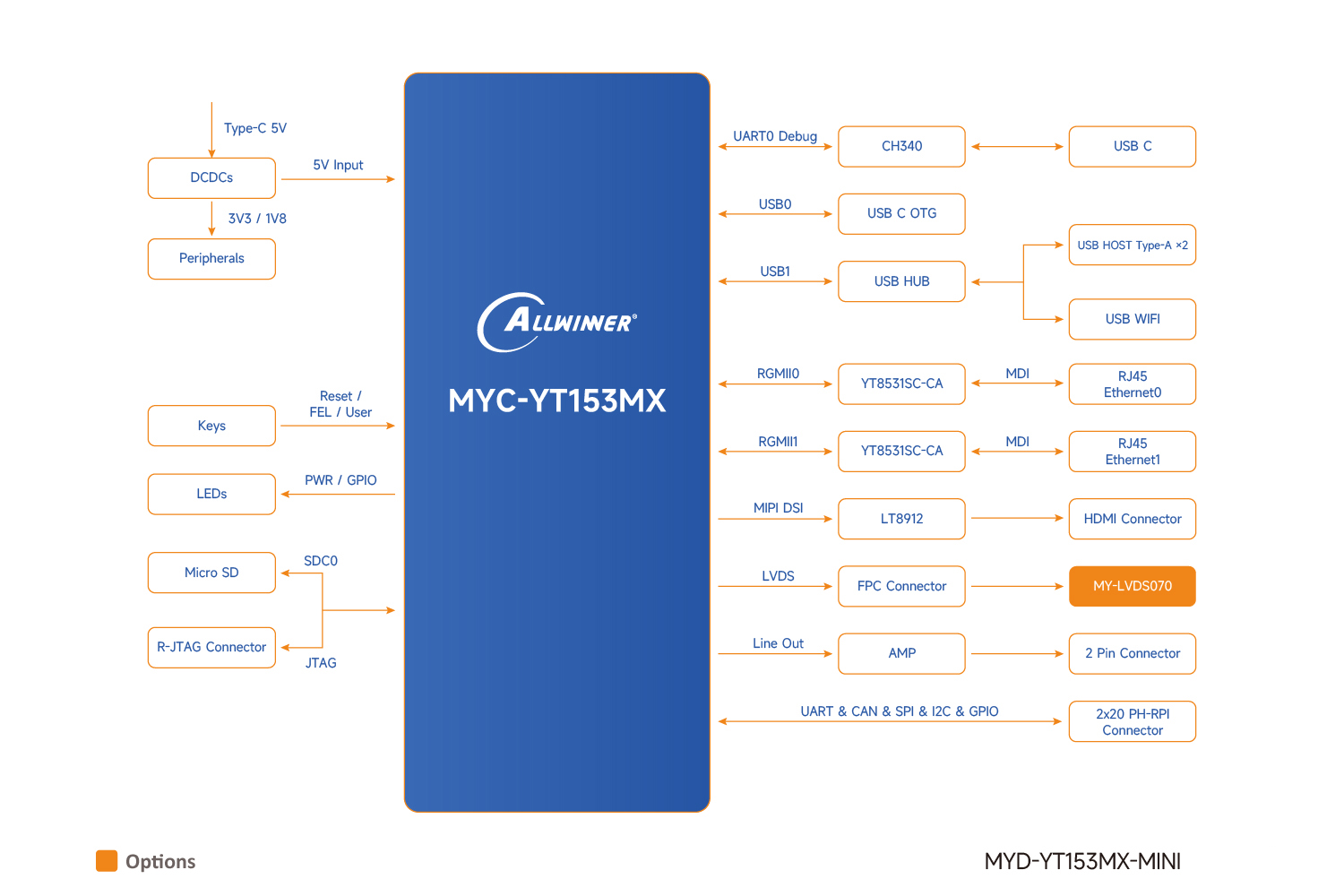

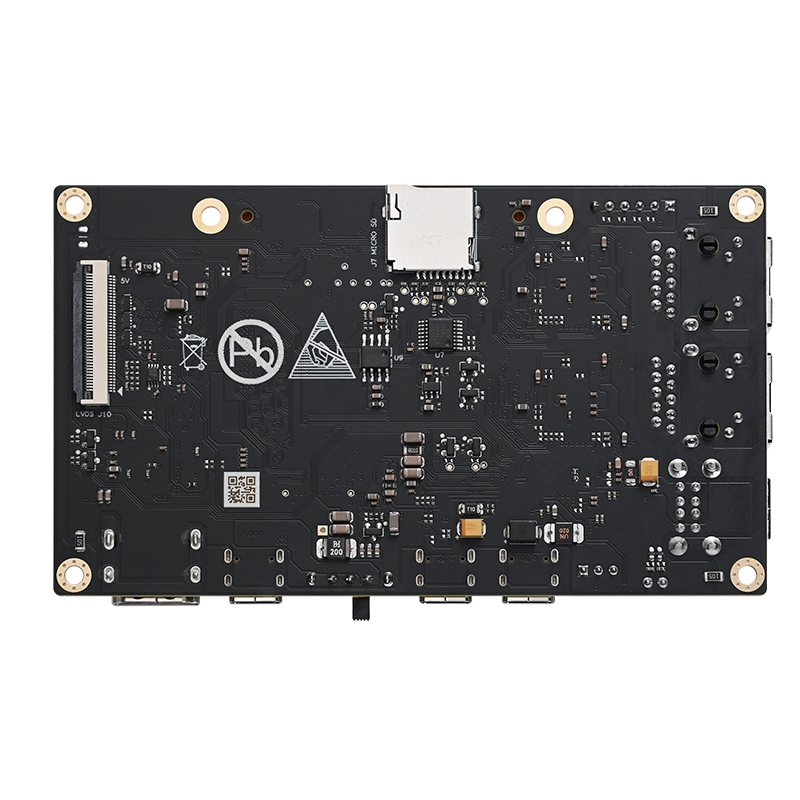

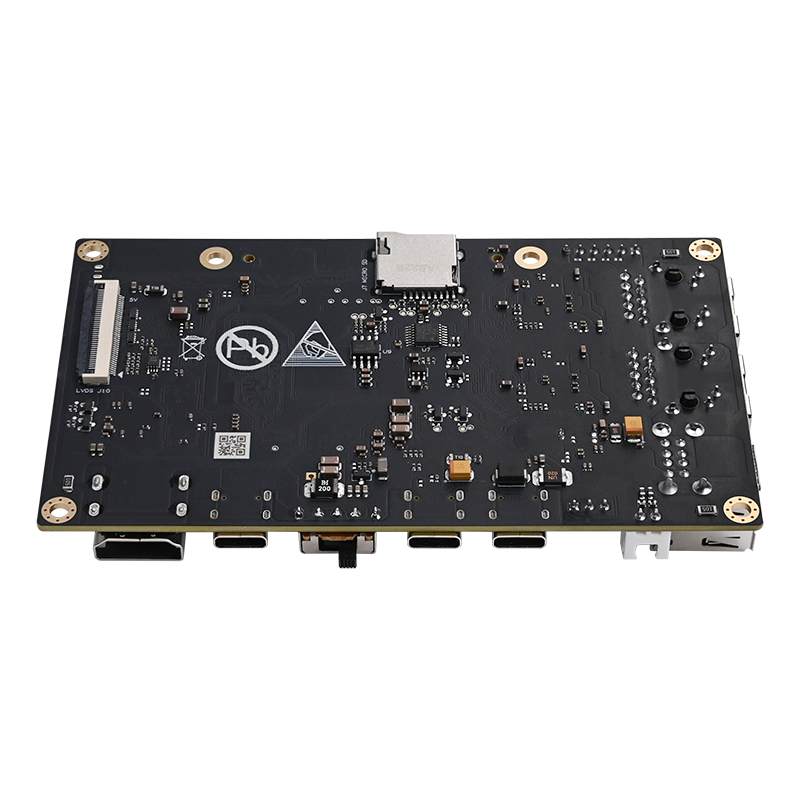

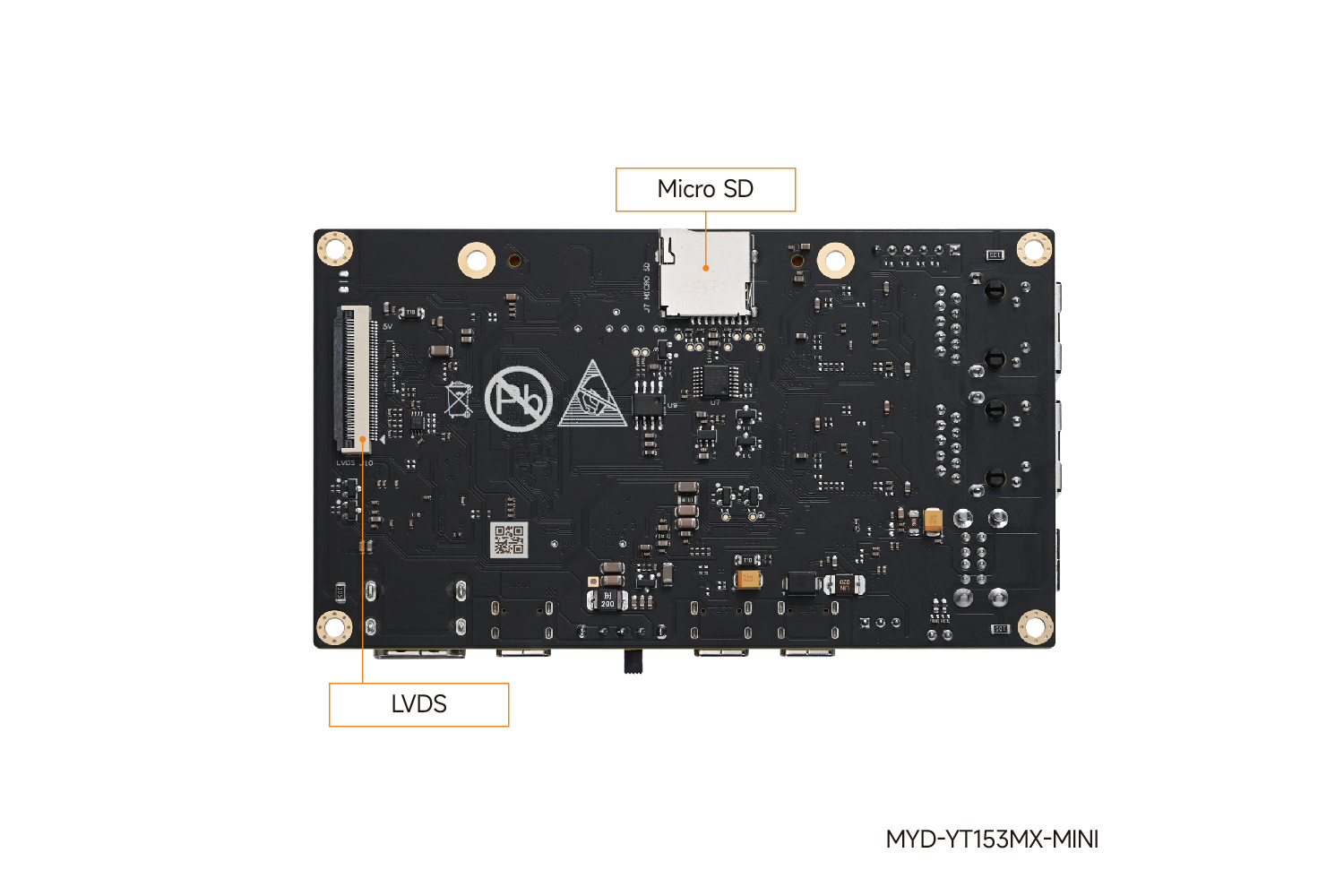

The MYD-YT153MX-MINI is designed as a compact and cost-effective variant of the MYD-YT153MX. This board features dual Gigabit Ethernet ports, two USB 2.0 Host interfaces, a USB 2.0 OTG interface, and a USB 2.0 debug port. It supports both HDMI and LVDS displays, along with a LINE OUT audio port. It has a microSD card slot and a 40-pin Raspberry Pi compatible expansion header, as well as an integrated Wi-Fi module and a JTAG interface for development. MYIR offers optional MY-LVDS070C 7-inch LVDS Display Module and the MY-WIREDCOM Expansion Module for the board.
Rich Development Resources
The MYC-YT153MX SOM and development board provide driver support for the Linux operating system, and provide user manuals, PDF schematics, peripheral drivers, BSP source code packages, development tools and other related materials; providing developers with a stable design reference and a complete software development environment.
Widely Used in Entry-level Embedded Systems
The Allwinner T153MX-BCX SOM from MYIR with its exceptional performance and broad application versatility, is extensively deployed for wide range of industries, including Power terminal,Industrial Robot,EV Charging Station,Industrial Control,Industrial Gateway,Industrial HMI.
Power terminal
Industrial Robot
EV Charging Station
Industrial Control
Industrial Gateway
Industrial HMI
Download
| File Name | Type | Size | Download Links |
|---|---|---|---|
| MYC-YT153MX Overview | 2.82 MB |
|
|
| MYD-YT153MX Overview | 2.6 MB |
|
|
| MYD-YT153MX-MINI Overview | 2.08 MB |
|
|
| 3D STEP File for MYC-YT153MX SOM.rar | rar | 1.27 MB |
|
Ordering
| SOMs | CPU | RAM | Flash | Working Temp. | Price | Ordering |
|---|---|---|---|---|---|---|
| MYC-YT153MX-512N512D-160-I | T153MX-BCX | 512MB DDR3 | 512MB Nand Flash | -40~85℃ | Coming soon |  |
| MYC-YT153MX-8E512D-160-I | T153MX-BCX | 512MB DDR3 | 8GB eMMC | -40~85℃ | Coming soon | |
| MYC-YT153MX-8E1D-160-I | T153MX-BCX | 1GB DDR3L | 8GB eMMC | -40~85℃ | Coming soon | |
| Development Boards | Packing List | With WiFi | Working Temp. | Price | Ordering | |
| MYD-YT153MX-MINI-512N512D-160-C | * One MYD-YT153MX-MINI Board (including MYC-YT153MX SOM) * One USB Type A to Type C cable * One Quick Start Guide | Yes | 0~70℃ | Coming soon | | |
| MYD-YT153MX-MINI-8E1D-160-C | Yes | 0~70℃ | Coming soon | | ||
| MYD-YT153MX-512N512D-160-I | *One MYD-YT153MX Board (including MYC-YT153MX SOM) *One USB Type A to Type C cable *12V/2A power adapter *One Quick Start Guide | Yes | -40~85℃ | Coming soon | | |
| MYD-YT153MX-8E512D-160-I | Yes | -40~85℃ | Coming soon | | ||
| MYD-YT153MX-8E1D-160-I | Yes | -40~85℃ | Coming soon | | ||
| Add-on Options | Description | Price | Ordering | |||
| MY-CAM003M | MIPI Camera Module (for MYD-YT153MX) | USD25 | | |||
| MY-WIREDCOM | RPI Module for extension of RS232/RS485/CAN (for MYD-YT153MX-MINI) | USD18 | | |||
| MY-LVDS070C | 7-inch LCD Module with capacitive touch screen | USD79 | | |||
