MYC-YM62LX
TI Sitara AM62Lx Processor based on up to 1.25GHz Dual Arm Cortex-A53 Cores
512MB/1GB DDR4, 8GB eMMC/512MB NAND FLASH, 4KB EEPROM
164-pin Expansion Interface with LCC Package
CE Certificated, Long-term Availability
Supports Linux 6.1
Supports Working Temperature Ranging from -40 to 85 Celsius
MYD-YM62LX Development Board
TI Third-party Partner
Low-cost & Performance Optimized AM62L, Dual-core Cortex-A53
The AM62Lx is a cost-effective, performance-optimized application processor family designed for Linux-based industrial applications. Built around scalable Arm Cortex-A53 cores, it balances processing power with advanced low-power management for energy-efficient operation. Key features include multimedia support for displays via DSI/DPI, an integrated ADC for direct sensor interfacing, and robust built-in security for IP protection. Its extensive connectivity options—including USB, MMC/SD, OSPI, CAN-FD, and ADC—enable flexible system-level integration.
SOM - MYC-YM62LX

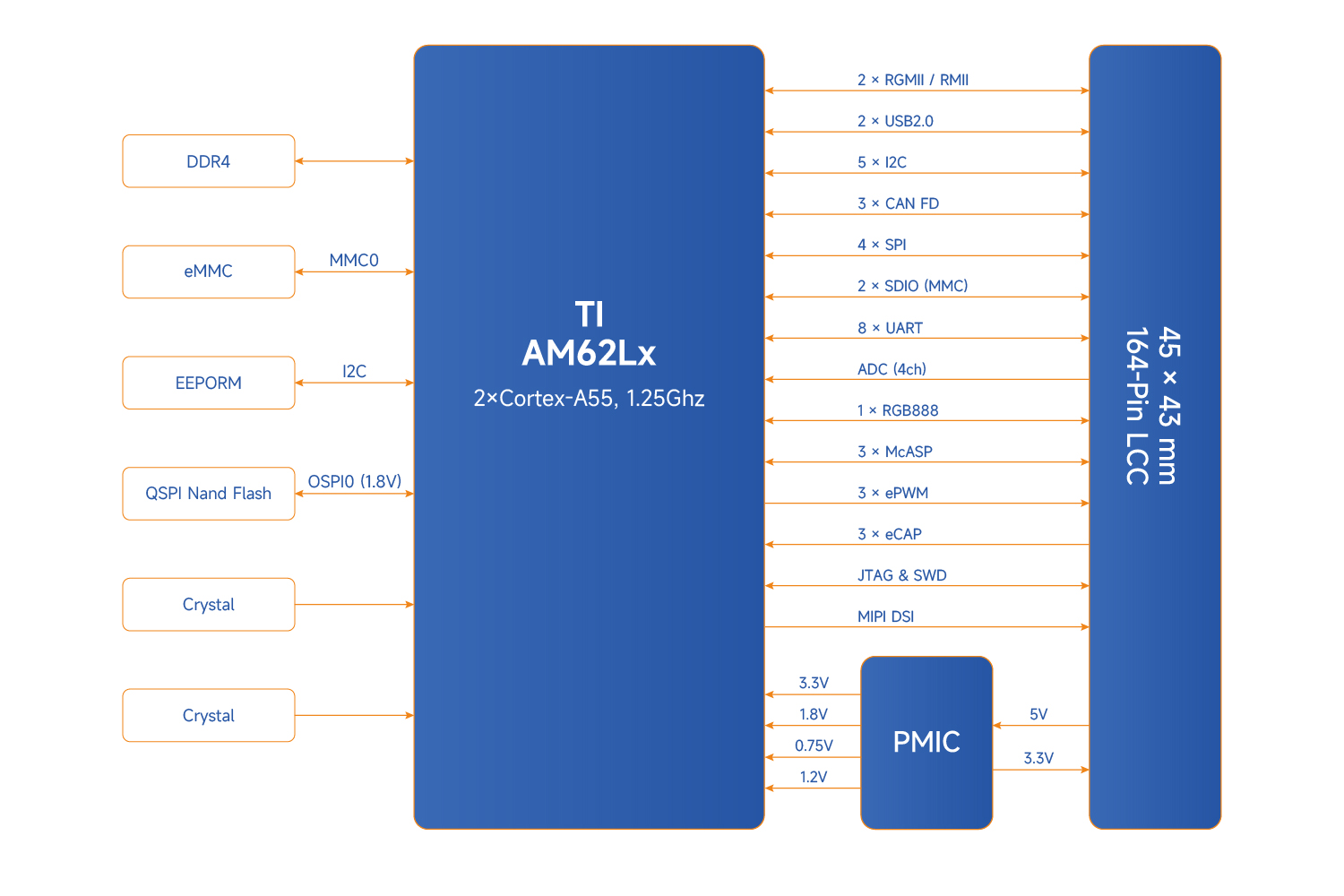

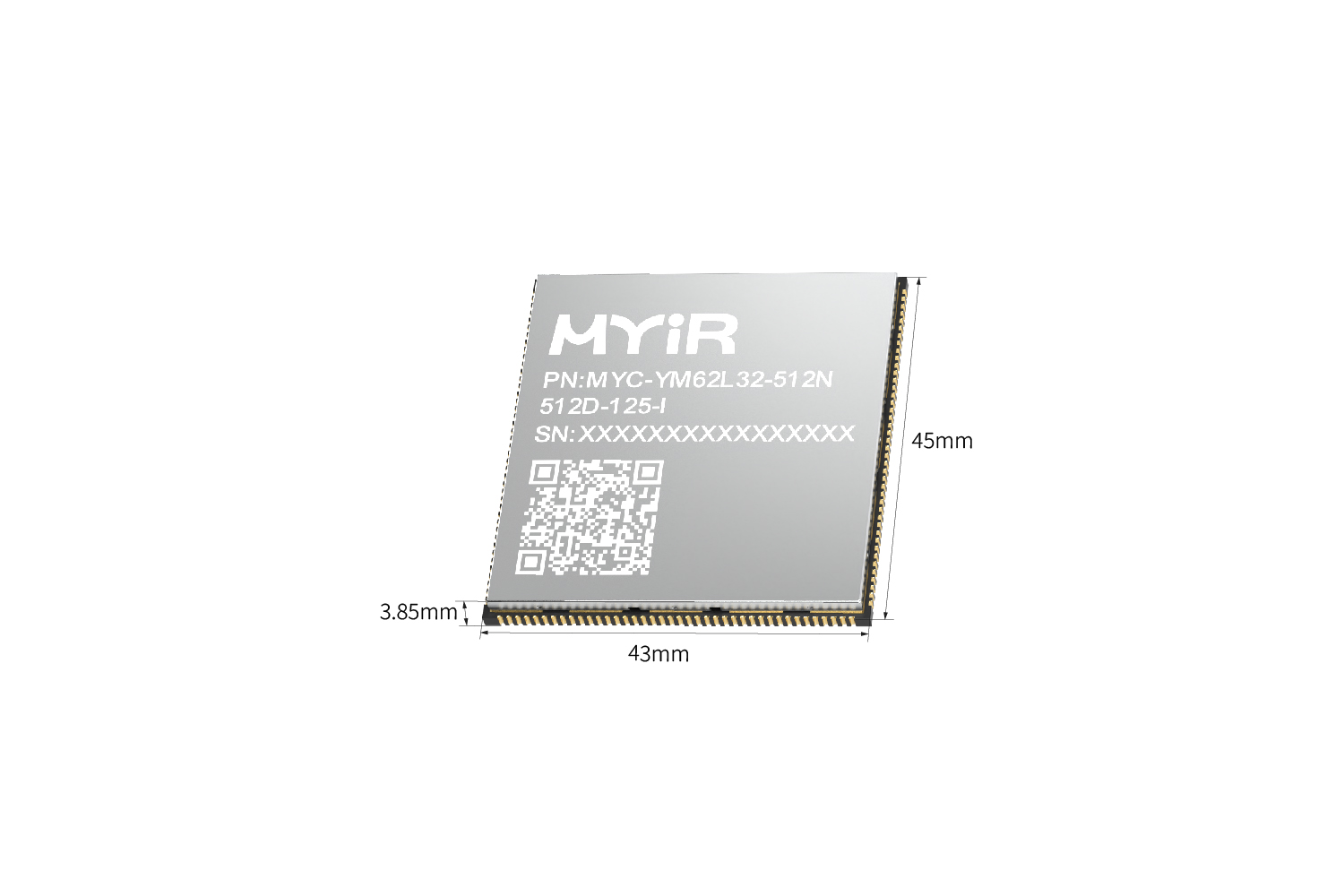

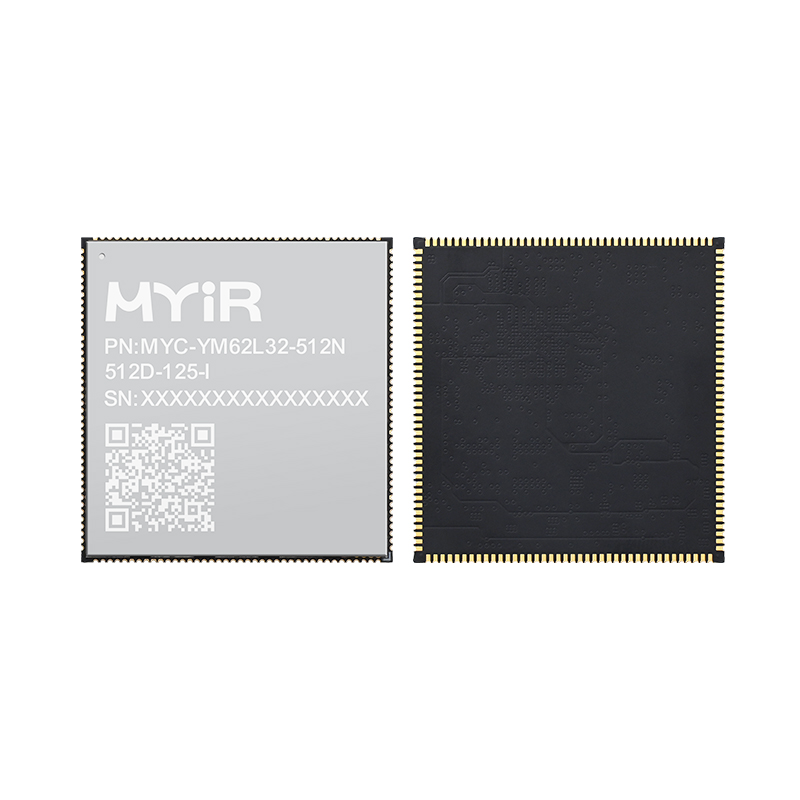

Measuring only 43mm by 45mm, the MYC-YM62LX is a compact System-on Module (SoM) based on the TI AM62Lx (AM62L32BOGHAANBR) microprocessor, which feature up to 1.25GHz one dual-core ARM Cortex-A53. In addition to the AM62Lx MPU, the MYC-YM62LX is equipped with 512MB/1GB DDR4 memory, 8GB eMMC/512MB NAND flash storage, and 4KB EEPROM. The expansion interface comes in a 164-pin LCC package, offering various communication and control interfaces such as RGMII, MIPI DSI, USB2.0, MMC, I2C, ADC, CANFD, UART, SPI, and GPMC communication bus, facilitating connection with other devices. MYIR provides complete software package for Linux running on the MYC-YM62LX to help users launch their development quickly and easily. The module is well-suited for IoT, HMI, and general applications with display functions, as well as some AIoT applications such as home appliance display and control, handheld POS, and building intercom.
Development Board - MYD-YM62LX

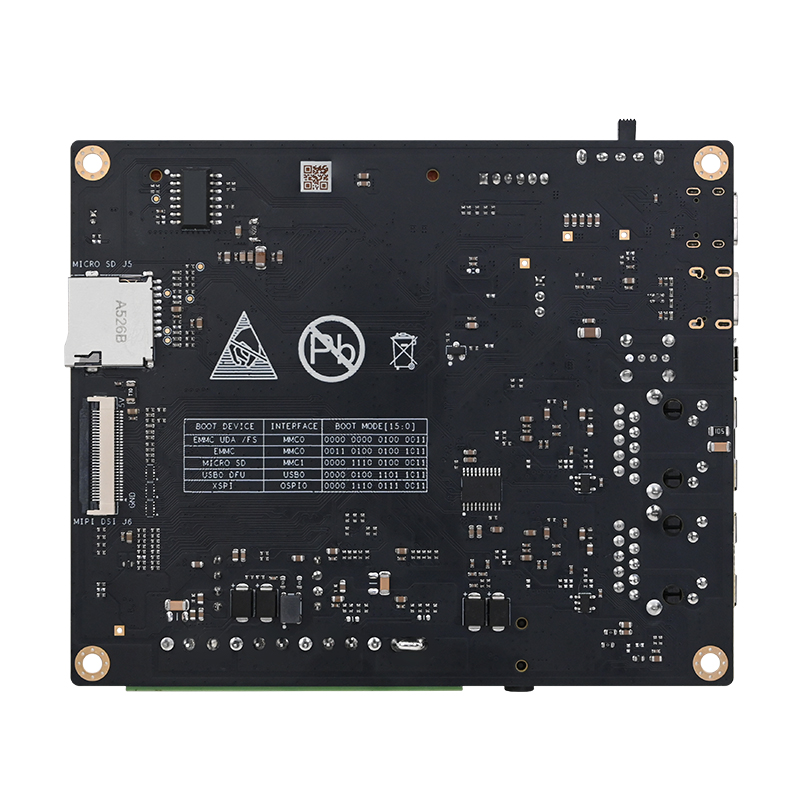

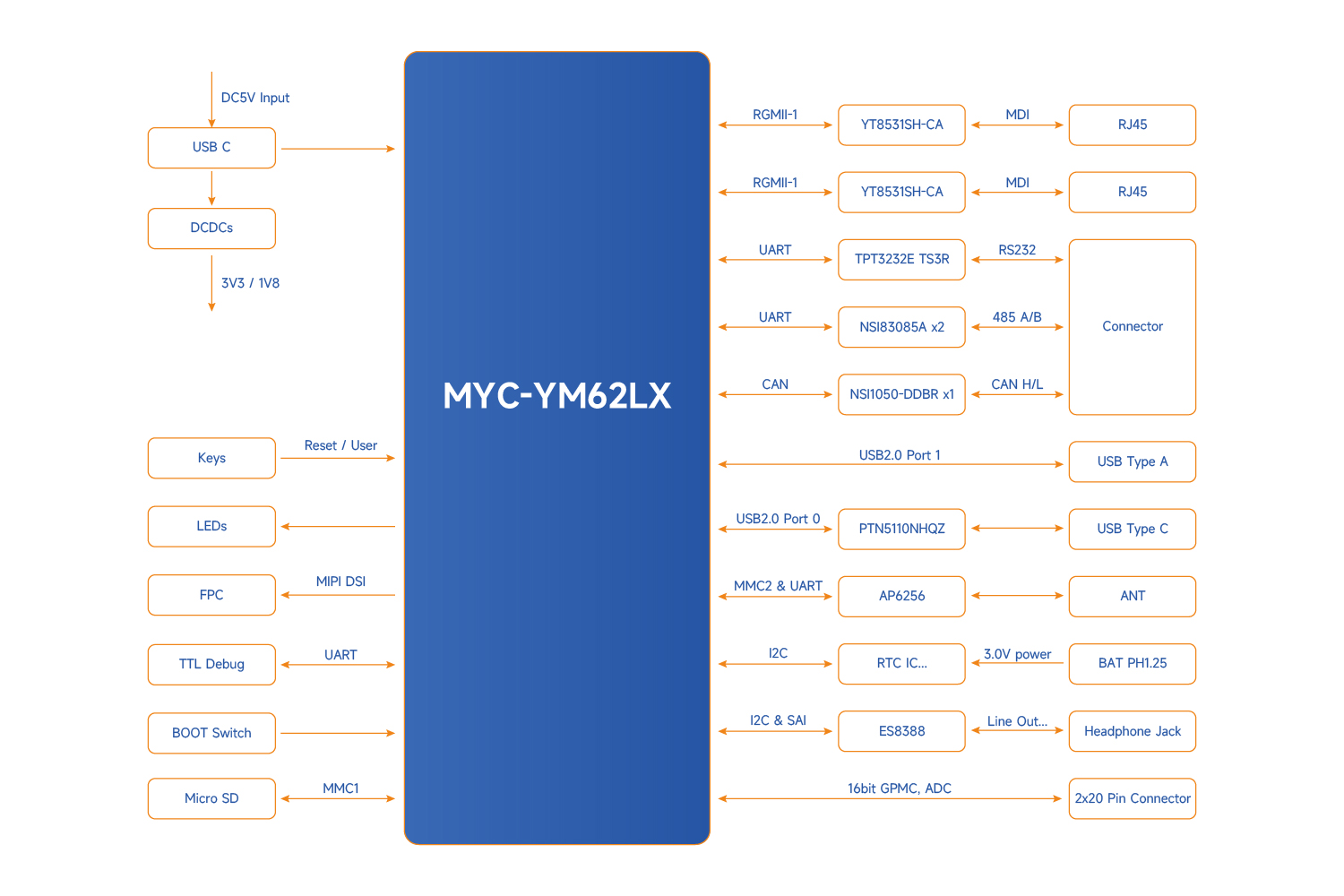

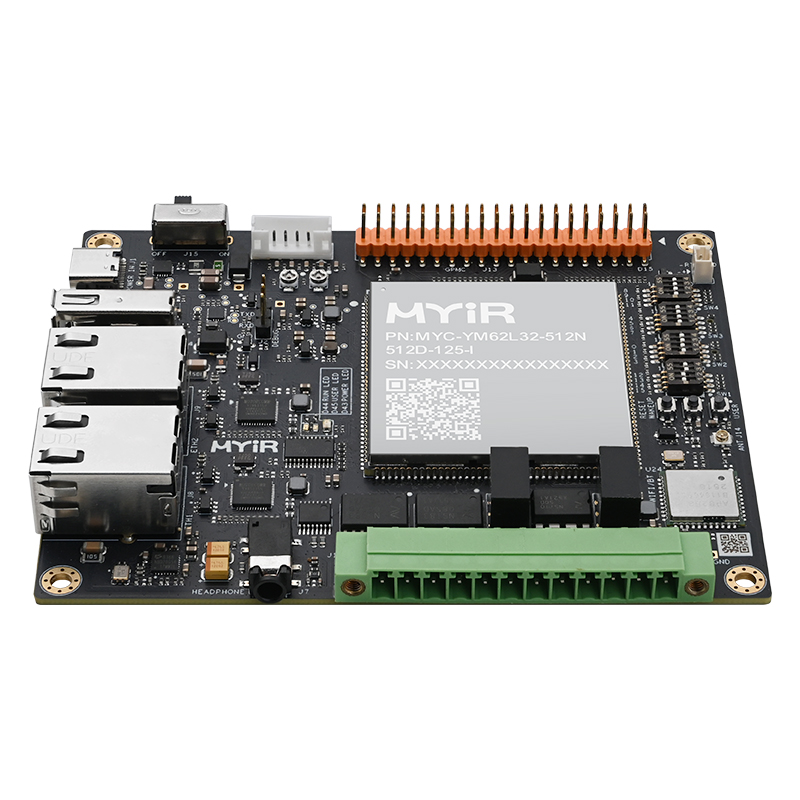

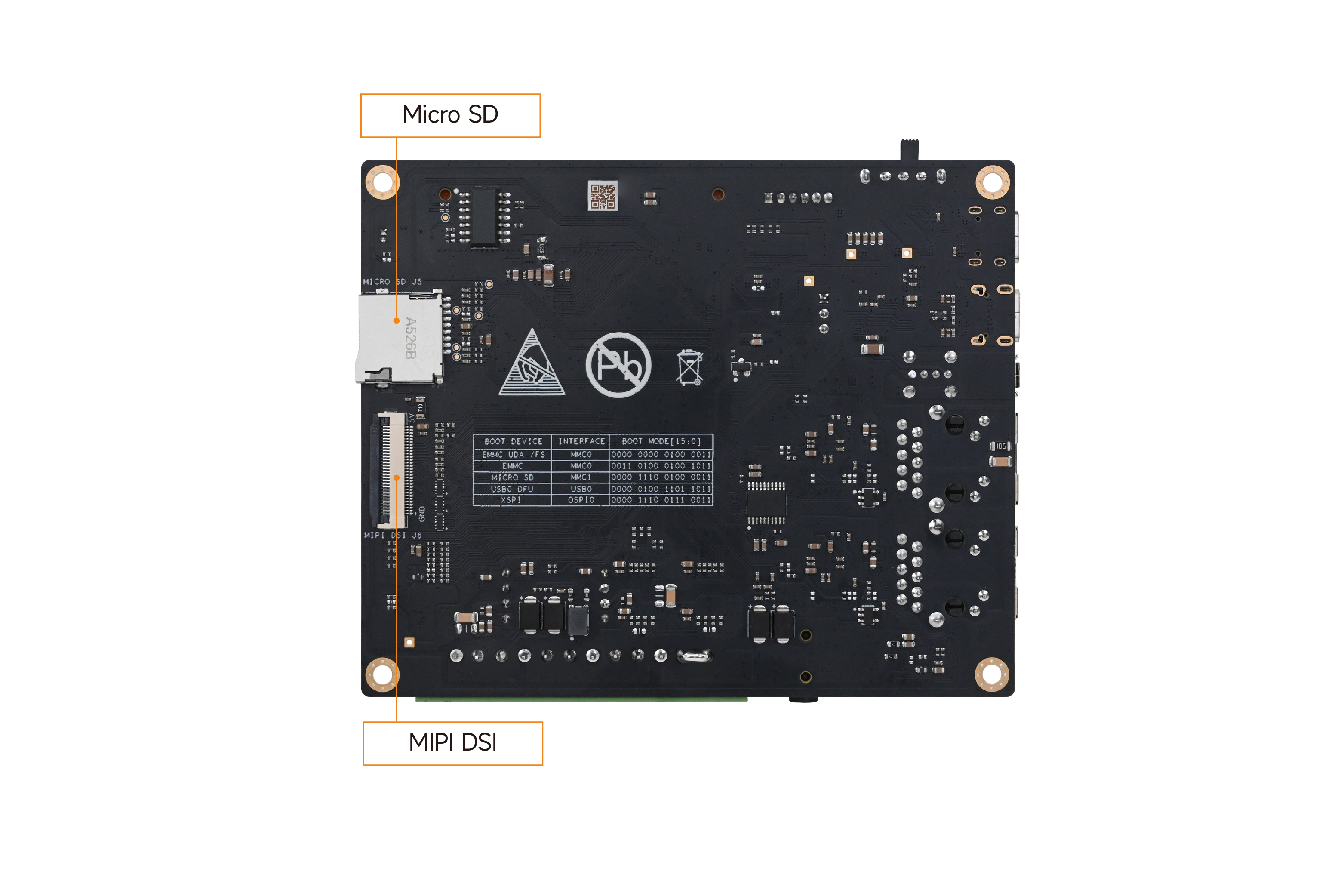

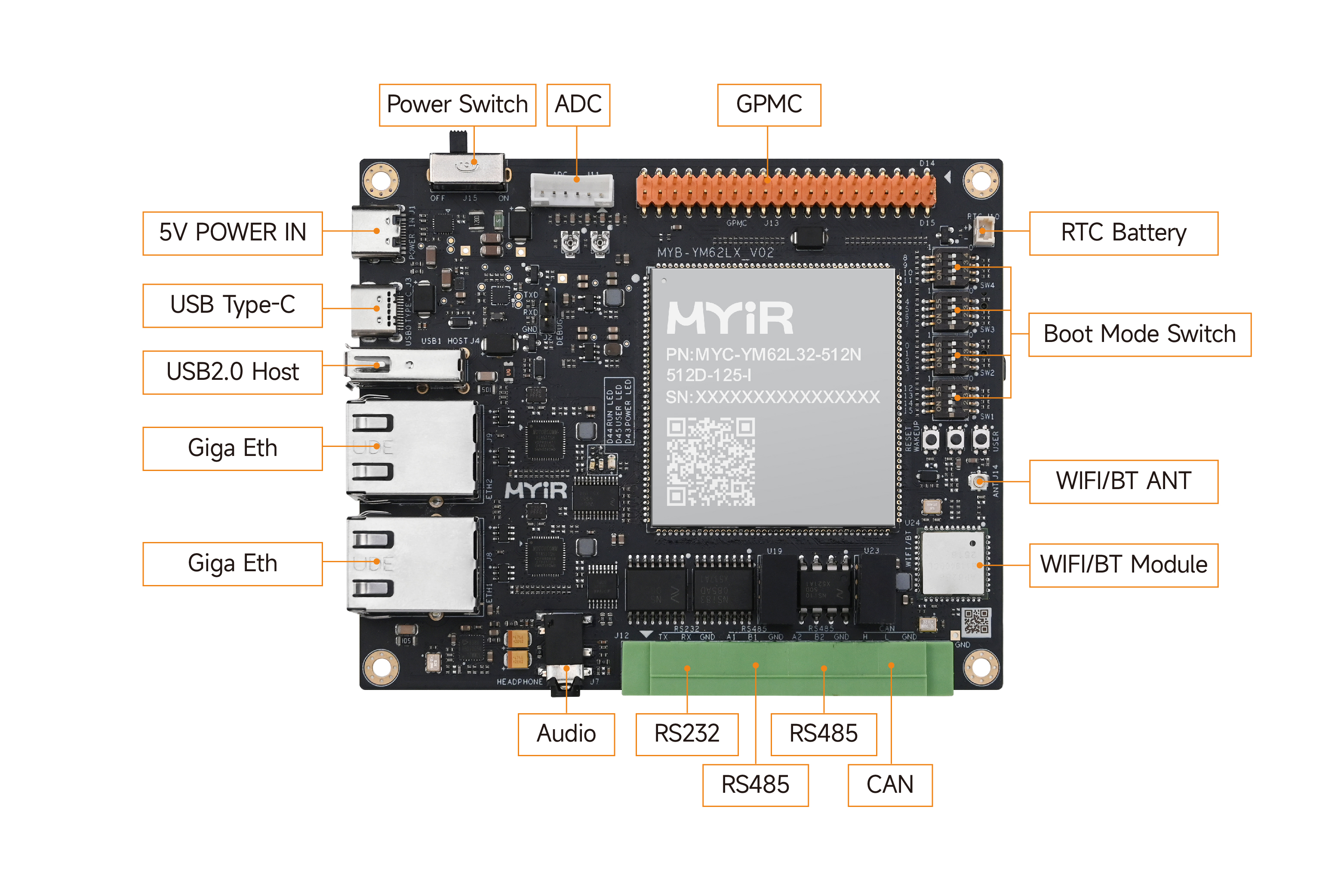

The MYD-YM62LX development board integrates the MYC-YM62LX System-On-Module (SOM) with a dedicated carrier board, connected via a 164-pin expansion interface. The carrier board features a double-sided component layout and delivers comprehensive connectivity, including dual Gigabit Ethernet, one USB 2.0 port, one USB 2.0 Host port, one RS232, two RS485, one CAN interface, and 4-channel ADC. It also supports WiFi/Bluetooth via an onboard module, MIPI-DSI display output, and audio input/output. For enhanced development flexibility, MYIR offers the MY-MIPI101C-V2 10.1-inch LCD Module as an optional accessory compatible with the MYD-YM62LX board, enabling a streamlined and effective development experience.
The MYD-YM62LX is ready to run Linux and is provided with complete software package as well as detailed documentations. As a comprehensive and reliable reference design, the MYD-YM62LX provides an ideal foundation for developing solutions based on the TI AM62Lx processor family.

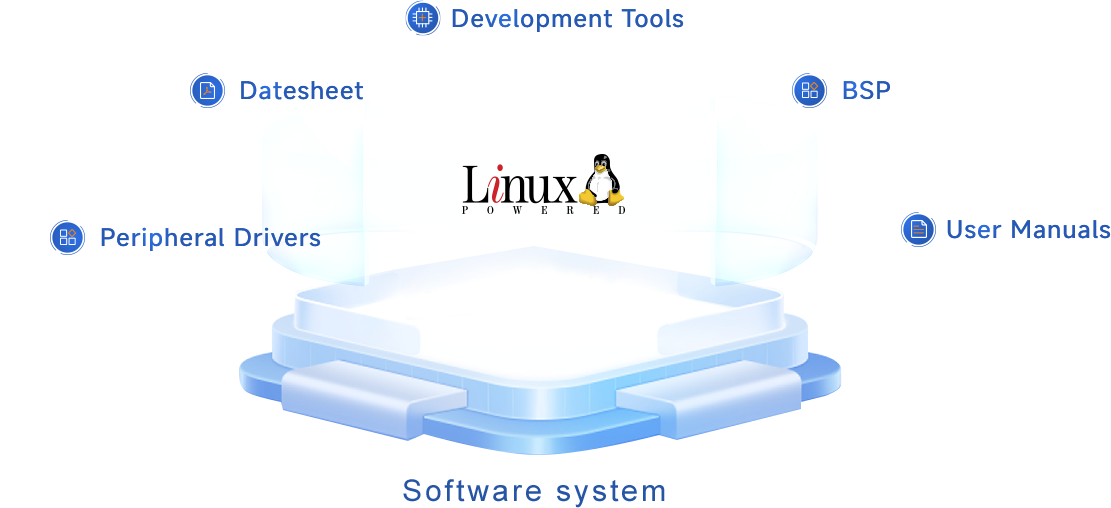

Rich Development Resources
The MYC-YM62LX SOM and development board are fully compatible with Linux and comes with a complete set of software packages. To assist clients in speeding up their projects, the source code for the kernel and various peripheral drivers is included.
Widely Used in Entry-level Embedded Systems
Industrial HMI
Energy Power
Industrial Display and Control
EV Charging Pile
Medical Devices
Building Automation
Download
| File Name | Type | Size | Download Links |
|---|---|---|---|
| MYC-YM62LX Overview | 997.7 KB |
|
|
| MYD-YM62LX Overview | 1.04 MB |
|
|
| 3D STEP File for MYC-YM62LX SOM.zip | zip | 7.2 MB |
|
Ordering
| SOMs | CPU | RAM | Flash | Working Temp. | Price | Ordering |
|---|---|---|---|---|---|---|
| MYC-YM62L32-8E1D-125-I | AM62L32BOGHAANBR | 1GB DDR4 | 8GB eMMC | -40~85℃ | coming |  |
| MYC-YM62L32-512N512D-125-I | AM62L32BOGHAANBR | 512MB DDR4 | 512MB Nand Flash | -40~85℃ | coming | |
| Development Boards | Packing List | With WiFi | Working Temp. | Price | Ordering | |
| MYD-YM62L32-8E1D-125-I | * One MYD-YM62LX Board (including MYC-YM62LX SOM) * One USB to TTL cable * One USB Type A to Type C cable * One Quick Start Guide | Yes | -40~85℃ | coming | | |
| MYD-YM62L32-512N512D-125-I | Yes | -40~85℃ | coming | | ||
| Add-on Options | Description | Price | Ordering | |||
| MY-MIPI101C-V2 | MY-MIPI101C-V2 10.1-inch LCD Module | coming soon | | |||
