MYD-LT527-GK-B
Boosting IPC & Edge Computing Capabilities with T527
Up to 1.8GHz Allwinner T527 Octa-core ARM Cortex-A55 MPU
Up to 6 TOPs NPU, G57 MC1 GPU
4GB LPDDR4, 32GB eMMC, 32Kbit EEPROM
1x USB 3.0, 4x USB 2.0, 2x CAN, RS232, 2x RS485, Micro SD Card Slot
2x Gigabit Ethernet, WiFi/Bluetooth, PCIe Slot for 4G Module
Supports Mini-DP and HDMI for High-resolution Displays, along with Audio Input/Output Interface
Supports Linux and Ubuntu OS
Rugged and Fanless Enclosure Design
Allwinner T527 Multi-core high-performance MPU with up to 2 TOPs NPU
Allwinner T527 high-performance processor is founded on an eight-core Cortex-A55 + HiFi4 DSP + RISC-V multi-core heterogeneous industrial-grade processor, with selectable AI2 Tops models. LPDDR4/LPDDR4x Max. 4GB 32bits; It supports H.265 4K@60fps and H.264 4K@30fps video decoding, H.264 1080P@60fps video encoding, and a rich multimedia interface.
IPC - MYD-LT527-GK-B

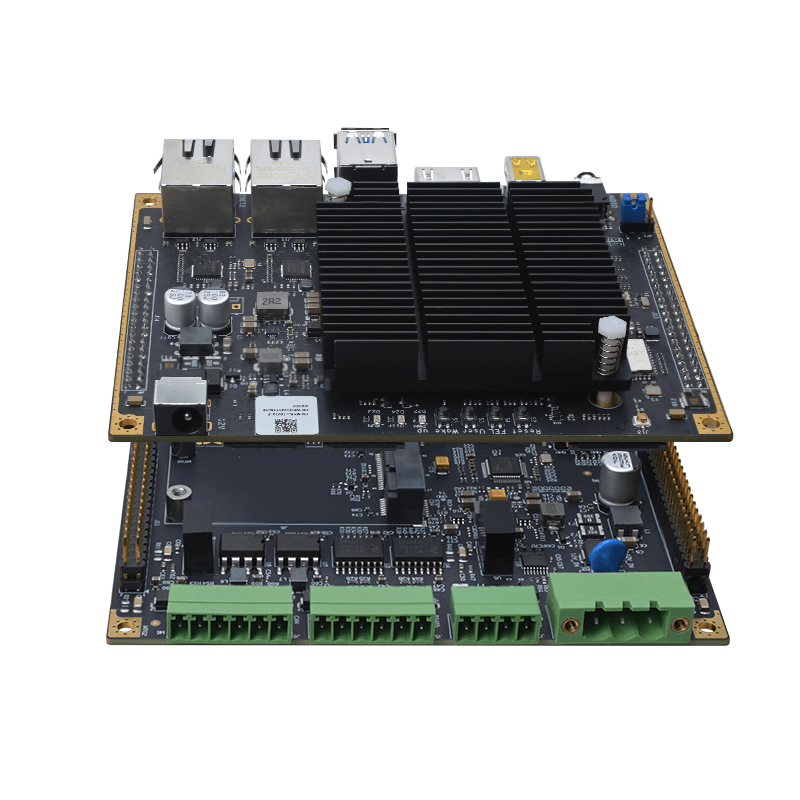

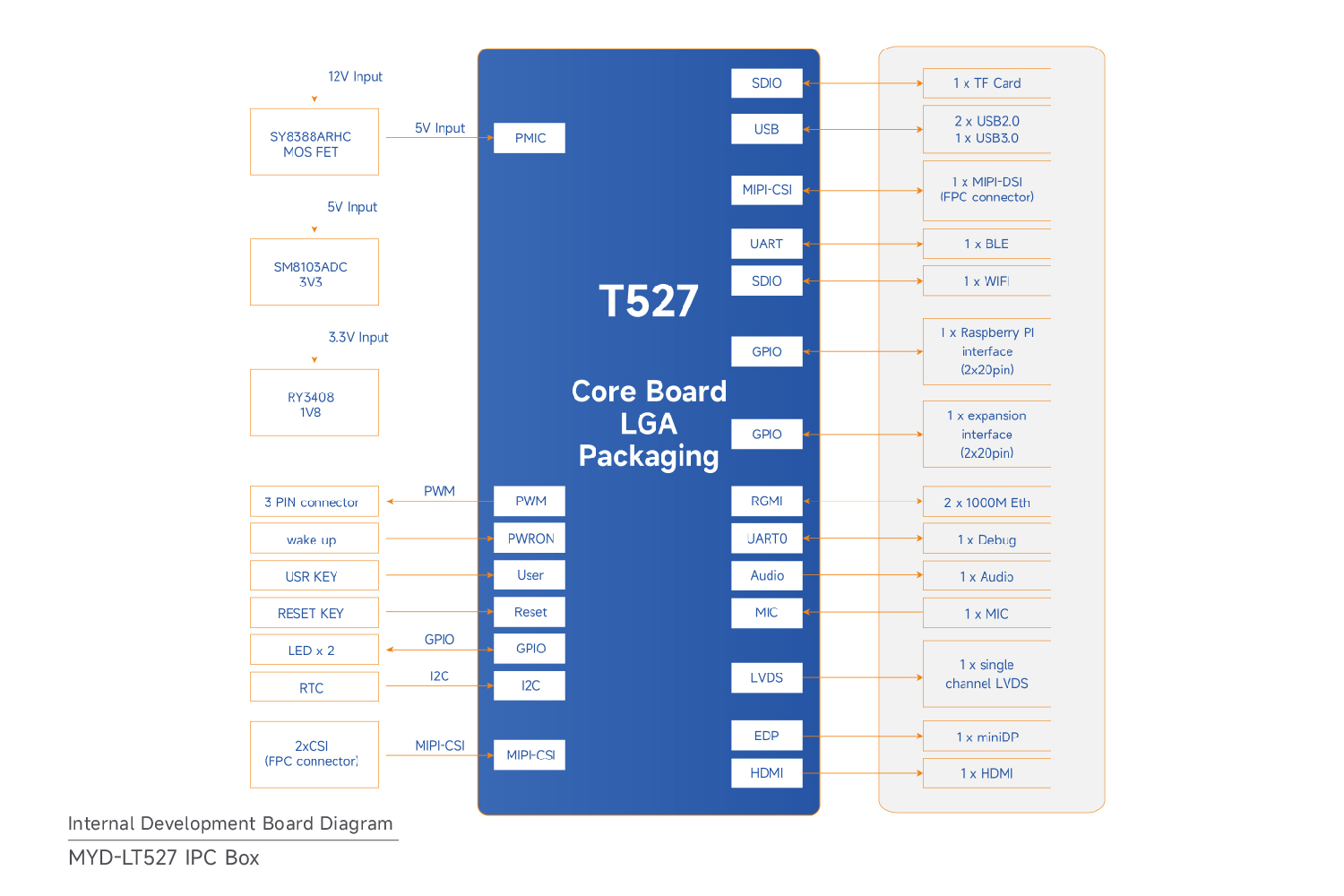

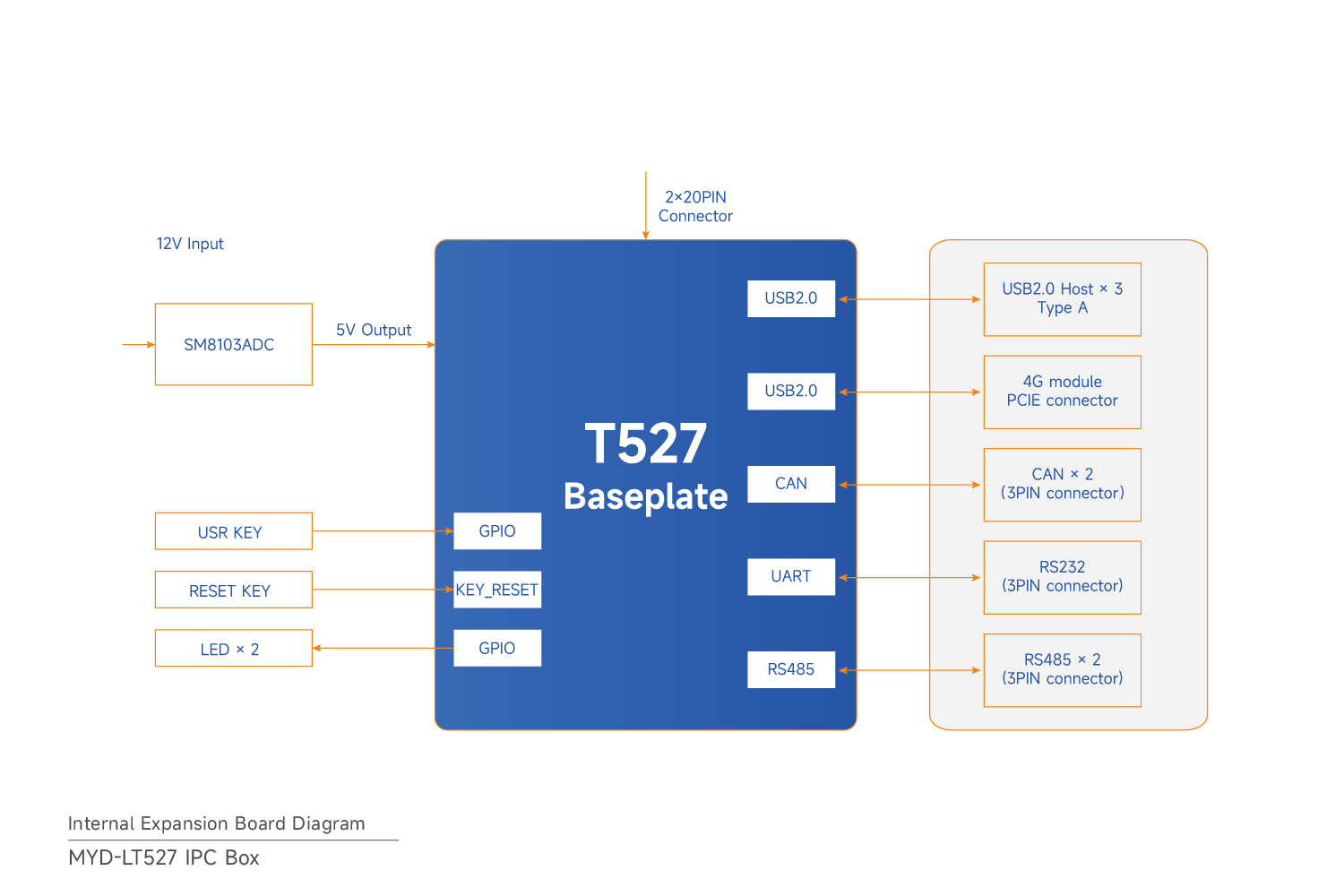

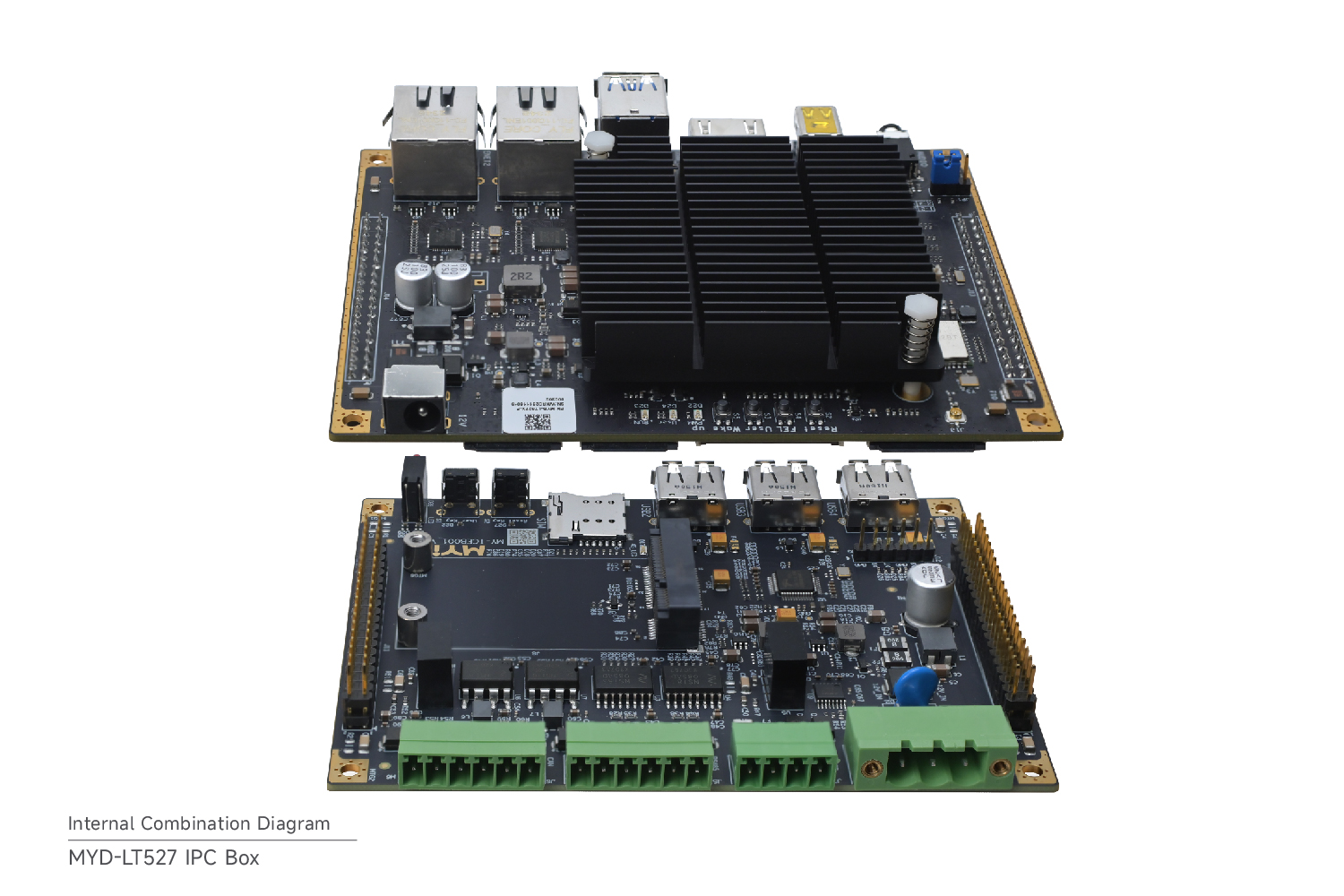

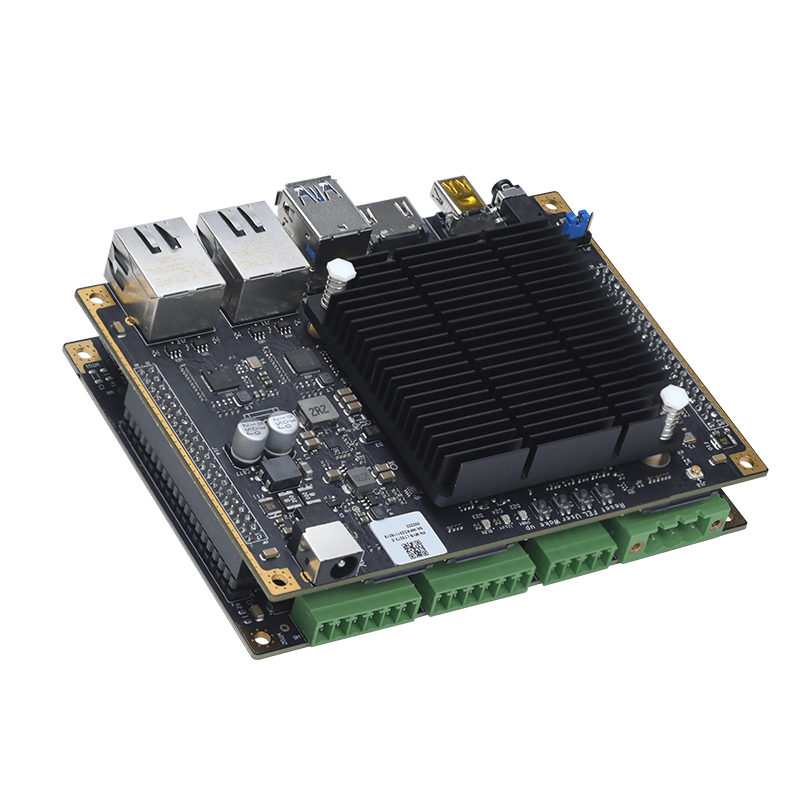

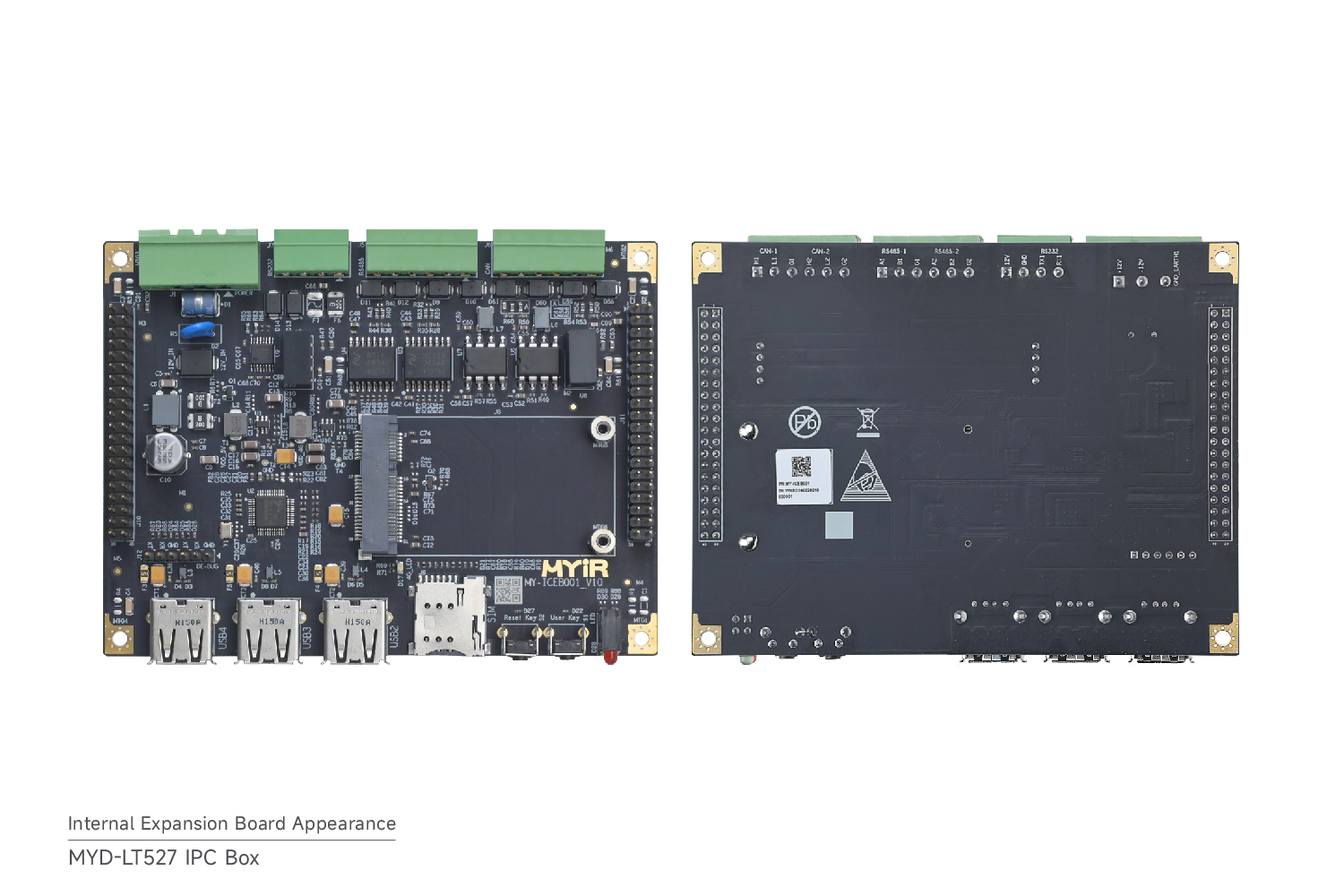

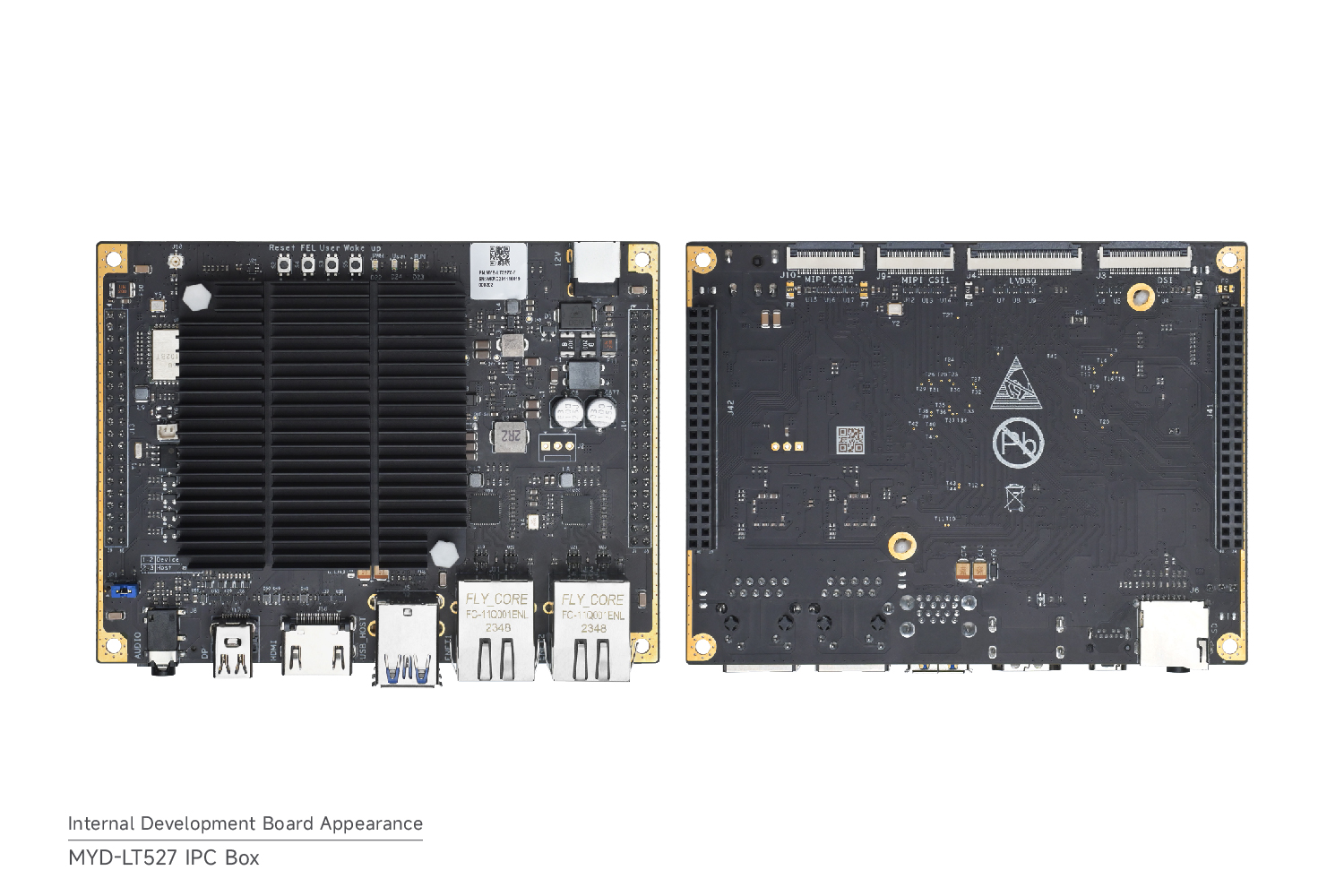

The MYD-LT527-GK-B Industrial PC (IPC) Box offers a versatile solution, ideal for edge computing applications. It combines the MYD-LT527 development board with the MY-ICEB001 expansion board inside a rugged, fanless enclosure, powered by the Allwinner T527 SoC. This SoC boasts an Octa-core ARM Cortex-A55 CPU operating at up to 1.8GHz and includes a 2TOPs NPU for enhanced performance. The device is equipped with dual Gigabit Ethernet ports, four USB 2.0 interfaces, one USB 3.0 port, two RS232, two RS485, two CAN ports, and a microSD card slot. Additionally, it features integrated WiFi/Bluetooth for wireless communication and supports 4G LTE connectivity via an onboard USB-based Mini-PCIe interface. For display and audio, it provides HDMI and Mini DisplayPort (Mini DP) outputs. MYIR offers SDKs for Linux and Ubuntu operating systems, including u-boot, kernel, driver source code, and related development tools. This IPC Box is well-suited for a wide range of applications, such as industrial controllers, edge computing, integrated gateways, power measurement and control terminals, new energy management servers, artificial intelligence, and more.
Rich Connectivity Interfaces

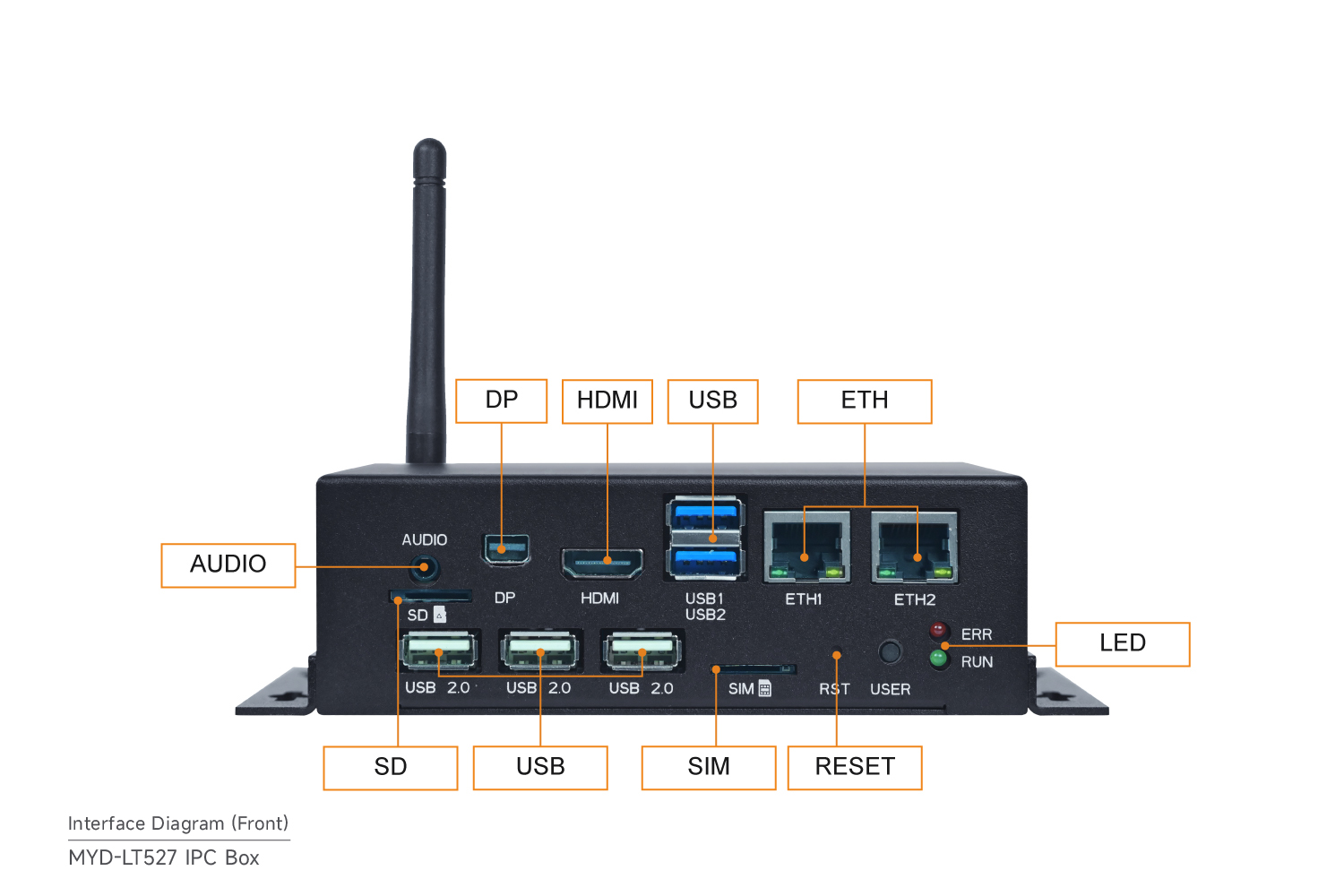

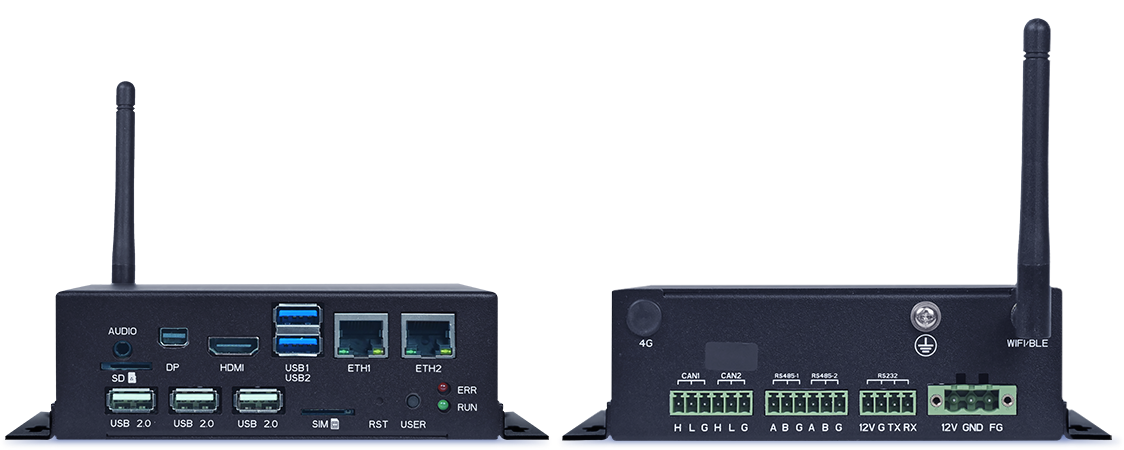

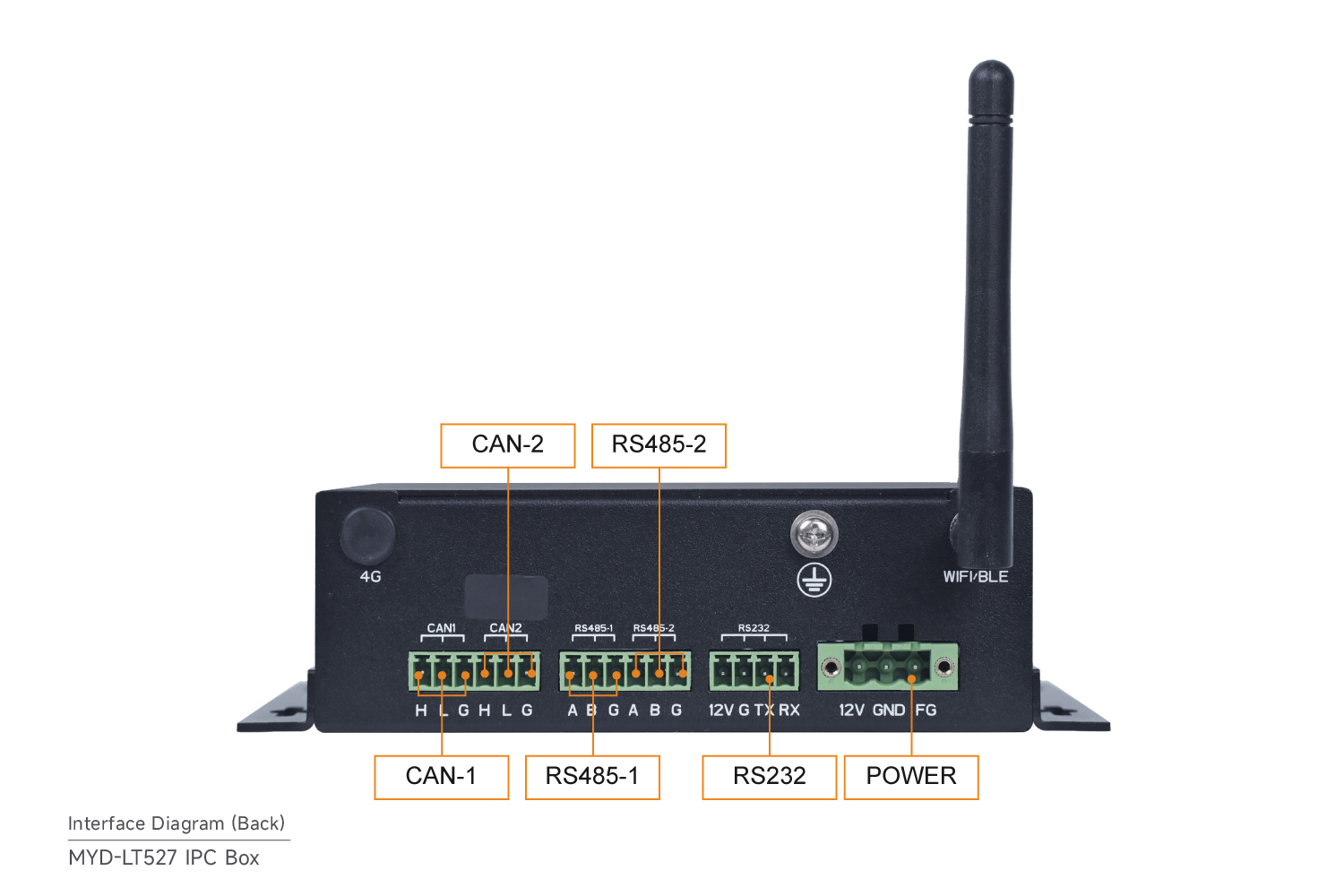

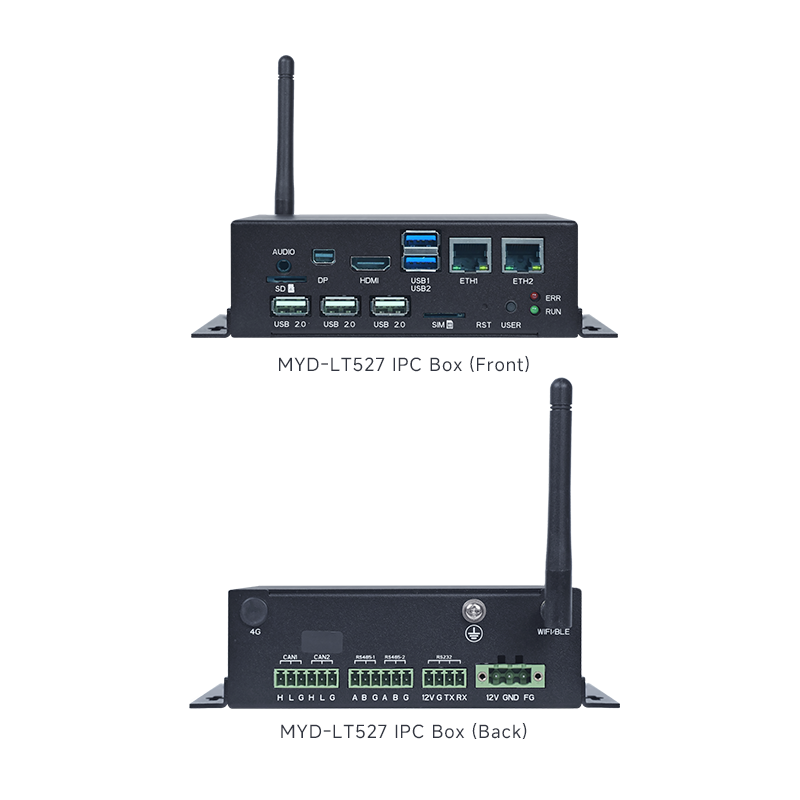

The MYD-LT527-GK-B IPC Box features versatile communication capabilities, seamlessly integrating Ethernet, 4G, and WiFi connectivity. It further enhances industrial applications with robust interfaces, including CAN, RS485, and RS232, as well as USB3.0, USB2.0. It caters to multimedia needs through MiniDP and HDMI display interfaces, an audio port, and an expansive array of specialized connectivity solutions.
Versatile Application Scenarios
The MYD-LT527-GK-B IPC Box can be extensively applied in industrial PC, edge computing, integrated gateways, power measurement and control terminals, new energy management servers, artificial intelligence, and more other applications.
Industrial PC (IPC)
Edge Computing
Gateways
Download
| File Name | Type | Size | Download Links |
|---|---|---|---|
| MYD-LT527-GK-B Overview | 1.08 MB |
|
Ordering
| IPC | Packing List | RAM | Flash | Price | Ordering | |
|---|---|---|---|---|---|---|
| MYD-LT527MN-32E4D-180-I-GK-B | * One MYD-LT527-GK-B IPC Box * One Quick Start Guide * One WiFi antenna * Phoenix Connector | 4GB LPDDR4 | 32GB eMMC | USD169 |  | |
| Development Boards | Packing List | RAM | Flash | Price | Ordering | |
| MYD-LT527MN-32E4D-180-I-GK | * One MYD-LT527 Board * One MY-ICEB001 Expansion Board * One USB cable * One 12V/3A Power adapter * One Quick Start Guide | 4GB LPDDR4 | 32GB eMMC | USD149 | | |
