MYC-JR3576
Rockchip RK3576 SMARC SoM with Octa-Core CPU, 6 TOPS NPU & Rich I/O for Edge AI
Rockchip RK3576 (J) Octa-core Arm Processor with Quad Cortex-A72 Cores at 2.2 GHz and Quad Cortex-A53 Cores at 2.0 GHz
Neural Processing Unit (NPU) Operating at Up to 6 TOPS, 3D GPU
Supports Up to 4K@120fps High Frame Rate Video Decoding
4GB/8GB LPDDR5, 32GB/64GB eMMC, 32Kbit EEPROM
Onboard Wi-Fi 6 & BT 5.4 Module
SMARC 2.2 314-pin Expansion Connector
Supports Working Temperature Ranging from 0 ~ +70 Celsius and -40 ~ +85 Celsius
Linux and Android BSP, Yocto Support
MYD-JR3576 Development Board
Rockchip Approved Partner

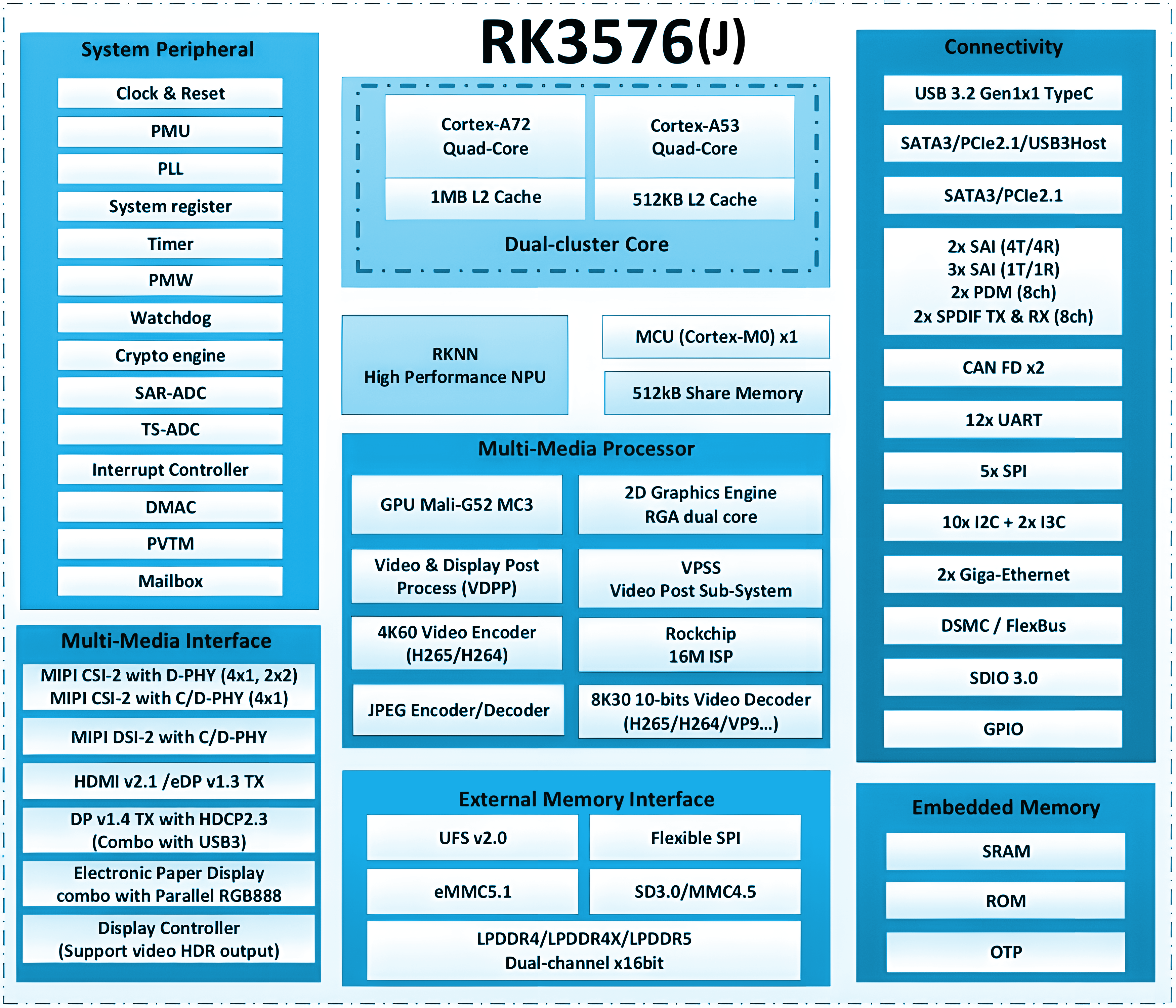

RK3576: Octa-Core Edge AI Processor with 8K Multimedia
The Rockchip RK3576 applications processor is offered in two grades: the commercial RK3576 and the industrial RK3576J. The processor is built on an octa-core 64-bit CPU combining 4x Cortex-A72 and 4x Cortex-A53 cores with a Cortex-M0 real-time core, and integrates a 6 TOPS NPU for edge AI inference and an Arm Mali-G52 MC3 3D GPU. Its multimedia engine supports 8K@30fps / 4K@120fps video decoding (H.265, VP9, AVS2, AV1) and 4K@60fps encoding (H.265, H.264), together with a rich set of display and camera interfaces including HDMI, eDP, DP, MIPI-DSI, Parallel RGB and MIPI-CSI with 16M ISP. The processor also provides a comprehensive peripheral set covering dual Gigabit Ethernet, PCIe 2.1, USB 3.2, SATA3, DSMC/Flexbus high-speed interfaces, CAN FD, UART.

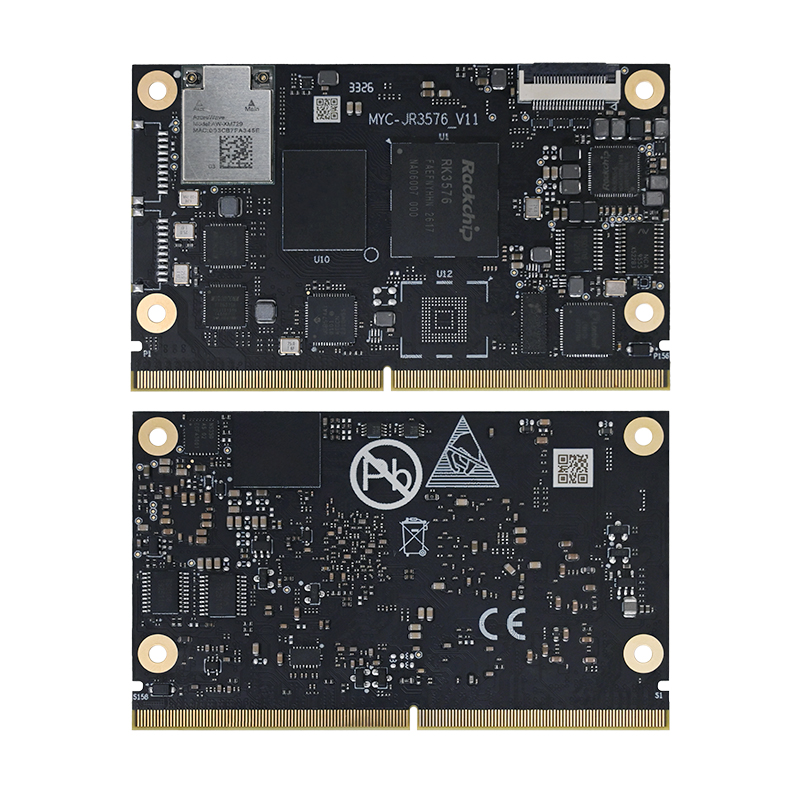

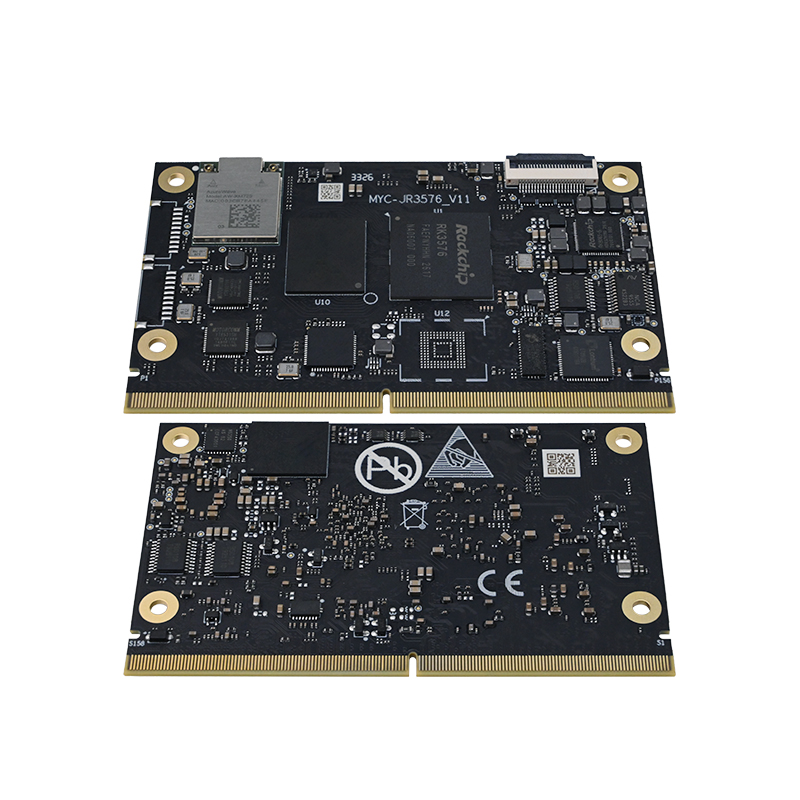

SOM - MYC-JR3576
Measuring 82mm x 50mm, the MYC-JR3576 is a high-performance Edge AI SMARC System-on-Module (SOM) powered by the Rockchip RK3576/RK3576J processor. It features an octa-core 64-bit CPU that combines four Cortex-A72 cores (up to 2.2 GHz) and four Cortex-A53 cores (up to 2.0 GHz) for application processing, a Cortex-M0 core for real-time control, and a 6 TOPS NPU plus Arm Mali-G52 MC3 3D GPU for edge AI inference and graphics.
The MYC-JR3576 SOM integrates LPDDR5 (4GB/8GB), eMMC (32GB/64GB), and 32Kbit EEPROM for flexible storage options, along with an onboard Wi-Fi 6 and BT 5.4 module, a Gigabit Ethernet PHY, and a USB 3.0 HUB. Security is reinforced by an independent TPM 2.0 chip and the built-in RK3576 security subsystem, while the onboard PMIC delivers efficient power management. The 314-pin SMARC 2.2 connector delivers versatile expansion options, including dual Gigabit Ethernet, multi-display outputs (HDMI, DP, MIPI-DSI/LVDS), three MIPI-CSI camera inputs, PCIe/SATA, USB 3.2/USB 2.0, and CAN FD, along with a full suite of UART, SPI, I2C, PWM, SDIO, SAI, and SARADC interfaces for peripheral integration.
MYIR provides a complete software package including Android 15 and Yocto Linux (kernel 6.1) BSP, open-source drivers, and documentation to accelerate time-to-market. The module is available in commercial (0 to +70 ℃) and industrial (-40 to +85 ℃) temperature grades, making it ideal for edge computing, robotics, industrial control, medical endoscopy, construction machinery, and commercial/industrial energy storage.

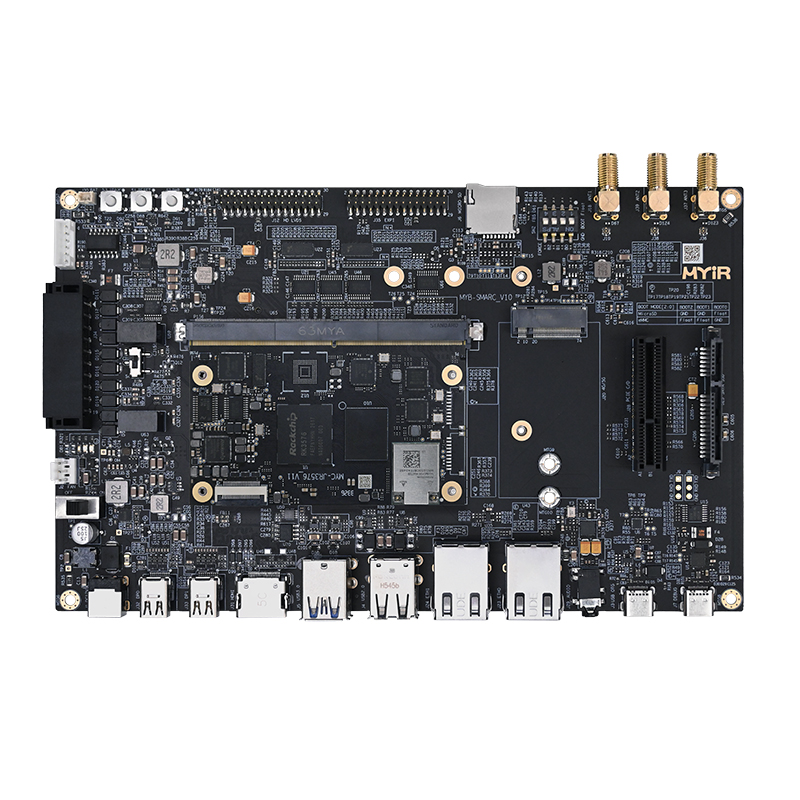

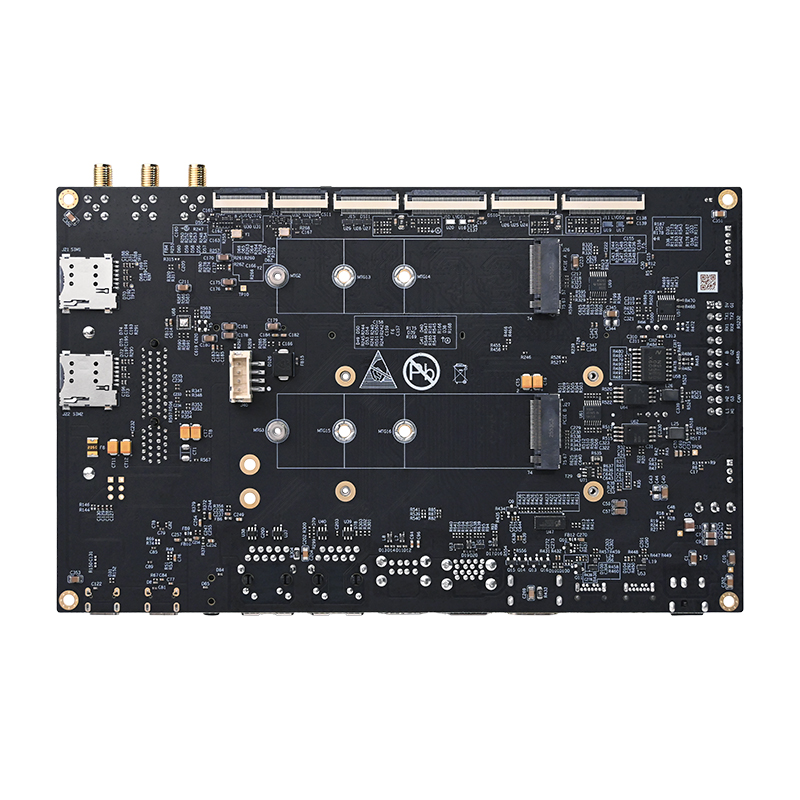

Development Board - MYD-JR3576
The MYD-JR3576 development board combines the MYC-JR3576 SOM with a carrier board via a 314-pin SMARC connector. The carrier board delivers extensive evaluation interfaces, including dual Gigabit Ethernet, a mini-PCIe socket with dual micro-SIM support for 4G/5G modules, M.2-2280 PCIe for NVMe SSD, MicroSD, multiple USB ports (2× USB 3.0 Host, 1× USB 2.0 Host, and 1× USB 2.0 OTG), and dual CAN FD, RS485 & RS232 shared on a single Phoenix connector. For display and imaging, it supports HDMI, MIPI-DSI/LVDS, and DisplayPort (DP), plus two MIPI-CSI camera inputs and audio I/O. This rich I/O portfolio makes it an ideal platform for rapid prototyping in edge AI, industrial control, and robotics applications.
To enhance development flexibility, MYIR offers optional display and camera accessories for the MYD-JR3576: the MY-MIPI101C-V2 10.1-inch MIPI display, the MY-LVDS070C 7-inch LVDS display, and the MY-CAM003M (5MP) / MY-CAM005M (13MP) MIPI-CSI camera modules, providing a streamlined, ready-to-use development experience.
Rich Development Resources
The MYC-JR3576 SOM and development board offer driver support for Linux 6.1 and Android 15. And come with manuals, PDF schematics, peripheral drivers, BSP source code packages, development tools, and other related materials. This comprehensive support provides developers with a stable design reference and a complete software development environment.
Rich Application Scenarios
The RK3576 processor stands out for its high performance, low power consumption and reasonable Sample Price, and is suitable for commercial display, smart home and other fields. Its excellent performance, display and image processing capabilities, computing and storage performance and power consumption management have become the preferred solution for users.
Construction machinery
Edge computing
Industrial control
Industrial energy storage
Medical endoscopy
Robotics
Download
| File Name | Type | Size | Download Links |
|---|---|---|---|
| MYC-JR3576 | 1.31 MB |
|
|
| MYD-JR3576 Overview | 2.23 MB |
|
|
| 3D STEP File for MYC-JR3576 SOM.rar | rar | 2.61 MB |
|
Ordering
The sample price applies only to the first 2 pieces per customer. For any quantity beyond 2 pieces, the sample price no longer applies. Please contact us for pricing.
| SOMs | CPU | RAM | Flash | Working Temp. | Sample Price | Ordering |
|---|---|---|---|---|---|---|
| MYC-JR3576-64E8D-220-C | RK3576 | 8GB LPDDR5 | 64GB eMMC | 0~70℃ | USD209 |  |
| MYC-JR3576J-32E4D-160-I | RK3576J | 4GB LPDDR5 | 32GB eMMC | -40~85℃ | USD192 | |
| Development Boards | Packing List | CPU | Working Temp. | Sample Price | Ordering | |
| MYD-JR3576-64E8D-220-C | * One MYD-JR3576 Board (includes MYC-JR3576 SOM) * One 12V/2A Power Adapter * One USB Type-A to Type-C cable * One Quick Start Guide * One Wi-Fi IPEX antenna * One Wi-Fi rod antenna | RK3576 | 0~70℃ | USD293 | | |
| MYD-JR3576J-32E4D-160-I | RK3576J | -40~85℃ | USD279 | | ||
| Add-on Options | Description | Sample Price | Ordering | |||
| MY-LVDS070C | MY-LVDS070C 7-inch LVDS Display Module with Capacitive Touch Screen | USD79 | | |||
| MY-CAM003M | MY-CAM003M MIPI Camera Module | USD25 | | |||
| MY-CAM005M | MY-CAM005M MIPI Camera Module | USD25 | | |||
| MY-MIPI101C-V2 | MY-MIPI101C-V2 10.1-inch MIPI LCD Module with Capacitive Touch Screen | USD99 | | |||
