MYC-JMX95X
NXP i.MX95 SMARC System-On-Module for Industrial Edge AI
NXP i.MX95 based on 1.8GHz Six Cortex-A55 cores, plus M7 & M33 Real-time Cores for Low-latency & Secure Control
2.0 TOPS NPU for Edge AI/ML Inference
Arm Mali-G310 GPU with 2D/3D Acceleration
4GB/8GB LPDDR5, 32GB/64GB eMMC, 32Kbit EEPROM
Onboard Wi-Fi 6 & BT 5.4 Module
SMARC 2.2 314-pin Expansion Connector
Supports Working Temperature Ranging from -40 to 85 Celsius
Linux BSP & Yocto Support
NXP i.MX95: The First i.MX Processor with Hardware-Enforced Functional Safety

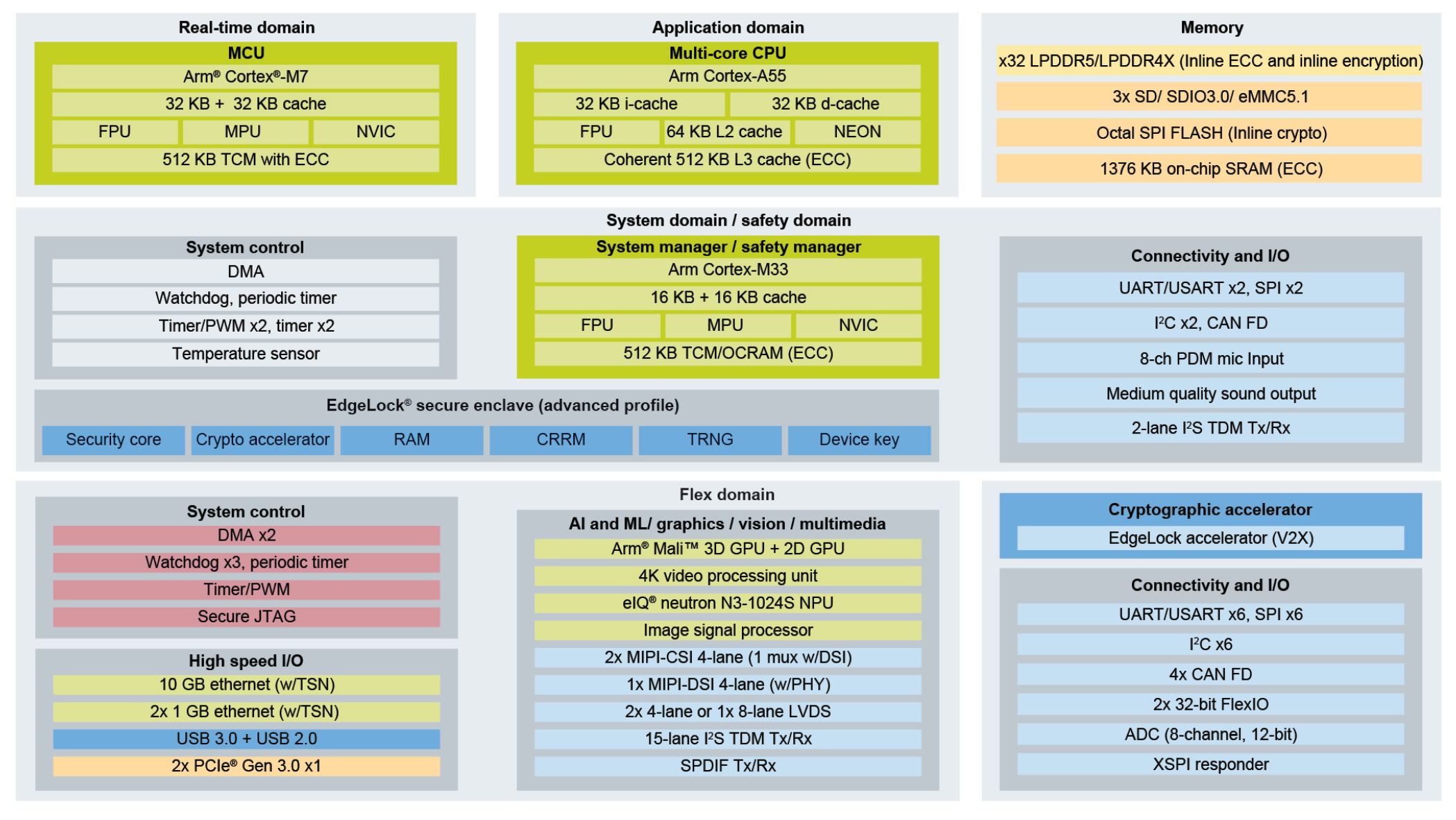

The NXP i.MX95 integrates up to six Arm Cortex-A55 cores and features a built-in Cortex-M33 that can be configured as a safety island, making it the first i.MX family device to support hardware-enforced functional safety. Built on NXP's Energy Flex architecture, the processor delivers an optimal balance of performance and power efficiency for industrial, IoT, and automotive applications.
SOM - MYC-JMX95X

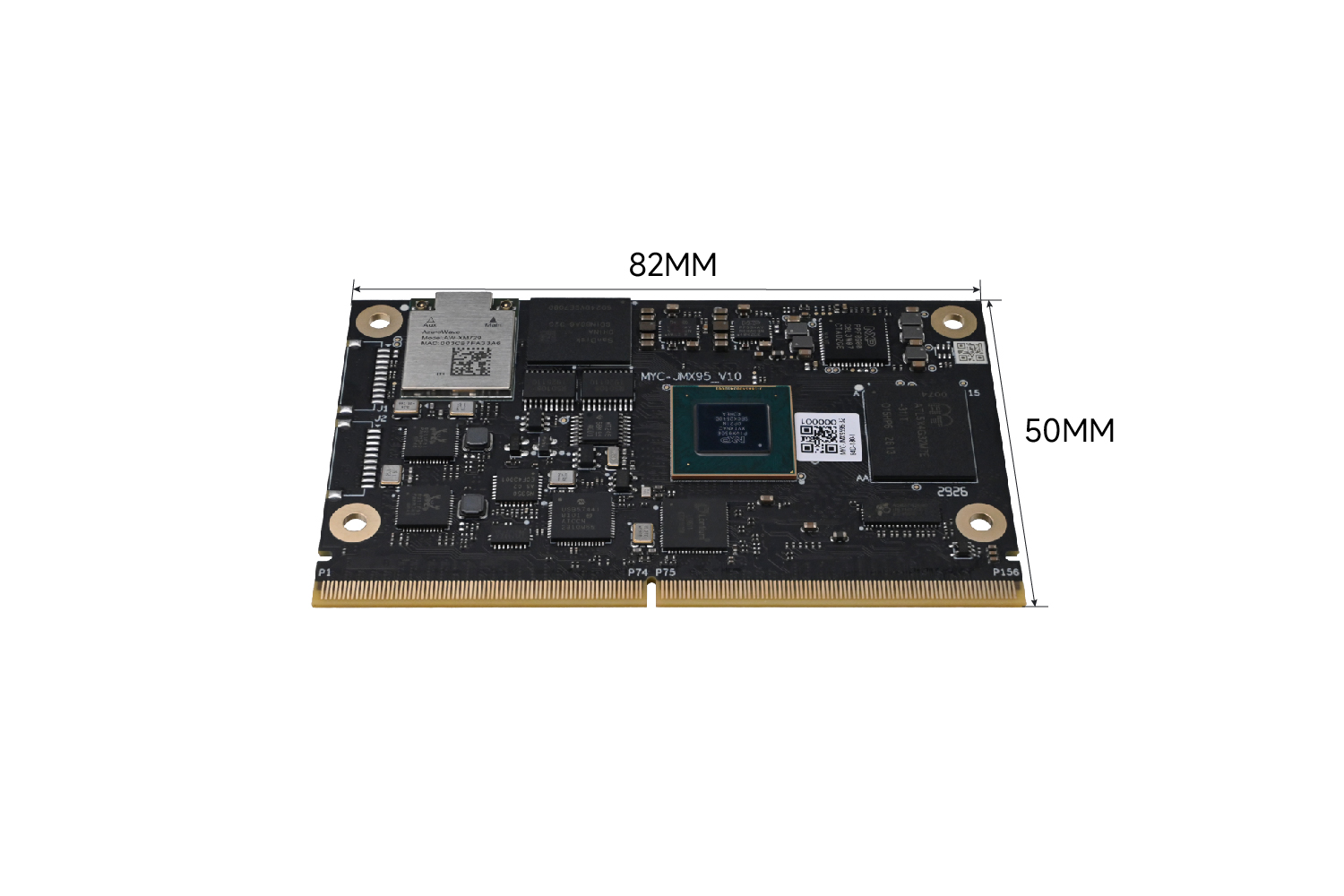

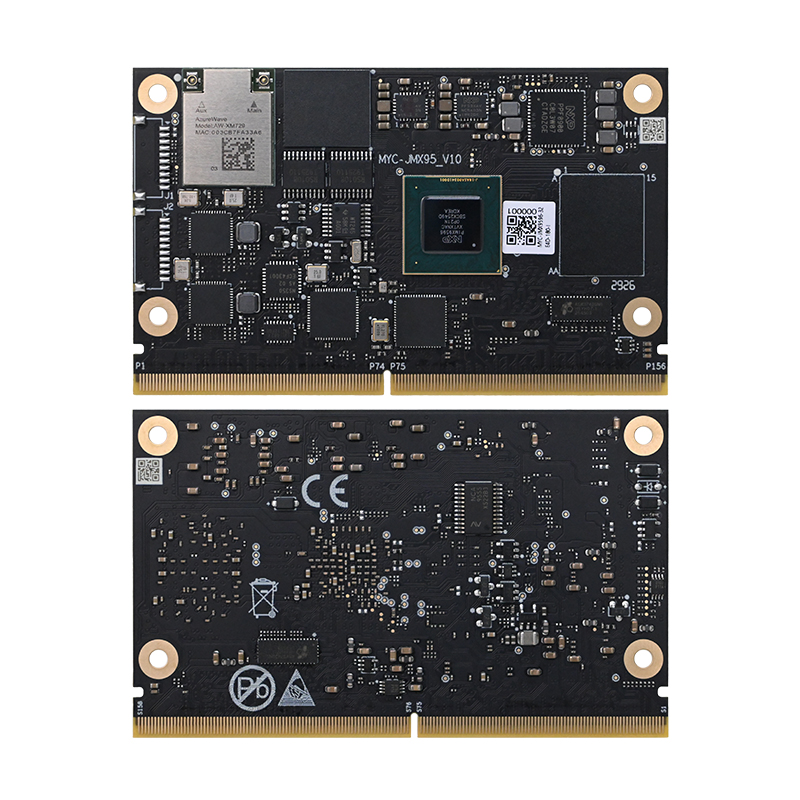

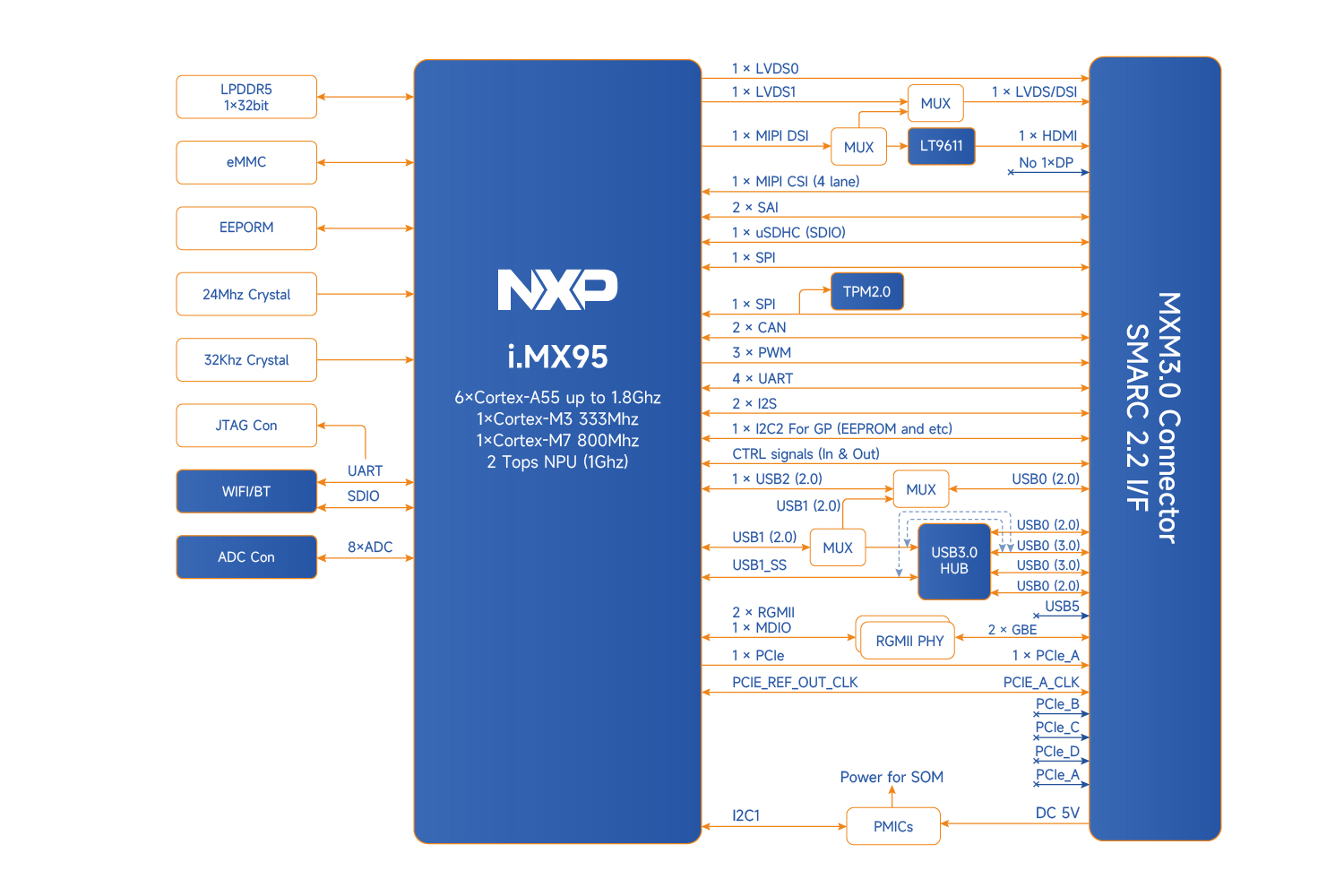

Measuring just 80mm x 50mm, the MYC-JMX95X is a high-performance SMARC System-On-Module (SOM) powered by the NXP i.MX95 (MIMX9596XVTXNAC) processor. It features 6x Cortex-A55 cores running up to 1.8 GHz for application processing, a Cortex-M7 for real-time control, and a Cortex-M33 for secure system management, along with a 2 TOPS eIQ Neutron NPU for AI inference acceleration. The MYC-JMX95X SOM integrates LPDDR5 (4GB/8GB), eMMC (32GB/64GB), and 32Kbit EEPROM for flexible storage options, plus an onboard Wi-Fi 6 & BT 5.4 module. Security is reinforced by an independent TPM 2.0 chip, while the integrated PMIC delivers efficient power management. The 314-pin SMARC connector, compliant with SMARC 2.1/2.2, delivers versatile expansion options: dual Gigabit Ethernet, flexible multi-display outputs (HDMI up to 4K@30Hz, dual LVDS, and MIPI-DSI), PCIe Gen3, USB 3.0/2.0, and CAN FD, as well as a full suite of UARTs, SPI, I2C, PWM, and ADC for peripheral integration. MYIR provides a complete Linux BSP (Yocto, kernel 6.12.49) with example code and documentation to accelerate time-to-market. The module operates from -40°C to +85°C and is CE & RoHS certified, making it ideal for industrial control, in-vehicle infotainment, and smart-edge IoT platforms that demand secure, reliable, and AI- accelerated performance.

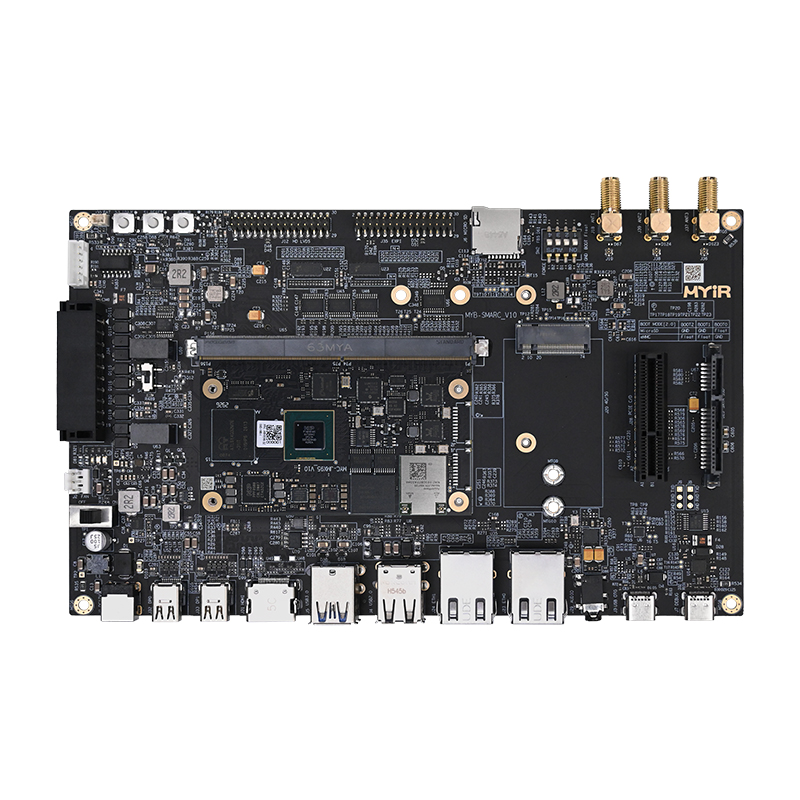

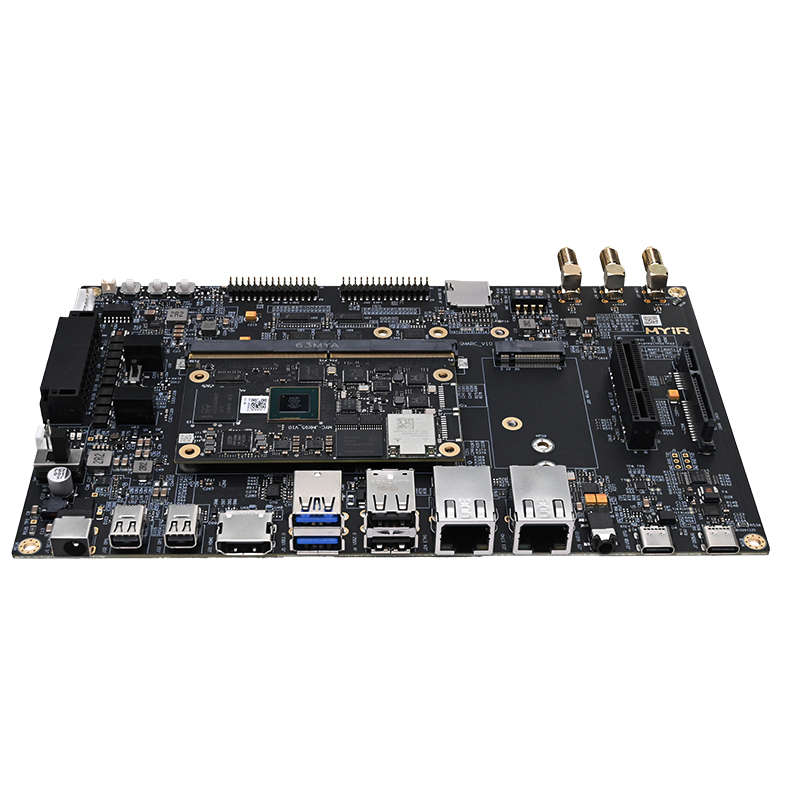

Development Board -MYD-JMX95X
The MYD-JMX95X development board delivers a complete evaluation and prototyping solution for embedded designs based on NXP i.MX95 processor which is built on 16nm FinFET technology and integrates six Cortex-A55 cores, a Cortex-M7 for deterministic real-time control, a Cortex-M33 secure core with EdgeLock Secure Enclave, and a 2 TOPS eIQ Neutron NPU for AI inference, striking an optimal balance between high-performance computing and low-power, functional-safety-ready operation.

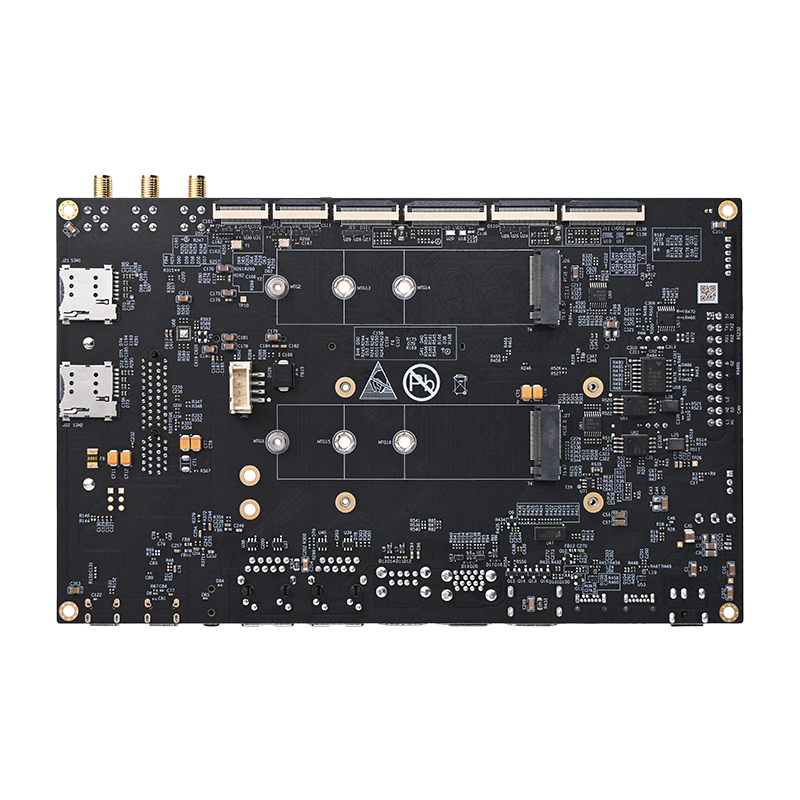

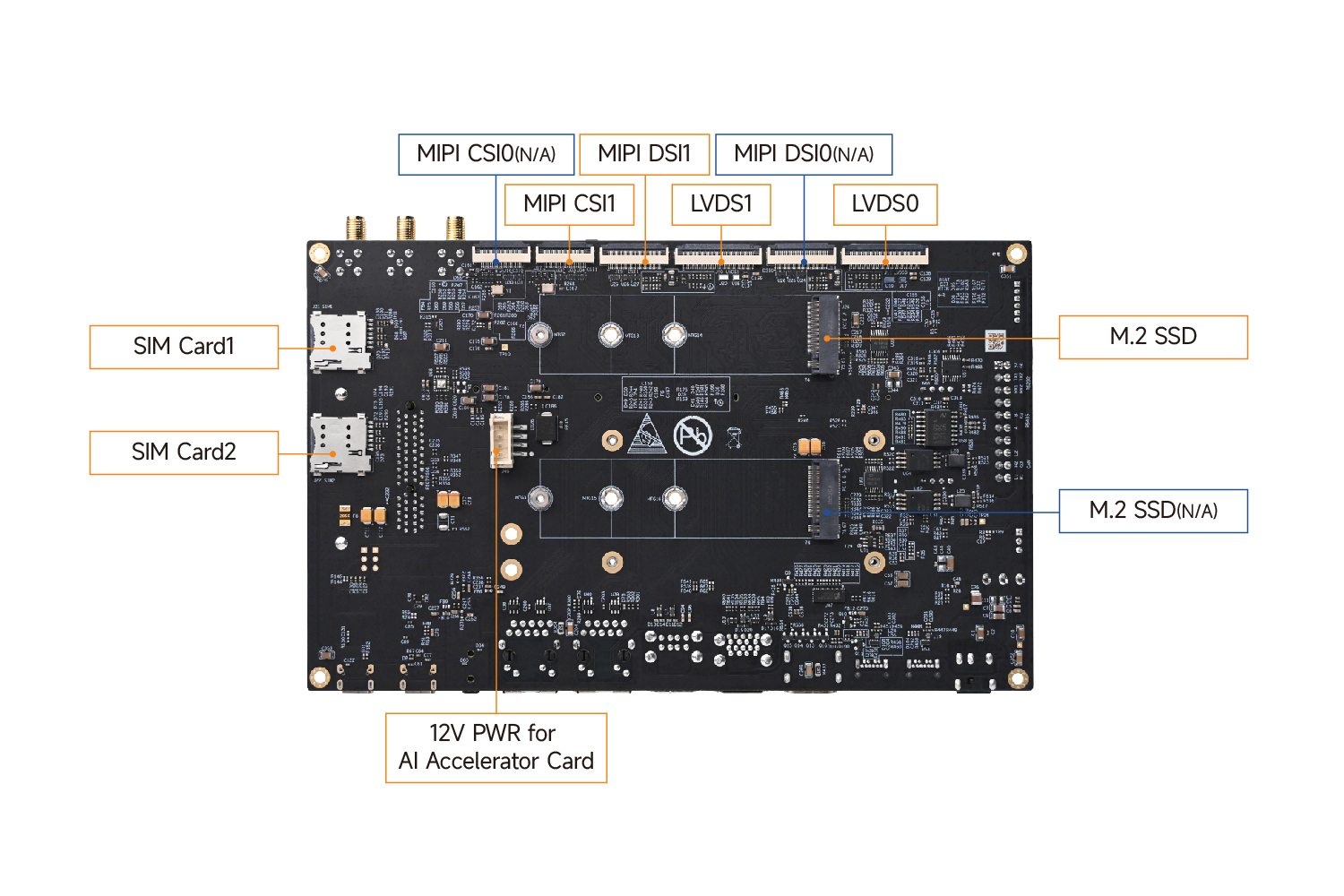

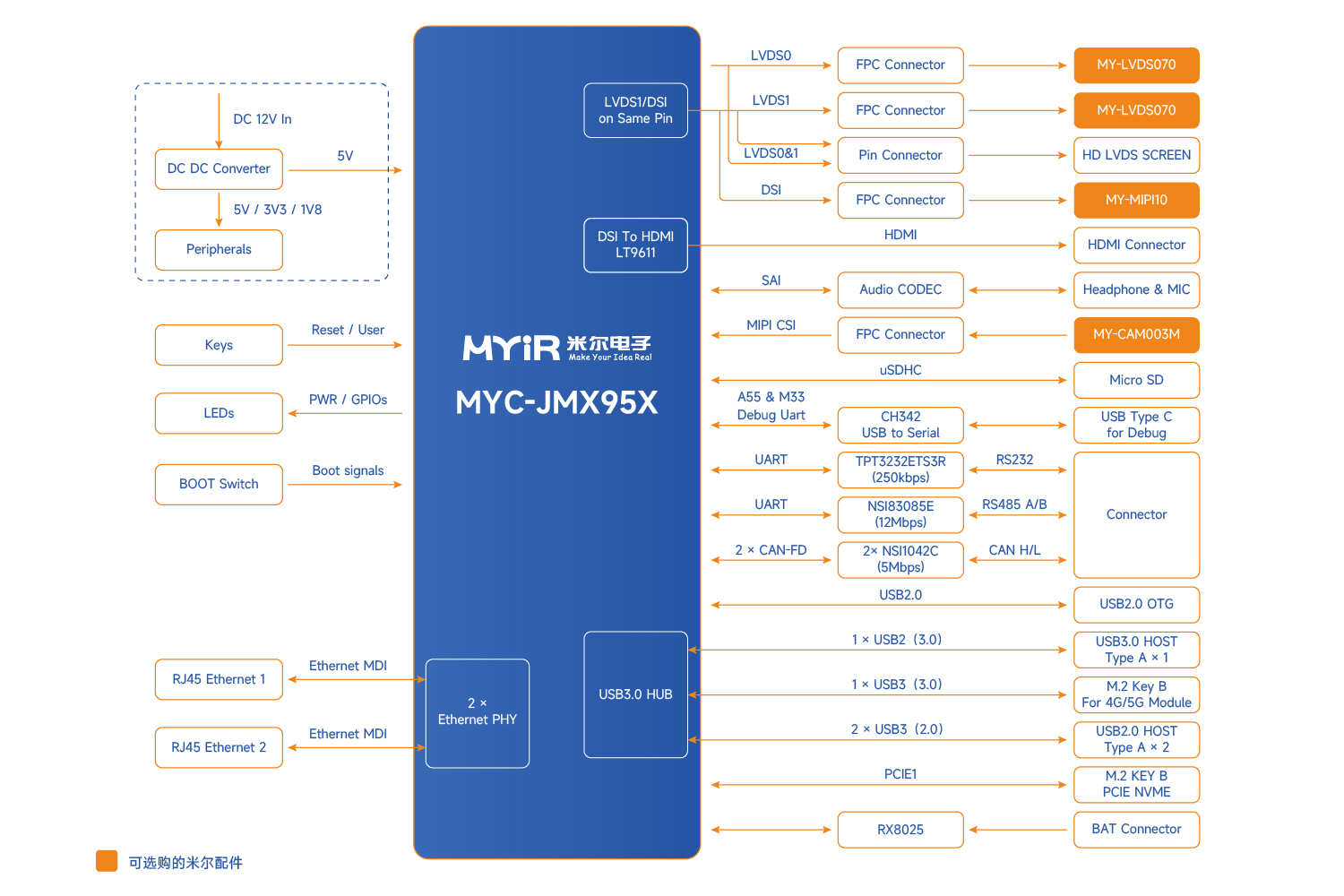

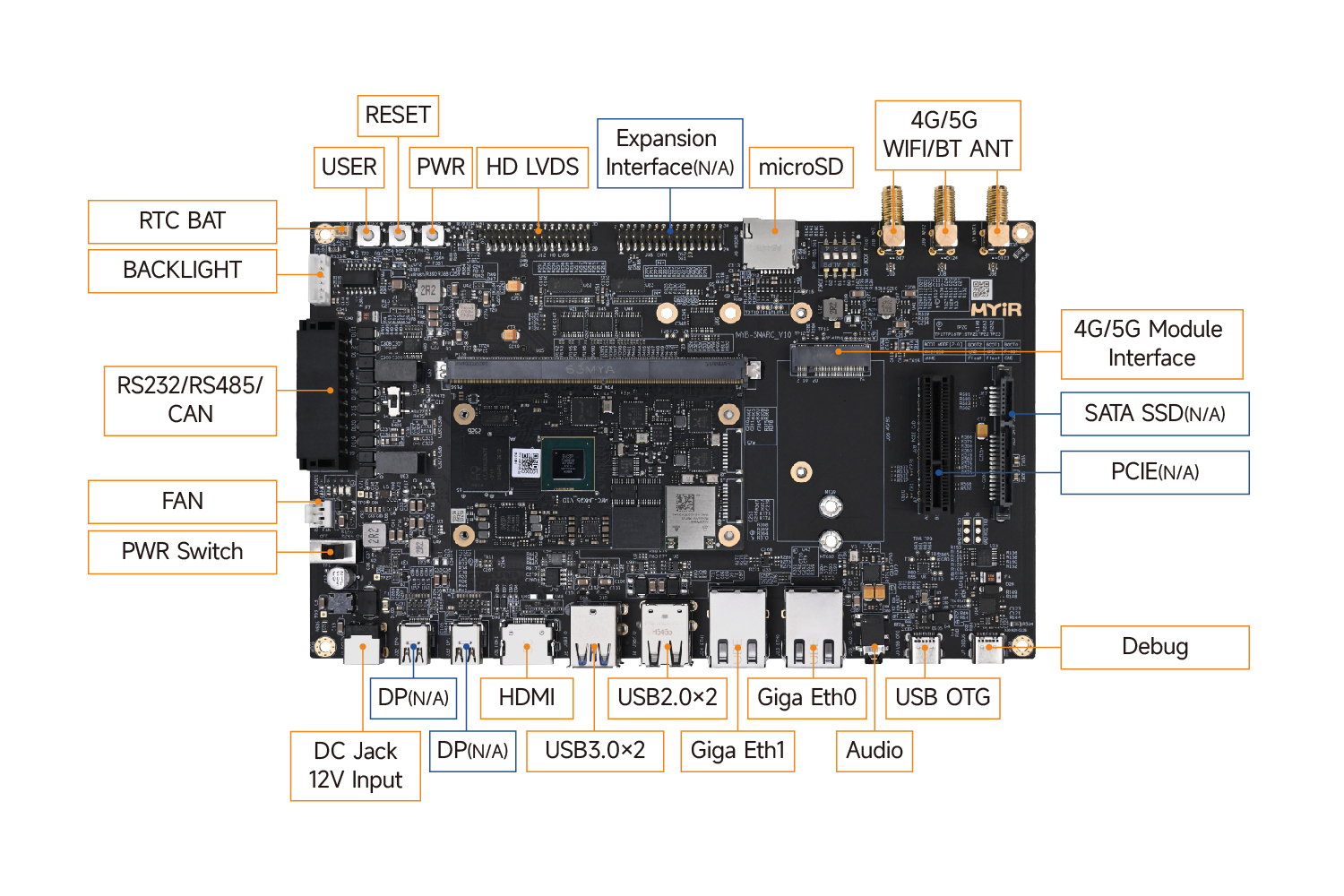

The MYD-JMX95X development board consists of the MYC-JMX95X SOM and the MYB-JMX95X base board, connected via a standard SMARC interface. The MYC-JMX95X integrates the i.MX95 processor, LPDDR5 (4GB/8GB), eMMC (32GB/64GB), 32Kbit EEPROM, an onboard Wi-Fi 6 & BT 5.4 module, an independent TPM 2.0 security chip, and a PMIC, forming a complete minimum system. The carrier board offers extensive I/O for application development, including dual Gigabit Ethernet, onboard Wi-Fi 6/BT 5.4, 4G/5G via mini PCIe socket with dual Micro SIM, HDMI/MIPI-DSI display, dual LVDS, MIPI-CSI camera, audio I/O, M.2-2280 PCIe (NVMe SSD), Micro SD, multiple USB (2x USB 3.0 Host, 2x USB 2.0 Host, and 1x USB 2.0 OTG), and dual CAN FD, RS485 & RS232 shared on a single Phoenix connector, delivering a feature-rich platform for industrial, automotive, and edge-AI prototyping
Rich Development Resources
Based on the SOM and development board of NXP i.MX95, MYIR provides driver support for the Linux operating system, and provides user manuals, PDF schemata, peripheral drivers, BSP source code packages, development tools and other related information, providing a stable design reference and perfect software development environment for developers.
Widely Used in Entry-level Embedded Systems
The SOM and development board based on NXP i.MX95 from MYIR support a variety of display interfaces LVDS, MIPI-DSI, Has a variety of video input interfaces MIPI-CSI, Applicable to Industrial control,IoT Gateway,Medical Platforms,Network communication,Onboard control and Smart home.
Industrial Control
IoT Gateway
Medical Platforms
Network Communication
Onboard Control
Smart home
Download
| File Name | Type | Size | Download Links |
|---|---|---|---|
| 3D STEP File for MYC-JMX95X SOM.rar | rar | 3 MB |
|
| MYC-JMX95X Overview | 2.21 MB |
|
|
| MYD-JMX95X Overview | 3.85 MB |
|
Ordering
The sample price applies only to the first 2 pieces per customer. For any quantity beyond 2 pieces, the sample price no longer applies. Please contact us for pricing.
| SOMs | CPU | RAM | Flash | Working Temp. | Sample Price | Ordering |
|---|---|---|---|---|---|---|
| MYC-JMX9596-32E4D-180-I | MIMX9596XVTXNAC | 4GB LPDDR5 | 32GB eMMC | -40℃~85℃ | USD209 |  |
| MYC-JMX9596-64E8D-180-I | MIMX9596XVTXNAC | 8GB LPDDR5 | 64GB eMMC | -40℃~85℃ | USD299 | |
| Development Boards | Packing List | With WiFi | Working Temp. | Sample Price | Ordering | |
| MYD-JMX9596-32E4D-180-I | * One MYD-JMX95X Board (includes MYC-JMX95X SOM, with heatsink pre-installed) * One 12V/2A Power Adapter * One USB Type-A to Type-C cable * One Quick Start Guide * One WIFI antenna and antenna cable | Yes | -40℃~85℃ | USD369 | | |
| MYD-JMX9596-64E8D-180-I | Yes | -40℃~85℃ | USD499 | | ||
| Add-on Options | Description | Sample Price | Ordering | |||
| MY-LVDS070C | MY-LVDS070C 7-inch LVDS Display Module with capacitive touch screen | USD79 | | |||
| MY-MIPI101C-V2 | MY-MIPI101C-V2 10.1-inch MIPI LCD Module with Capacitive Touch Screen | USD99 | | |||
| MY-CAM003M | MY-CAM003M MIPI Camera Module | USD25 | | |||
