MYIR Launches NXP i.MX95-Based MYC-JMX95X SMARC 2.2 SOM for Edge AI and Industrial Real-Time Control

Shenzhen, China - September 4, 2026 - MYIR, a global provider of embedded System-on-Modules (SoMs) and solutions, today announced the launch of the MYC-JMX95X, a high-performance SMARC System-On-Module engineered for secure, AI-accelerated edge computing. Built around the NXP i.MX95 applications processor, the compact module brings together six Cortex-A55 application cores, real-time and safety cores, a 2 TOPS NPU, and an EdgeLock secure enclave to serve the rigorous demands of industrial control, in-vehicle infotainment, and smart-edge IoT platforms.

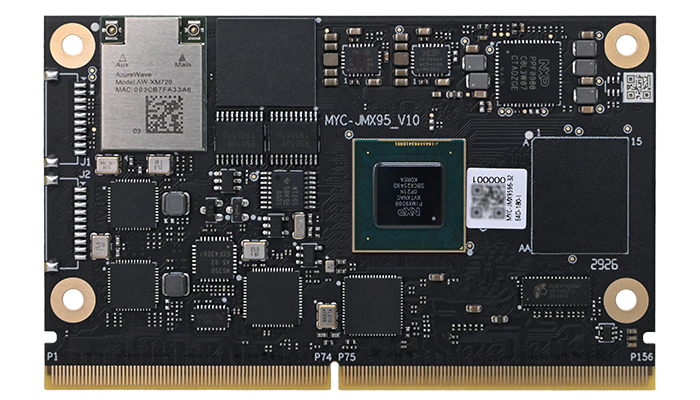

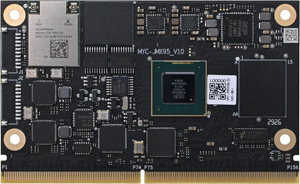

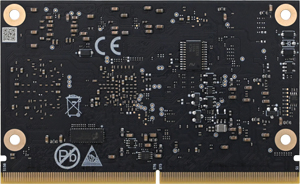

MYC-JMX95X System-On-Module (Top-view and Bottom-view)

Measuring just 82 mm x 50 mm, the MYC-JMX95X is powered by the NXP i.MX95 (MIMX9596XVTXNAC) processor, which combines 6x Arm Cortex-A55 cores running up to 1.8 GHz for application processing, a Cortex-M7 for real-time control, and a Cortex-M33 for secure system management, along with a 2 TOPS eIQ Neutron NPU for AI inference acceleration. The Cortex-M33 can additionally be configured as a safety island, making the i.MX95 the first i.MX family device to support hardware-enforced functional safety. This heterogeneous architecture enables precise, low-latency control alongside rich edge-AI workloads, making the module ideal for industrial control, in-vehicle infotainment, medical devices, and smart-edge IoT platforms.

Despite its powerful capabilities, the MYC-JMX95X maintains a compact footprint, and is equipped with a robust hardware configuration designed for industrial-grade environments:

Processor: NXP i.MX95 (MIMX9596XVTXNAC), Hexa-core 64-bit Arm Cortex-A55 up to 1.8 GHz, Cortex-M7 real-time core up to 800 MHz, Cortex-M33 system-management core up to 333 MHz

AI Performance: Integrated 2 TOPS eIQ Neutron NPU (INT8 @ 1 GHz) with Arm Mali-G310 3D GPU

Memory & Storage: 4GB/8GB LPDDR5, 32GB/64GB eMMC, 32Kbit EEPROM

Wireless Connectivity: Onboard Wi-Fi 6 + Bluetooth 5.4 module (AzureWave AW-XM729)

Security: Independent TPM 2.0 security chip, NXP EdgeLock® secure enclave, integrated Power Management IC (PMIC)

Expansion: 314-pin SMARC 2.1/2.2-compliant connector routing 2x RGMII, 1x PCIe Gen3.0, 2x USB 3.0 Host, 2x USB 2.0 Host, 1x USB 2.0 OTG, 2x CAN FD, 4x UART, 2x SPI, 2x SAI, 3x I2C, MIPI-DSI/HDMI, 2x LVDS, and 1x MIPI-CSI

Industrial Grade: -40°C to +85°C operating temperature, 12-layer PCB design, CE & RoHS certified

Accelerate Development with the MYD-JMX95X Companion Board
The MYD-JMX95X development board combines the MYC-JMX95X SOM with a carrier board via the 314-pin SMARC connector, delivering extensive evaluation interfaces: dual Gigabit Ethernet, onboard Wi-Fi 6/BT 5.4, 4G/5G cellular support via a mini PCIe socket with dual Micro SIM, HDMI/MIPI-DSI display, dual LVDS, MIPI-CSI camera, audio I/O, M.2-2280 PCIe for NVMe SSD, Micro SD, multiple USB ports (2x USB 3.0 Host, 2x USB 2.0 Host, 1x USB 2.0 OTG), and dual CAN FD with RS485 & RS232 shared on a single Phoenix connector. This rich I/O portfolio makes it an ideal platform for rapid prototyping in edge-AI, industrial, and automotive applications.

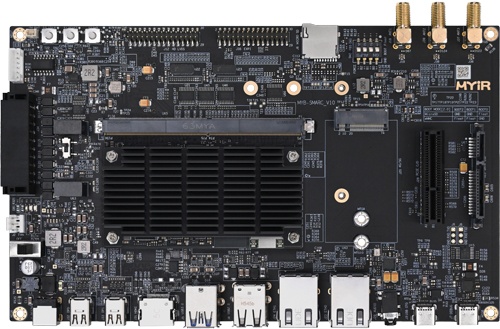

MYD-JMX95X Development Board (delivered with heatsink pre-installed)

Optional Accessories for a Ready-to-Use Experience
For enhanced development flexibility, MYIR offers optional accessories for the MYD-JMX95X, including the MY-CAM003M MIPI camera module, MY-LVDS070C 7-inch LVDS display, and MY-MIPI101C-V2 10.1-inch MIPI display, delivering a streamlined, ready-to-use development experience.

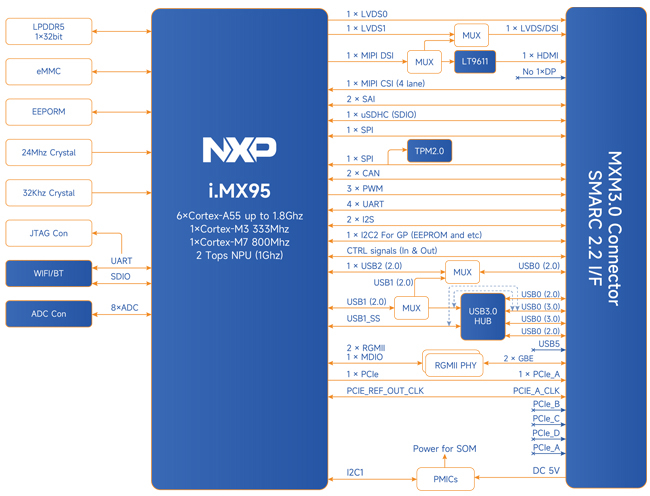

MYC-JMX95X Function Block Diagram

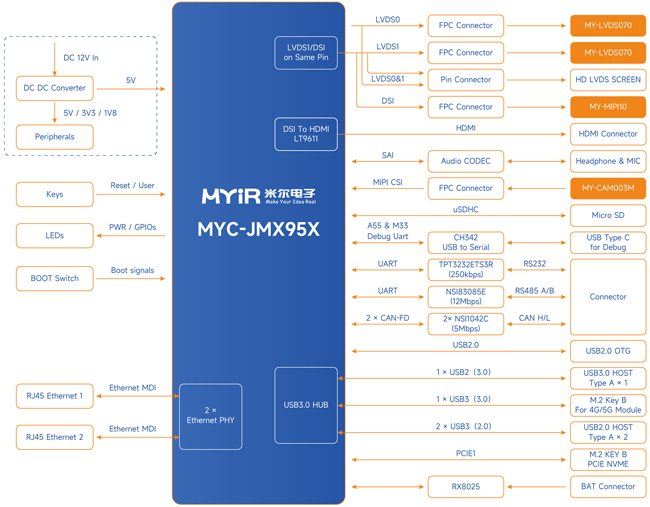

MYD-JMX95X Function Block Diagram

The MYC-JMX95X System-On-Module is fully compatible with Linux and ships with a complete software package, including U-Boot 2025.04, a customized Linux kernel based on the official 6.12.49 version, and the myir-image-full Yocto image with a pre-built GUI. The source code for the kernel and various peripheral drivers is included to help clients speed up their projects:

• Bootloader: U-Boot 2025.04 - Open Source

• Linux Kernel: Customized based on official kernel 6.12.49 - Open Source

• File System: myir-image-full (Linux Yocto image with pre-built GUI) - Open Source

• Peripheral Drivers: USB HOST/OTG, Ethernet (YT8531SH), RS232, RS485, CAN, RTC, GPIO, Audio (ES8388), Wi-Fi/BT (AW-XM729) - Open Source

The MYC-JMX95X (Part No. MYC-JMX9596-32E4D-180-I with 4GB LPDDR5 + 32GB eMMC, or MYC-JMX9596-64E8D-180-I with 8GB LPDDR5 + 64GB eMMC) is available for order now. The MYD-JMX95X development board (Part No. MYD-JMX9596-32E4D-180-I / MYD-JMX9596-64E8D-180-I) ships with the heatsink pre-installed, a 12V/2A power adapter, and a USB Type-A to Type-C cable. MYIR also provides comprehensive customization and OEM/ODM services, allowing customers to modify circuit designs and software configurations to meet specific project requirements.

For more information, pricing, or to request samples, please visit the official product page:
https://en.myir.cn/iMX95/177.html

Additional resources: Download Datasheet · Order Evaluation Unit · Contact Sales · Contact FAE
