MYC-JS8MPQ
Cost-Optimized i.MX 8M Plus SMARC 2.2 SOM with WiFi/BT
NXP i.MX8MPlus Quad Application Processor based on 1.6 GHz Arm Cortex-A53 and 800MHz Cortex-M7 Cores
A Neural Processing Unit (NPU) up to 2.3 TOPS, 3D GPU
2GB/4GB LPDDR4, 16GB/32GB eMMC Flash, 32Kbit EEPROM
Power Management IC (PMIC)
Onboard Wi-Fi 6 & BT 5.4 Module
314-pin SMARC 2.2 Expansion Connector
Supports Working Temperature Ranging from -40°C to 85°C
Supports Running Linux 6.12.49
MYD-JS8MPQ Development Board
NXP Approved Gold Partner
i.MX 8M Plus – Arm Cortex-A53, Machine Learning, Vision, Multimedia and IIoT
The i.MX 8M Plus family is designed specifically for Smart Home, Building, City, and Industry 4.0 applications, targeting ML, vision, multimedia, and industrial automation. It boasts quad or dual Arm Cortex-A53 processors equipped with an NPU capable of up to 2.3 TOPS, dual ISPs, and supports two camera inputs. For multimedia capabilities, it includes video encoding/decoding, 3D/2D graphics, and audio/voice functionalities. Furthermore, it offers real-time control with a Cortex-M7 processor and robust networking with dual CAN FD and dual Gigabit Ethernet.
SOM - MYC-JS8MPQ

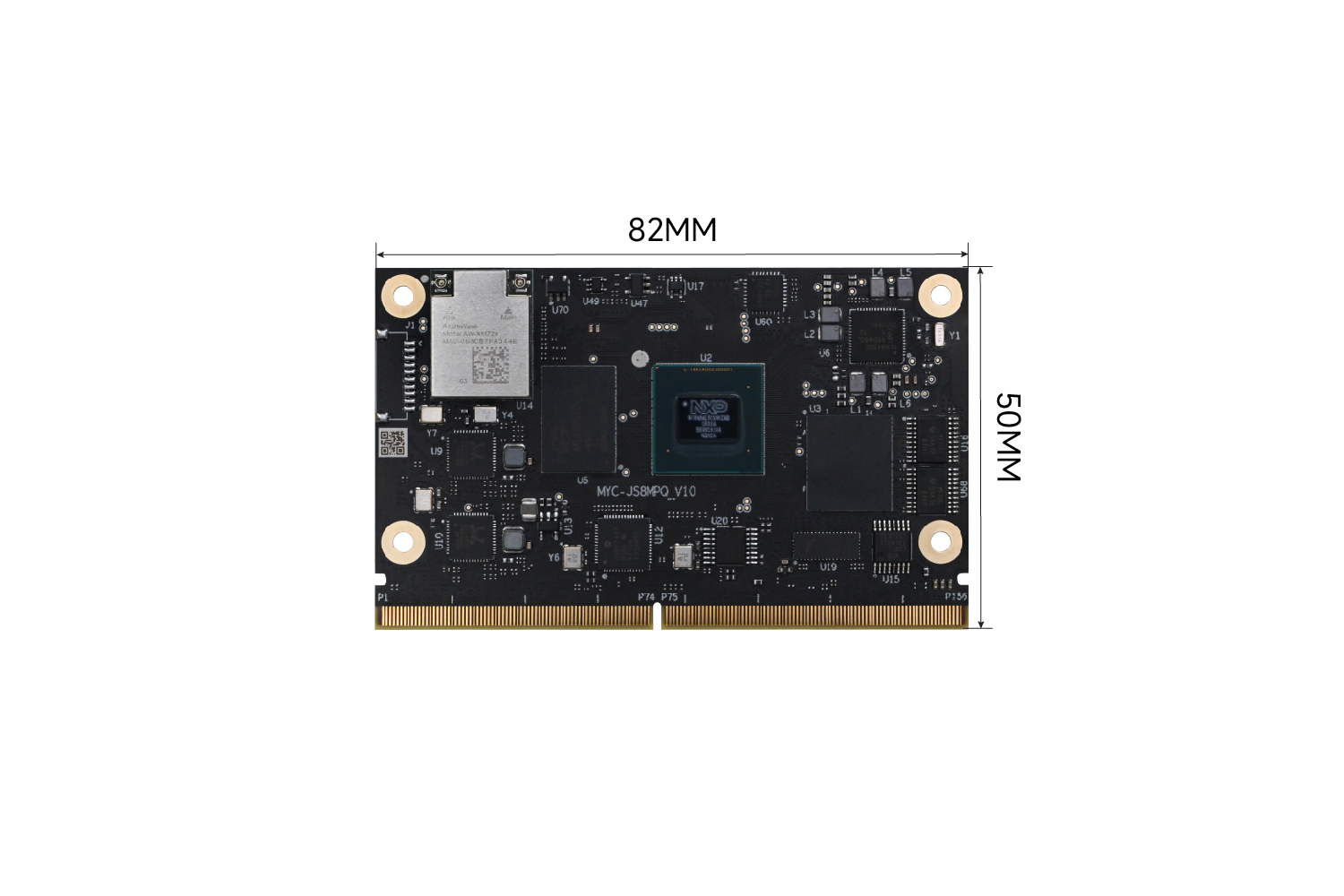

Measuring 82mm x 50mm, the MYC-JS8MPQ is a high-performance Edge AI SMARC System-on-Module (SOM) powered by the NXP i.MX 8M Plus processor. It features four Cortex-A53 cores (up to 1.6 GHz) and a Cortex-M7 core for real-time control, and a 2.3 TOPS NPU along with a 3D GPU for edge AI inference and graphics.
The MYC-JS8MPQ SOM integrates LPDDR4 (2GB/4GB), eMMC (16GB/32GB), and 32Kbit EEPROM for flexible storage options, along with onboard Wi-Fi 6 and BT 5.4 module, a Gigabit Ethernet PHY, and a USB 3.0 HUB. Security is reinforced by an independent TPM 2.0 chip and the built-in NXP i.MX 8M Plus security subsystem, while the onboard PMIC delivers efficient power management.
The 314-pin SMARC 2.2 connector offers versatile expansion options, including dual Gigabit Ethernet, multi-display outputs (HDMI, MIPI-DSI or 2x LVDS), dual MIPI-CSI camera inputs, PCIe, USB 3.0/USB 2.0 and CAN FD , as well as a full suite of UART, SPI, I2C, PWM, SDIO, and SAI interfaces for peripheral integration.
MYIR provides a complete software package including a Yocto Linux (kernel 6.12.49) BSP, open-source drivers, and documentation to accelerate time-to-market. The module is available in industrial (-40 to +85 ℃) temperature grades, making it ideal for edge AI gateways, industrial automation, and machine vision, intelligent HMI systems, medical devices and power system applications.
Development Board - MYD-JS8MPQ

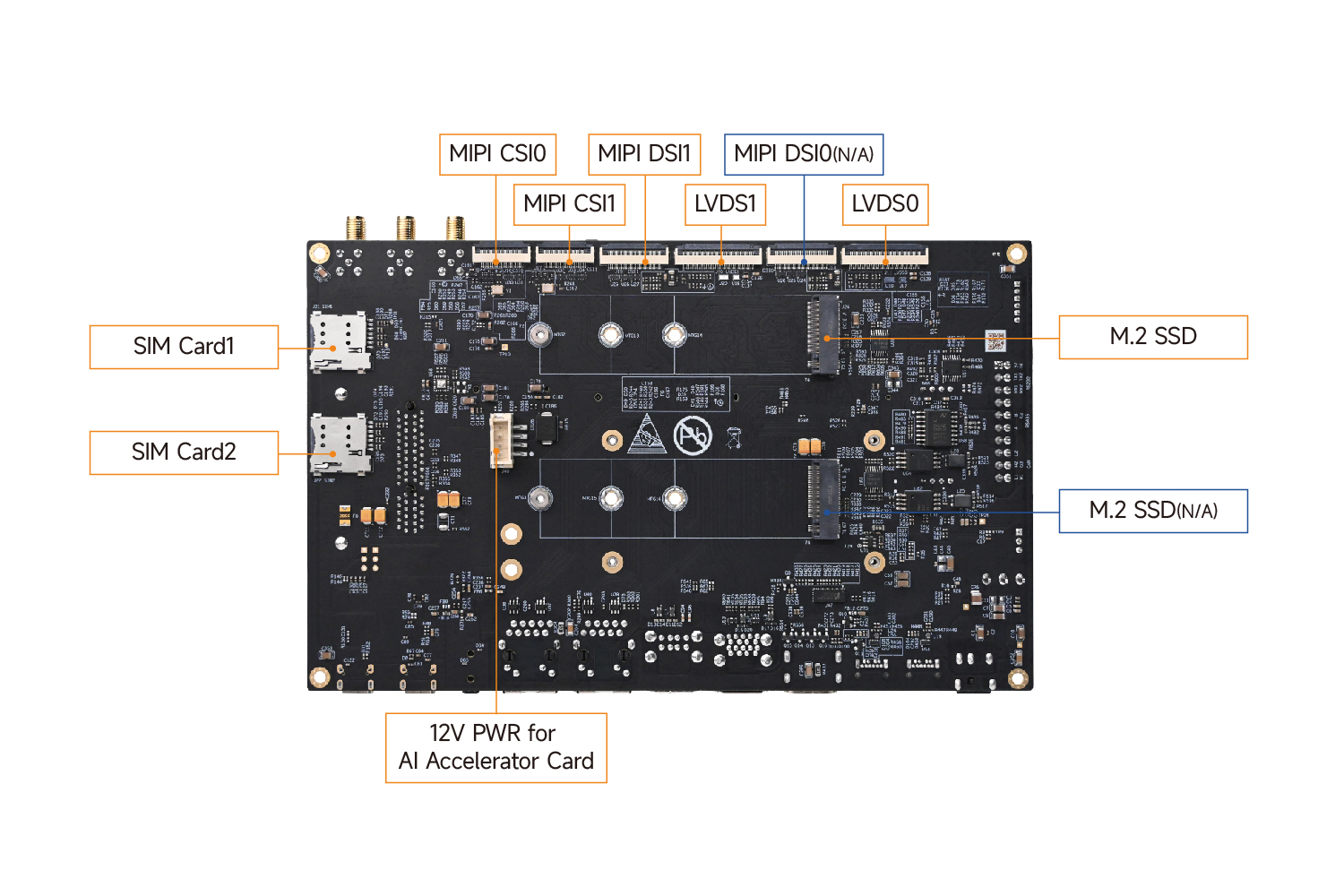

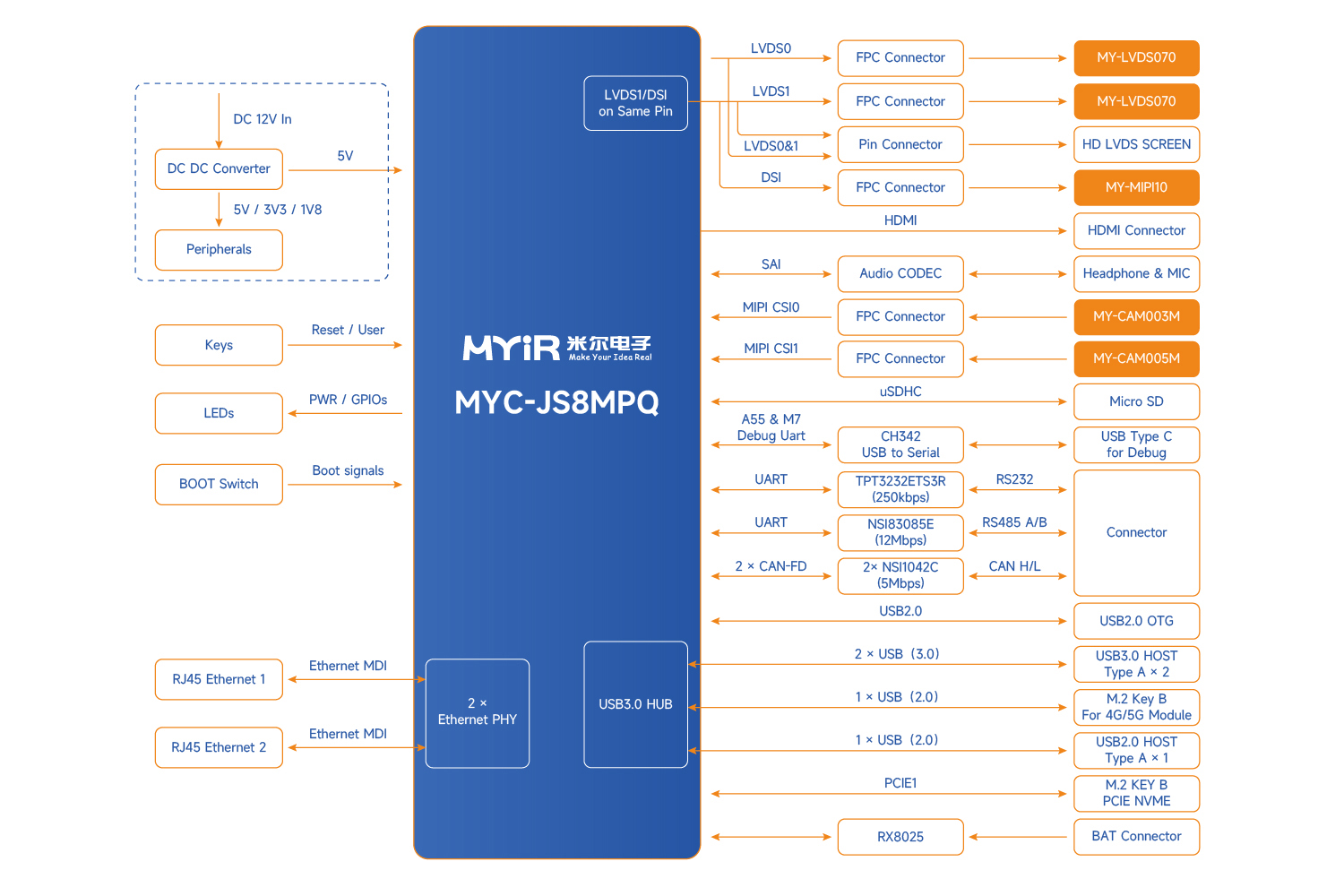

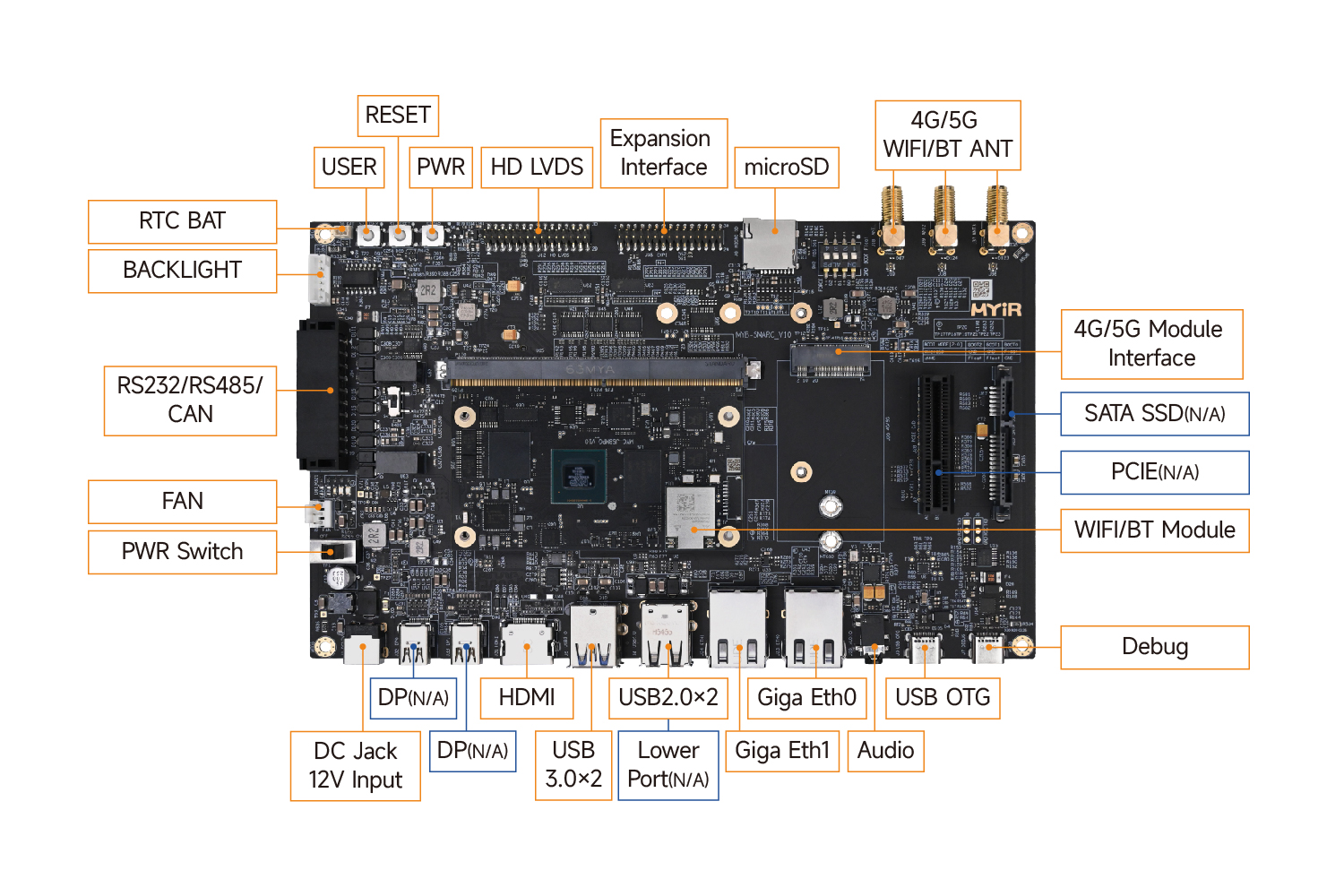

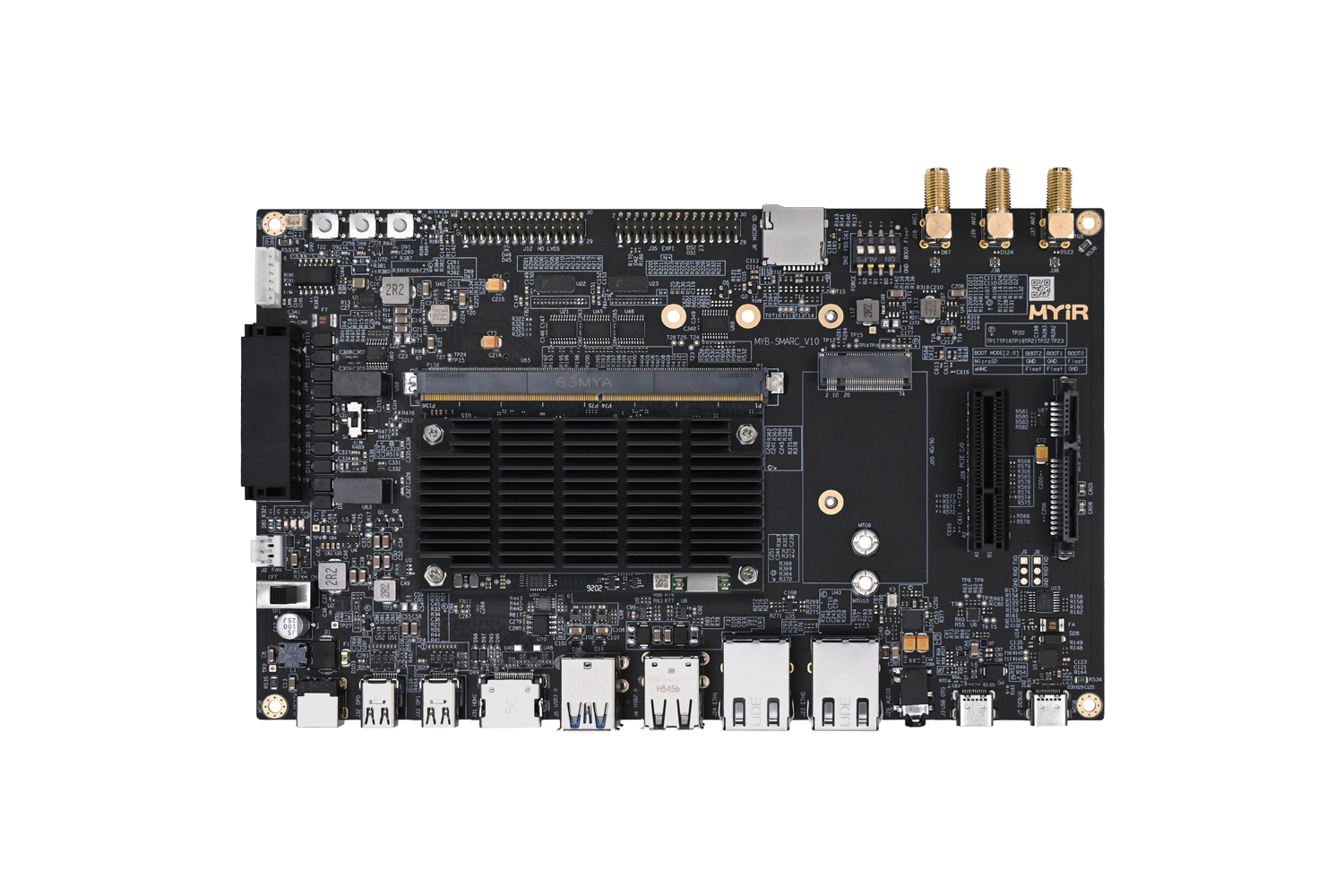

The MYD-JS8MPQ development board combines the MYC-JS8MPQ SOM with a carrier board via a 314-pin SMARC connector. The carrier board is universal and compatible with all MYIR SMARC SOMs. It delivers extensive evaluation interfaces, including dual Gigabit Ethernet, a Mini PCIe socket with dual Micro SIM support for 4G/5G modules, a PCIe slot for NVMe SSD, a Micro SD slot, multiple USB ports (2x USB 3.0 Host, 1x USB 2.0 Host, and 1x USB 2.0 OTG). It also features dual CAN FD, RS485, and RS232, all routed through a single Phoenix connector. For display and imaging, it supports HDMI, MIPI-DSI, and LVDS, plus two MIPI-CSI camera inputs and audio I/O. This rich I/O portfolio makes it a solid reference platform for rapid prototyping with i.MX 8M Plus solutions.
For greater development flexibility, MYIR offers optional display and camera accessories for the MYD-JS8MPQ, including the MY-MIPI101C-V2 10.1-inch MIPI display, the MY-LVDS070C 7-inch LVDS display, and the MY-CAM003M and MY-CAM005M MIPI-CSI camera modules, which provide a streamlined, ready-to-use development experience.
Rich Development Resources
The MYD-JS8MPQ development board supports Linux OS, and comes with comprehensive software packages. To help clients accelerate their projects, the kernel and various peripheral drivers are provided in source code format.
Widely Used in Entry-level Embedded Systems
MYIR's NXP i.MX 8M Plus based SOM covers human and object object recognition and supports public safety, industrial machine vision, robotics, gesture and emotion detection through natural language processing, enabling seamless interaction between people and devices with ultra-fast response times and high accuracy.
HMI
Industrial Control
Automotive Electronics
Medical Device
Smart Home
IoT Gateway
Ordering
The sample price applies only to the first 2 pieces per customer. For any quantity beyond 2 pieces, the sample price no longer applies. Please contact us for pricing.
| SOMs | RAM | Flash | With WiFi/BT | Working Temp. | Sample Price | Ordering |
|---|---|---|---|---|---|---|
| MYC-JS8MPQ-16E2D-160-I | 2GB LPDDR4 | 16GB eMMC | Yes | -40~85℃ | USD139 |  |
| MYC-JS8MPQJ-32E4D-160-I | 4GB LPDDR4 | 32GB eMMC | Yes | -40~85℃ | USD195 | |
| Development Boards | Packing List | With WiFi/BT | Working Temp. | Sample Price | Ordering | |
| MYD-JS8MPQ-16E2D-160-I | * One MYD-JS8MPQ Board (Includes MYC-JS8MPQ SOM with pre-installed heatsink) *One 12V/2A Power Adapter *One USB Type-A to Type-C cable *One Quick Start Guide *One Wi-Fi IPEX antenna *One Wi-Fi rod antenna | Yes | -40~85℃ | USD209 | | |
| MYD-JS8MPQ-32E4D-160-I | Yes | -40~85℃ | USD265 | | ||
| Add-on Options | Description | Sample Price | Ordering | |||
| MY-LVDS070C | MY-LVDS070C 7-inch LCD Module with capacitive touch screen | USD79 | | |||
| MY-CAM003M | MY-CAM003M MIPI Camera Module | USD25 | | |||
| MY-CAM005M | MY-CAM005M MIPI Camera Module | USD25 | | |||
| MY-MIPI101C-V2 | MY-MIPI101C-V2 10.1-inch LCD Module with capacitive touch screen | USD99 | | |||
