MYIR Launches NXP i.MX 8M Plus-Based MYC-JS8MPQ SMARC 2.2 SOM for Machine Vision and Edge AI

Shenzhen, China - October 26, 2026 - MYIR, a provider of embedded System-on-Modules (SoMs) and hardware solutions, introduces the MYC-JS8MPQ, a compact SMARC 2.2 System-on-Module powered by the NXP i.MX 8M Plus processor. Combining a quad-core 1.6 GHz Arm Cortex-A53 CPU, an 800 MHz Cortex-M7 real-time core, a 2.3 TOPS NPU, and a 3D GPU, the module targets edge AI gateways, industrial automation, machine vision, intelligent HMI, medical devices, and power system applications. It joins MYIR's SMARC 2.2 family alongside the i.MX 95-based MYC-JMX95X and the Rockchip RK3576-based MYC-JR3576, giving developers a pin-compatible path to scale across processor platforms.

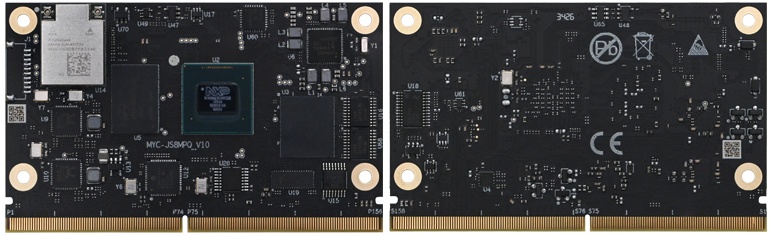

MYC-JS8MPQ System-On-Module (Top-view and Bottom-view)

Measuring 82 mm × 50 mm, the MYC-JS8MPQ combines four Arm Cortex-A53 cores running at up to 1.6 GHz for application processing with an 800 MHz Cortex-M7 core for real-time control. The integrated 2.3 TOPS NPU provides edge AI inference acceleration, complemented by a 2D/3D GPU for graphics and a 1080p60 VPU with H.265/H.264 encoding and decoding. A dual ISP delivering up to 375 MPixels/s with HDR and fisheye correction supports simultaneous multi-camera vision designs, making the module well suited for machine vision and visual AIoT applications.

The MYC-JS8MPQ integrates memory, wireless connectivity, security components, a Gigabit Ethernet PHY, and a USB 3.0 hub in a compact design. Its main hardware features include:

Processor: NXP i.MX 8M Plus (MIMX8ML8CVNKZAB, industrial grade), quad-core 64-bit Arm Cortex-A53 at 1.6 GHz plus a Cortex-M7 real-time core at 800 MHz

AI Performance: Integrated 2.3 TOPS NPU and 2D/3D GPU, with a dual ISP (375 MPixels/s, HDR support)

Memory & Storage: 2GB/4GB LPDDR4 with inline ECC, 16GB/32GB eMMC, and 32Kbit EEPROM

Wireless Connectivity: Onboard Wi-Fi 6 (802.11a/b/g/n/ac/ax) and Bluetooth 5.4 module

Security: Independent TPM 2.0 security chip and the i.MX 8M Plus built-in security subsystem (secure boot, Arm TrustZone, crypto acceleration), with an onboard Power Management IC (PMIC)

Expansion: 314-pin SMARC 2.2 connector providing signals for dual Gigabit Ethernet (1× TSN-capable), 1× PCIe Gen3 x1, 2× USB 3.0 Host, 2× USB 2.0 Host, 1× USB 2.0 OTG, 2× CAN FD, 4× UART, 2× SPI, 5× I2C, 1× SD/SDIO 3.0, 3× PWM, and 2× SAI. Display and camera connectivity includes HDMI, MIPI-DSI (multiplexed with LVDS1), 2× LVDS, and 2× MIPI-CSI interfaces.

Operating Temperature and Design: −40°C to +85°C (industrial grade); 10-layer PCB design; +5V/2A power supply

Interface counts represent the maximum signals listed for the expansion interface. Some signals are multiplexed; please refer to the processor datasheet and SOM pinout documentation for configuration details.

Accelerate Development with the MYD-JS8MPQ Companion Board

The MYD-JS8MPQ development board combines the MYC-JS8MPQ SOM with a universal carrier board that is compatible with all MYIR SMARC SOMs. It provides evaluation interfaces for dual Gigabit Ethernet, a Mini PCIe socket with dual Micro SIM support for 4G/5G modules, an M.2 Key-B PCIe socket for NVMe SSD, and MicroSD storage. USB connectivity includes 2× USB 3.0 Host, 1× USB 2.0 Host, and 1× USB 2.0 OTG. For display and imaging evaluation, the board supports HDMI, MIPI-DSI, and LVDS, together with two MIPI-CSI camera inputs and audio I/O. Dual CAN FD, RS485, and RS232 share a single Phoenix connector. These interfaces provide a platform for rapid prototyping with i.MX 8M Plus solutions.

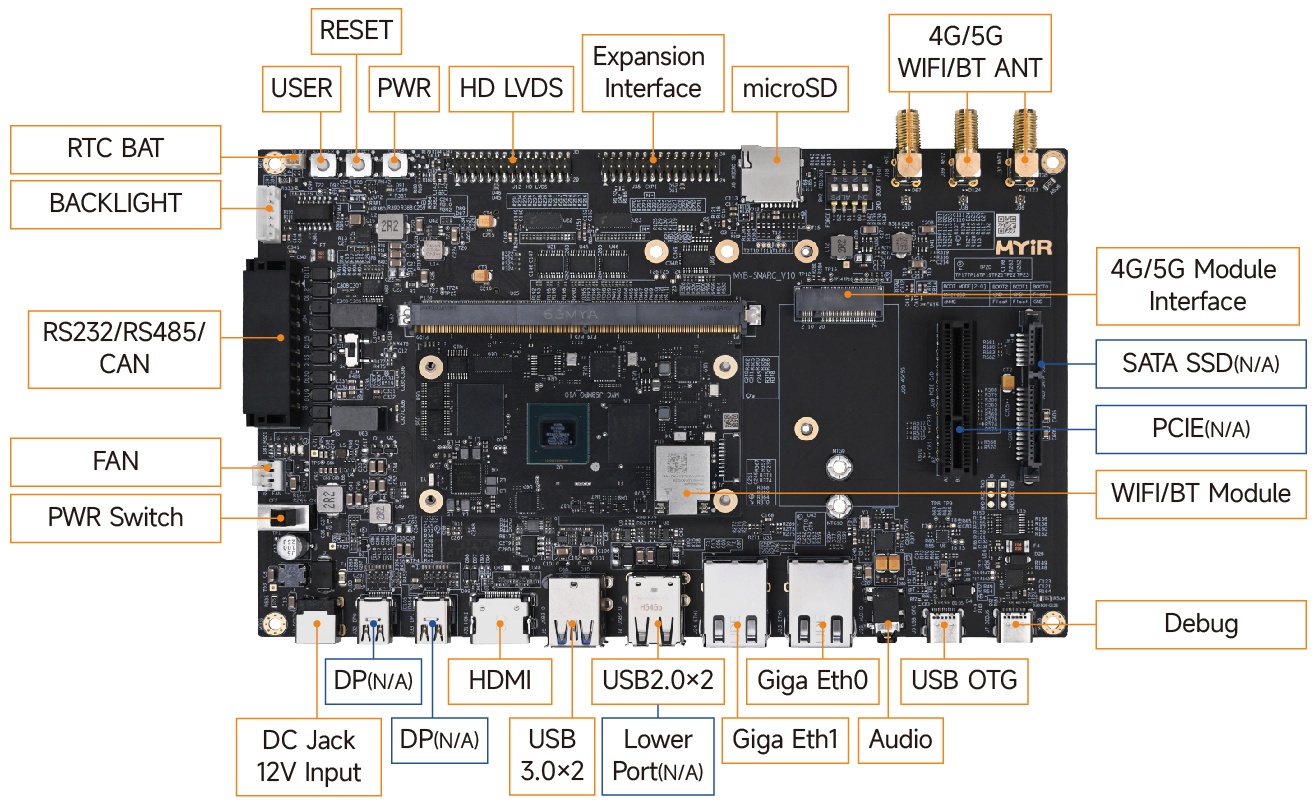

MYD-JS8MPQ Development Board (Top-view)

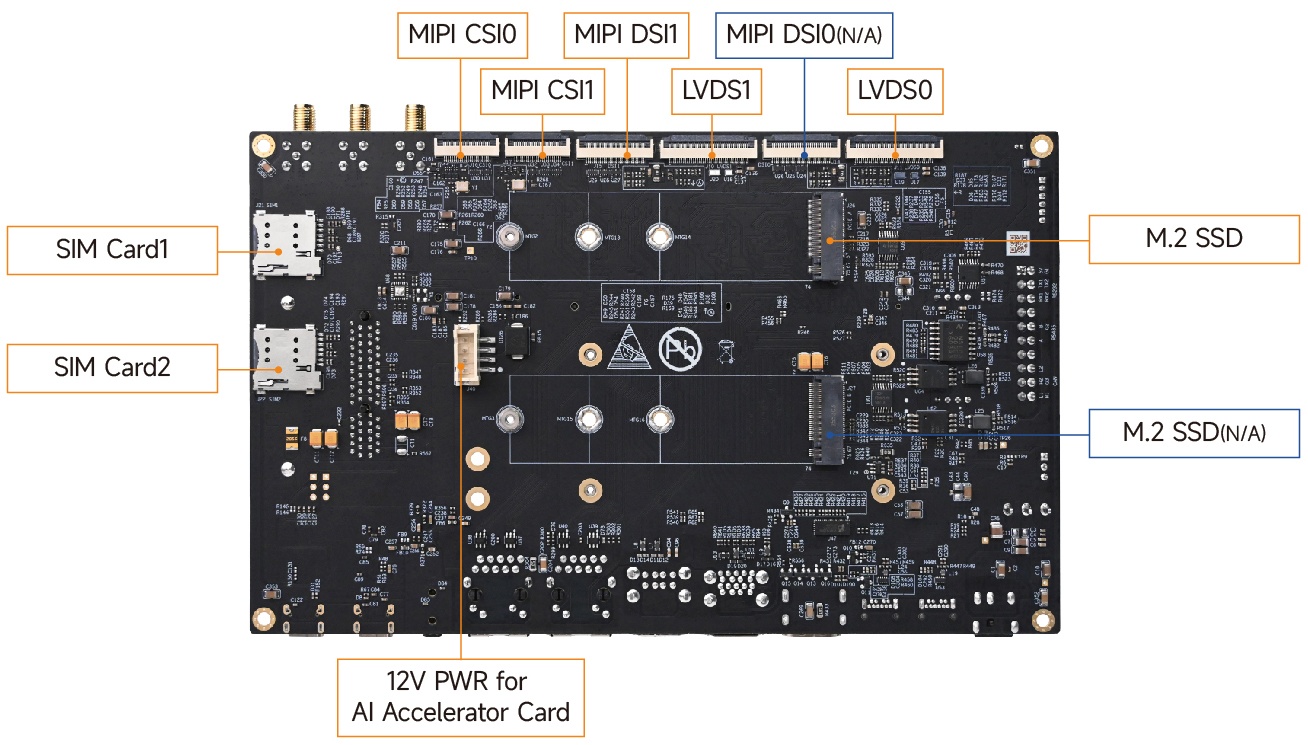

MYD-JS8MPQ Development Board (Bottom-view)

Optional Accessories for a Ready-to-Use Experience
MYIR offers optional display and camera accessories for the MYD-JS8MPQ, including the MY-MIPI101C-V2 10.1-inch MIPI display and MY-LVDS070C 7-inch LVDS display, both with capacitive touch screens. The MY-CAM003M and MY-CAM005M MIPI-CSI camera modules provide additional options for imaging evaluation.

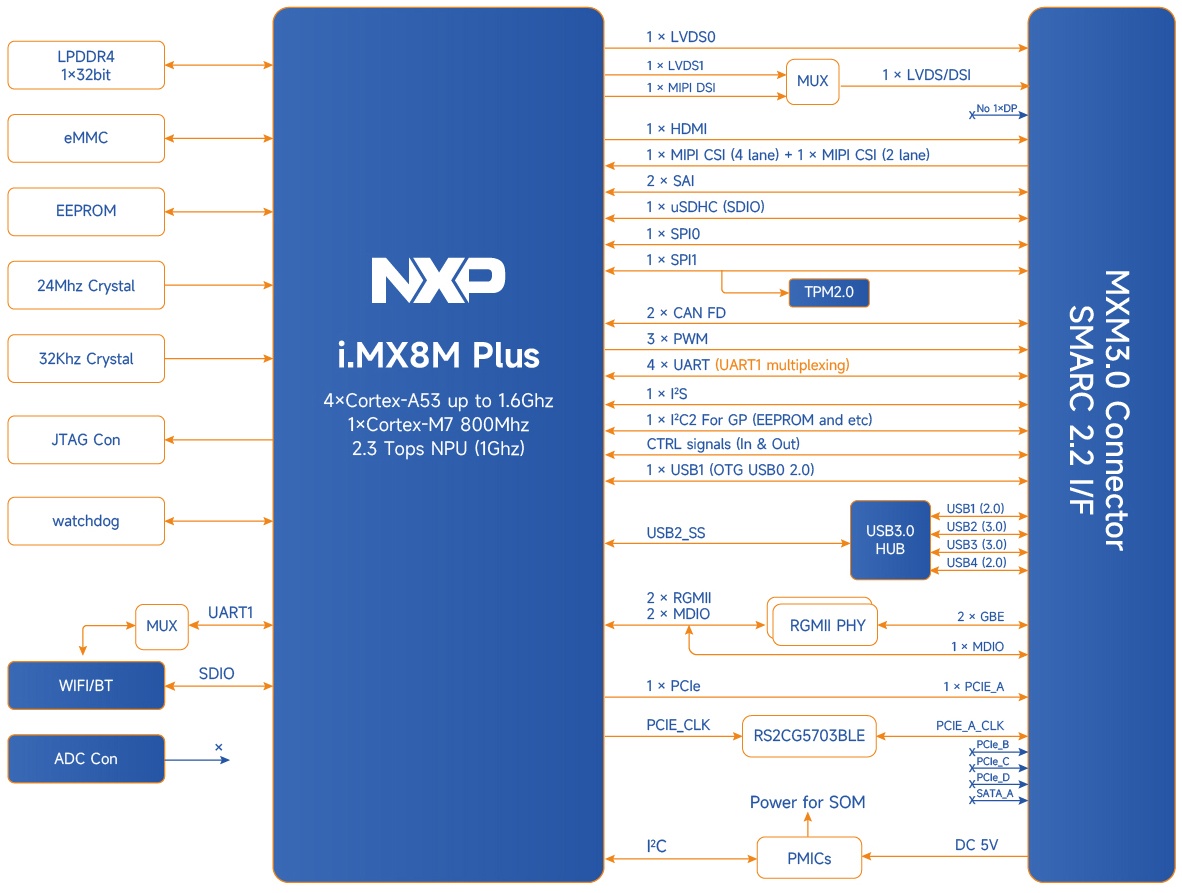

MYC-JS8MPQ Function Block Diagram

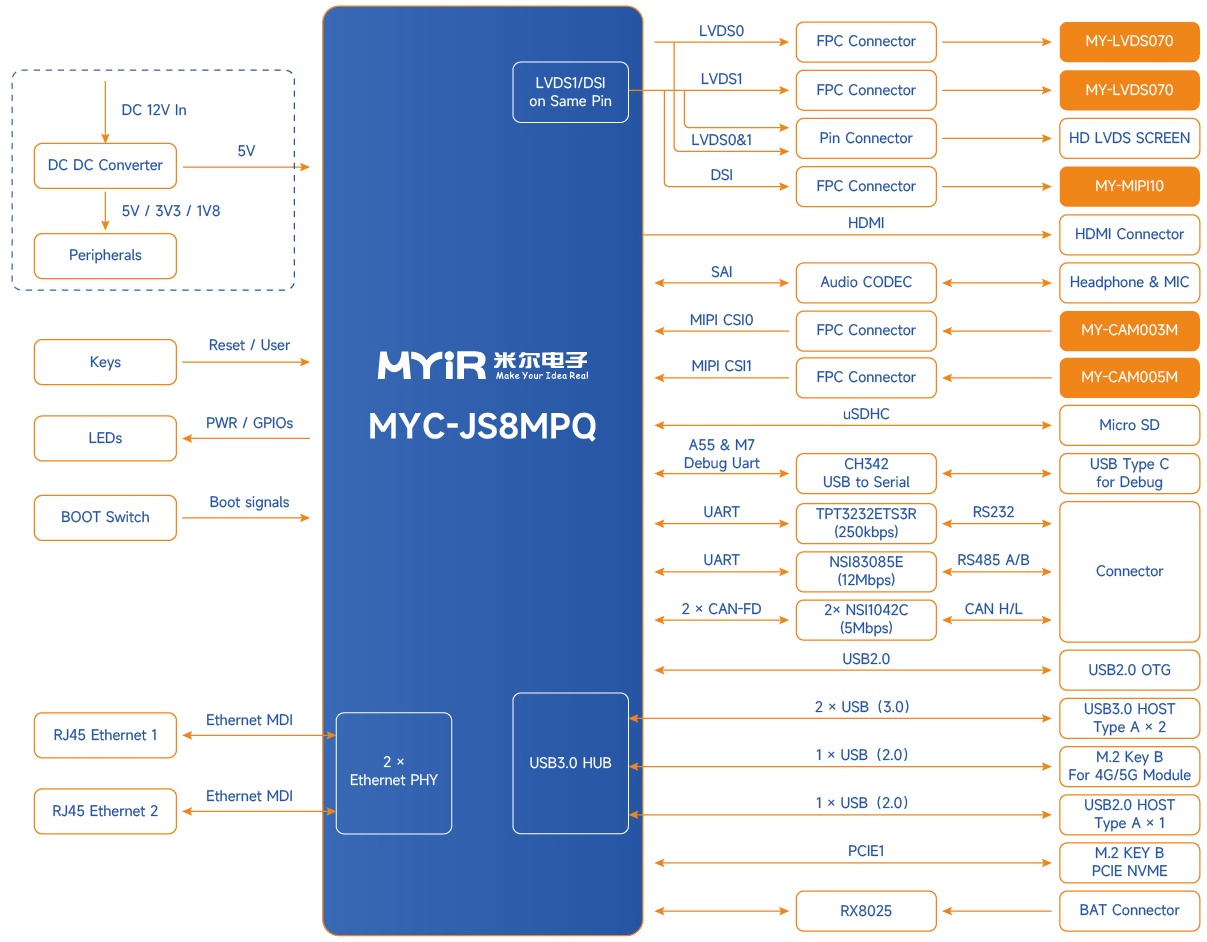

MYD-JS8MPQ Function Block Diagram

The MYC-JS8MPQ supports Yocto Linux (kernel 6.12.49), with a software package that includes BSPs, peripheral drivers, and documentation. Source code for the kernel and various peripheral drivers is provided to help developers accelerate their projects. The main software components include:

• Bootloader: U-Boot 2025.04, with source code provided

• Linux Kernel: Customized based on the official Linux 6.12.49 LTS kernel, with source code provided

• File System: myir-image-full, a Yocto-based image with GUI support, Qt runtime libraries, and machine learning (ML) capabilities, supporting Shell, C/C++, QML, and Python development

• Peripheral Drivers: Source code is provided for the listed USB host/OTG, Ethernet, RS232, RS485, CAN, RTC, GPIO, Wi-Fi/Bluetooth, and audio (ES8388) drivers

Ordering options for the MYC-JS8MPQ SOM include MYC-JS8MPQ-16E2D-160-I and MYC-JS8MPQJ-32E4D-160-I. The standalone SOM package contains one module; a heatsink is not included. The MYD-JS8MPQ development board is offered under part numbers MYD-JS8MPQ-16E2D-160-I and MYD-JS8MPQ-32E4D-160-I. Each package includes a development board with the MYC-JS8MPQ SOM installed with a pre-mounted heatsink, a 12V/2A power adapter, a USB Type-A to Type-C cable, a Quick Start Guide, one Wi-Fi IPEX antenna, and one Wi-Fi rod antenna. MYIR also accepts custom hardware designs based on the MYD-JS8MPQ, including reducing, adding, or modifying existing hardware to meet customer requirements. Bulk discounts are available upon inquiry.

For more information, pricing, or product inquiries, please visit the official product page:
https://en.myir.cn/iMX8MPlus/179.html

Additional resources: Download Datasheet · Order Evaluation Unit · Contact Sales · Contact FAE
