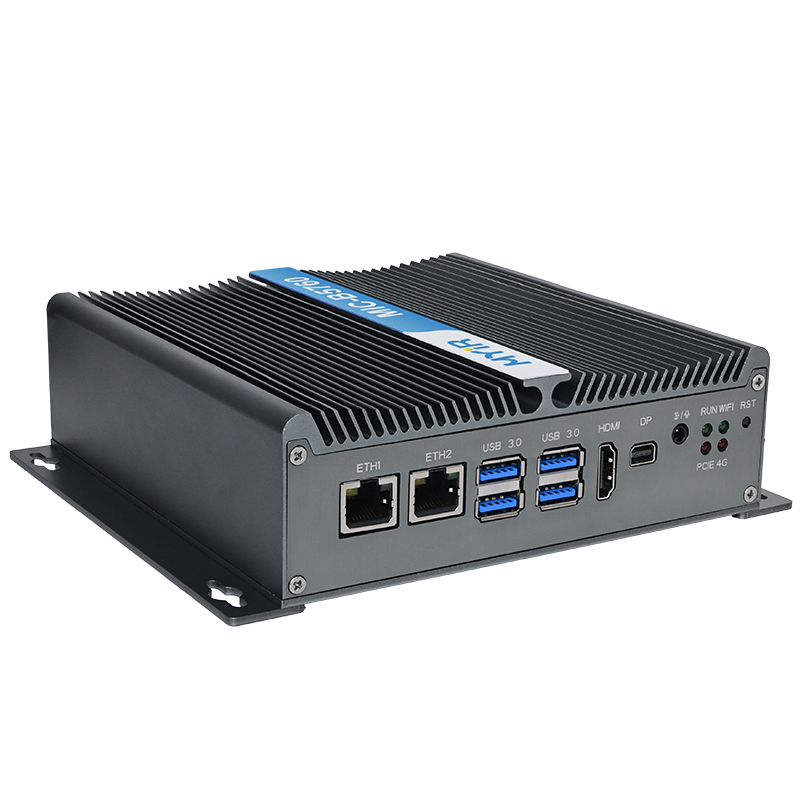

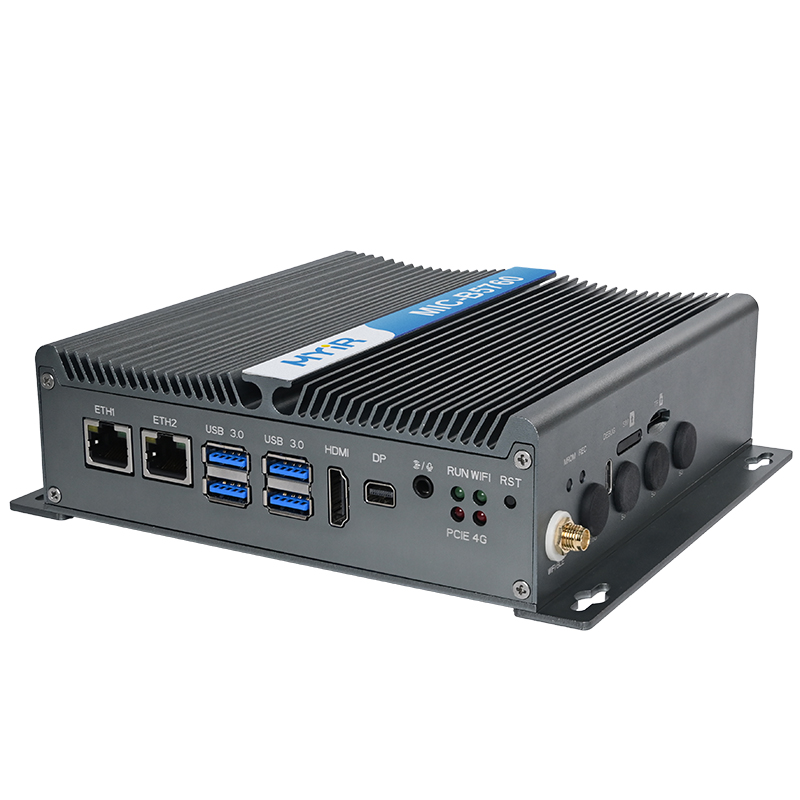

MIC-B5760
Rugged Industrial IPC Box with Isolated CAN, RS485, RS232, GPIO
RK3576J Processor based on 1.6GHz Quad-core ARM Cortex-A72 and 1.4GHz Quad-core ARM Cortex-A53
Equipped with a 6 TOPS NPU Accelerator and a 3D GPU
4GB LPDDR5, 32GB eMMC, 4KB EEPROM

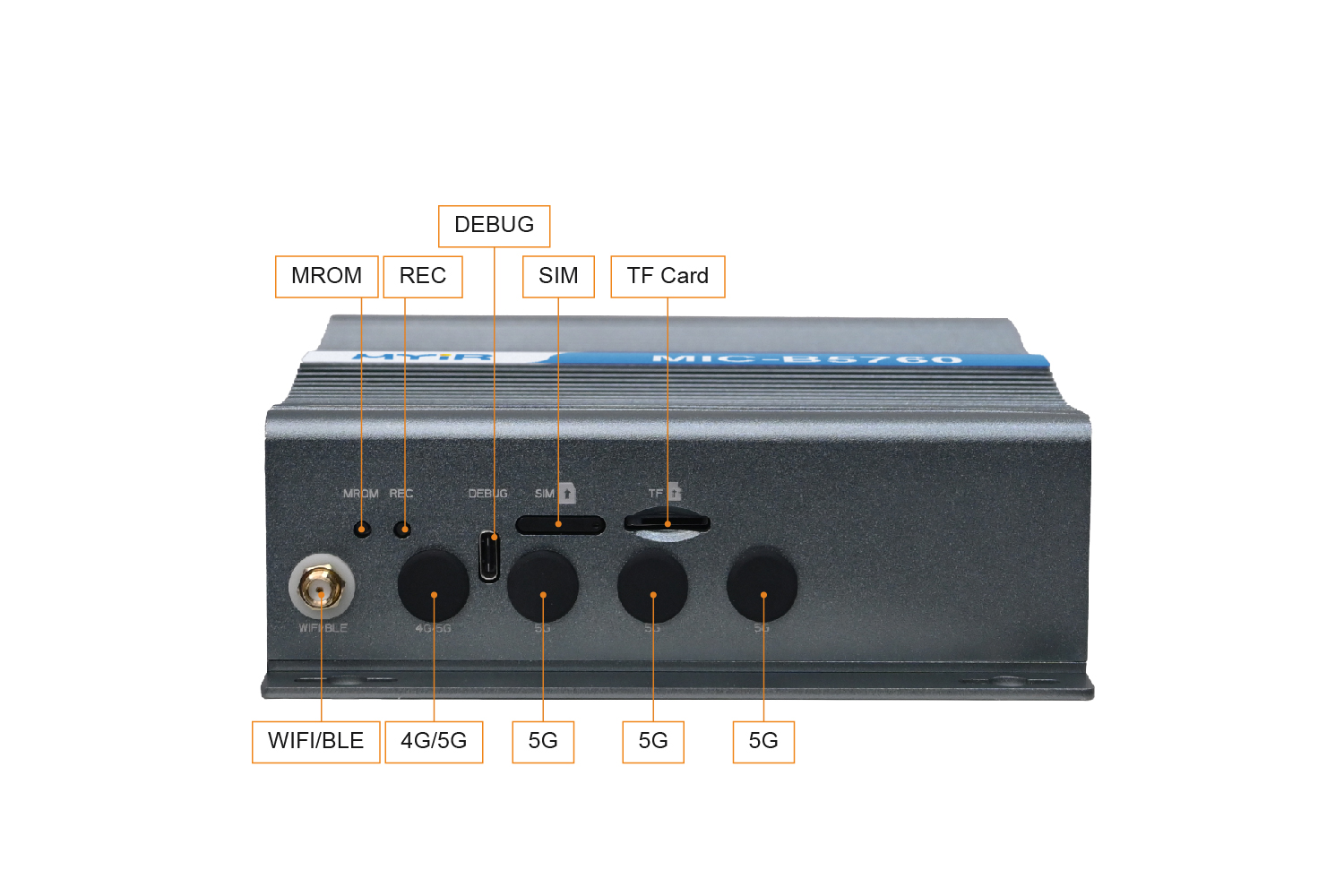

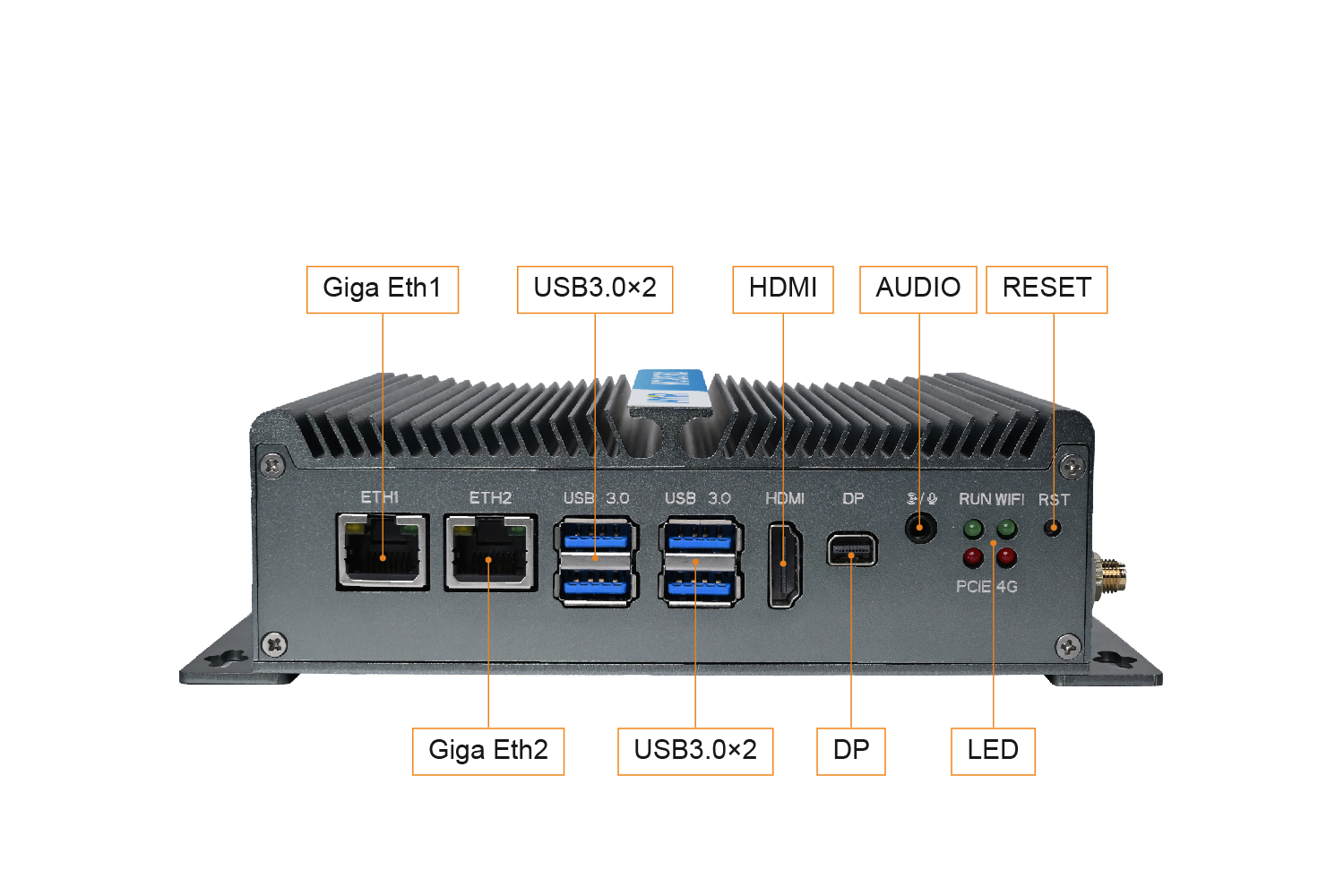

1x Debug Port, 2x Gigabit Ethernet, 4x USB 3.0, 1x MicroSD, 1x SIM Card Slot

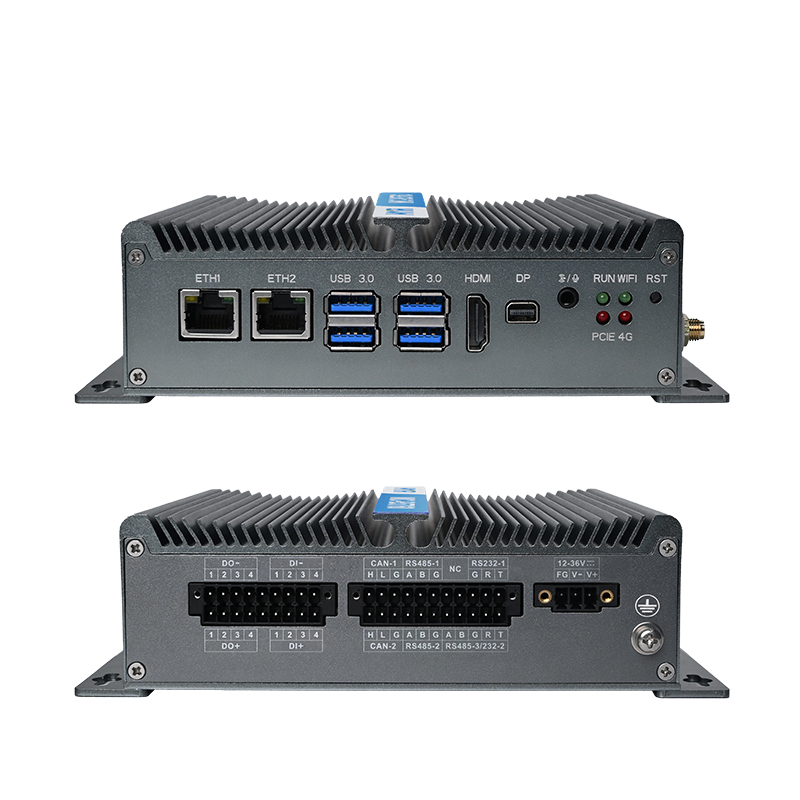

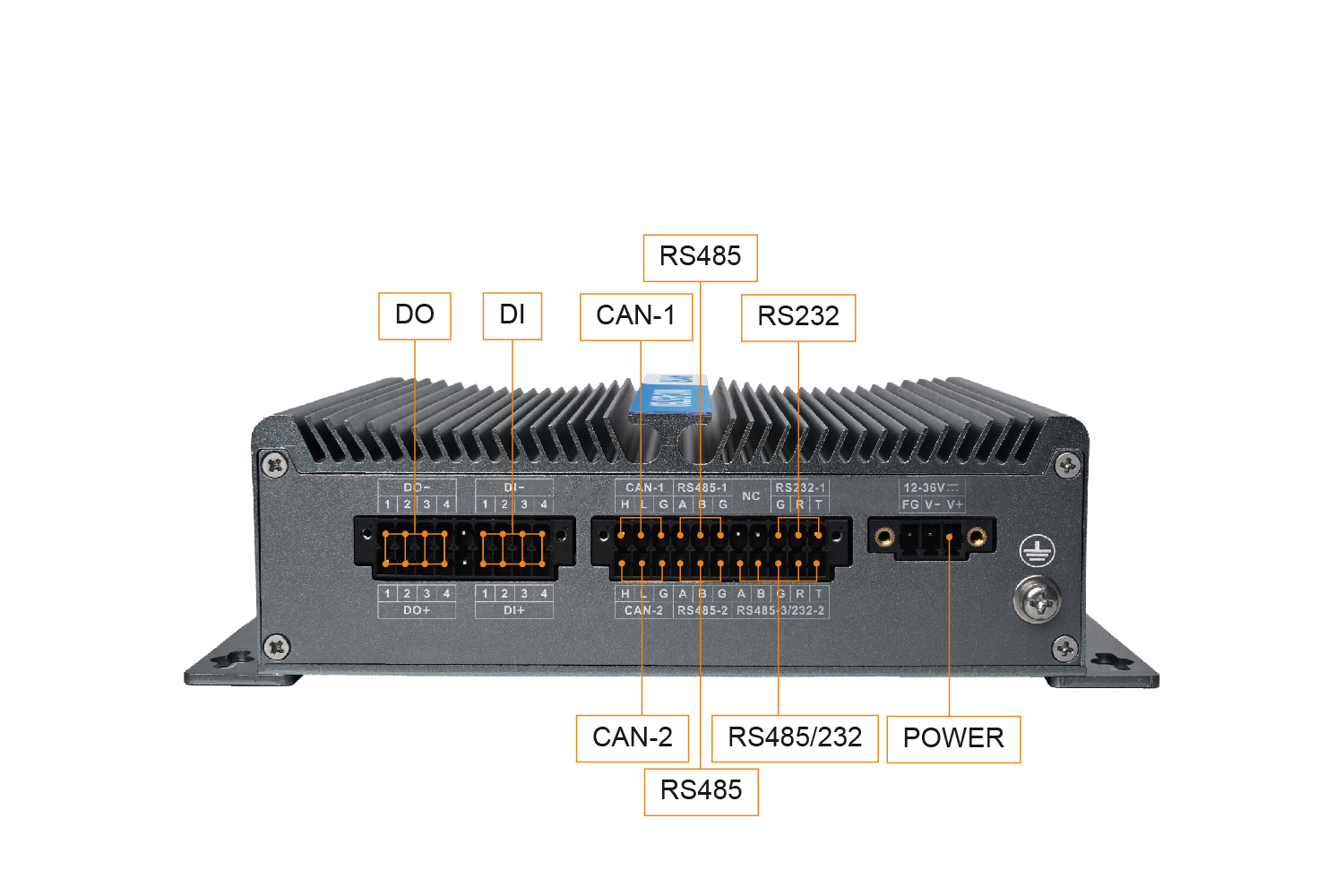

2x RS485, 1x RS232, 1x RS485/RS232, 2x CAN, 4x DI, 4x DO
Onboard WiFi/Bluetooth Module and Mini-PCIe Slot for 4G/5G Module
Onboard M.2 (PCIe) M-Key 2280 Slot for SSD and Computing Power Card
Supports HDMI and Mini DP Display, and Audio In/Out
Supports Linux (Yocto), Debian

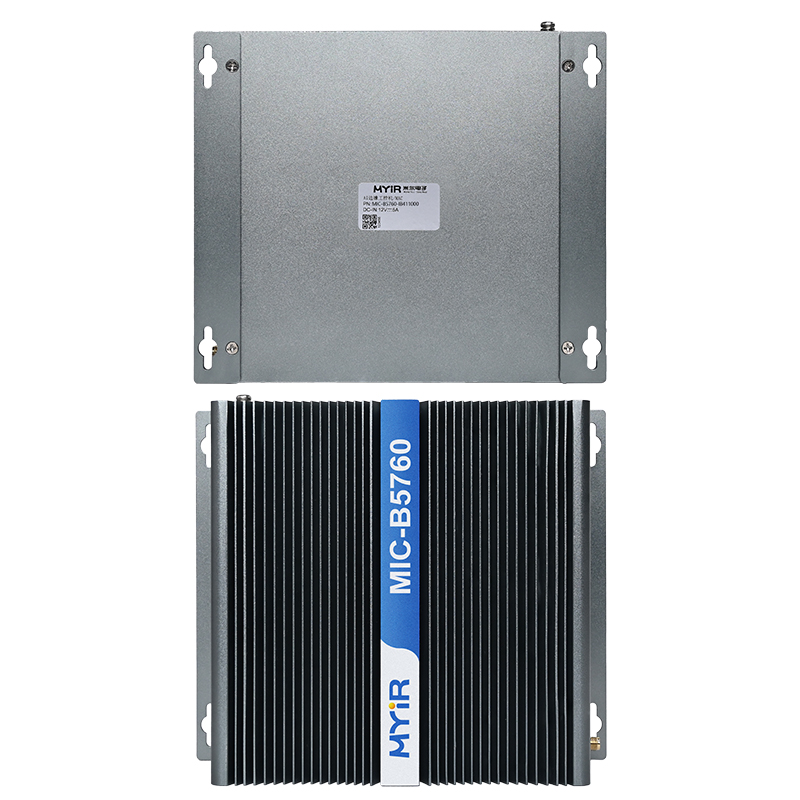

Rugged and Fanless Enclosure Design
Operating Temperature -40°C ~ 85°C

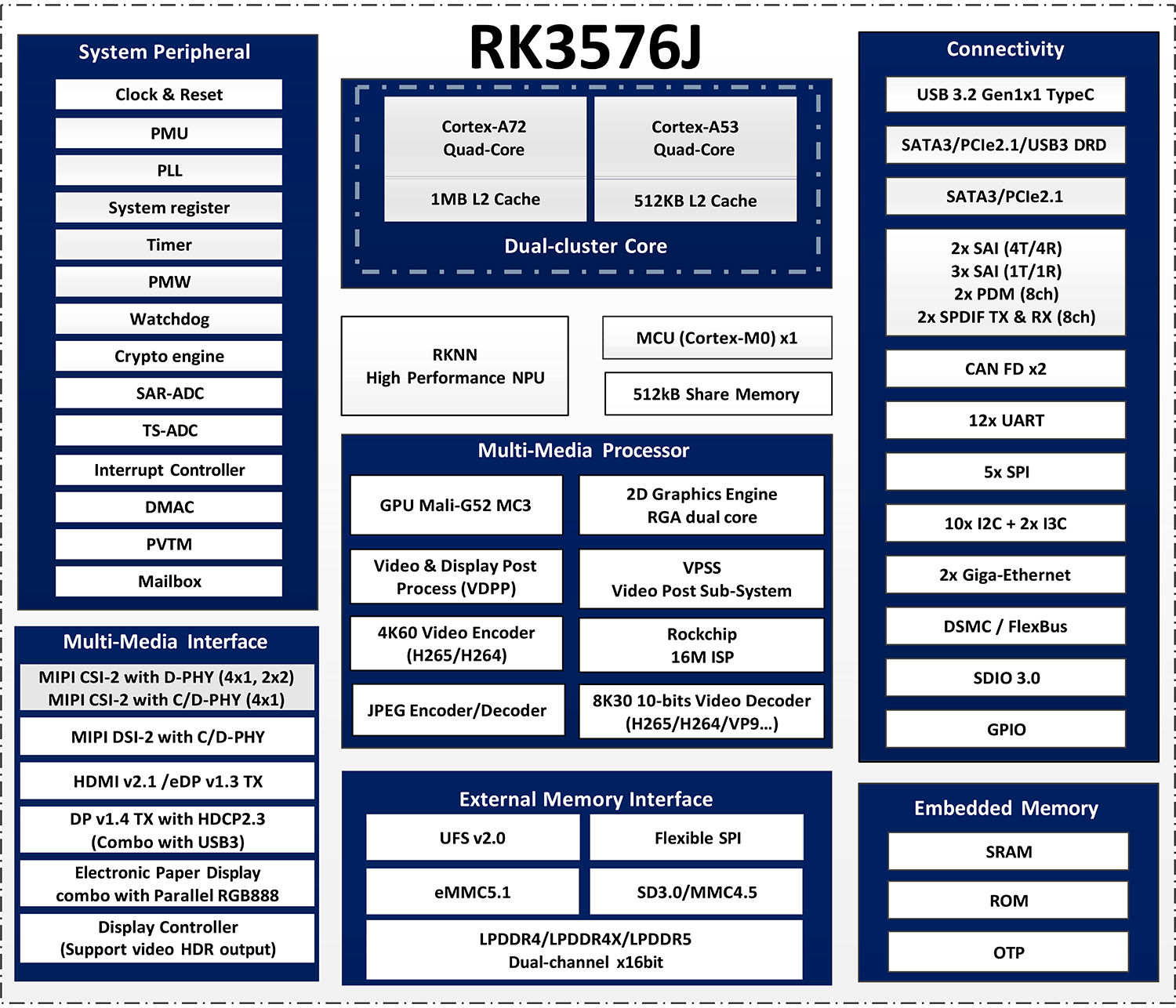

Rockchip RK3576J: Powerful Processor with 6TOPS NPU and a high-performance 3D GPU
Rockchip RK3576J is a high-performance industrial SoC for industrial automation, edge computing and smart manufacturing. It adopts an octa-core CPU (4×A72 up to 2.1GHz + 4×A53 up to 1.9GHz), paired with a 6 TOPS NPU and high-performance 3D GPU, delivering strong computing power and efficient AI inference for industrial intelligent applications and complex data processing.
IPC - MIC-B5760
The MIC-B5760 is a rugged aluminum-alloy Industrial PC (IPC) Box suited for applications such as industrial automation, data acquisition, energy storage, intelligent transportation, security monitoring, medical devices, edge gateways, factory automation, PLC replacement and upgrade solutions, and automated testing.

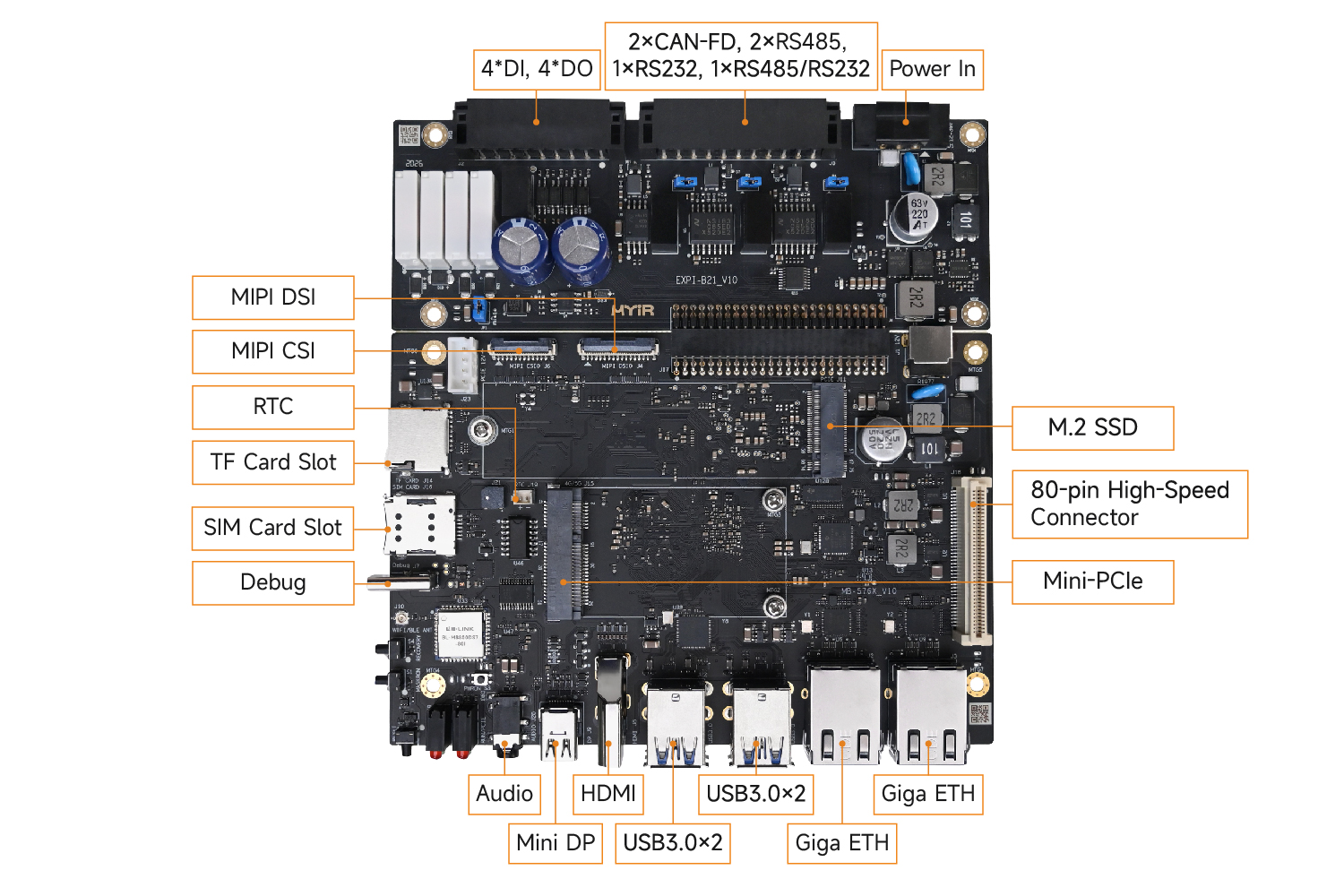

Powered by the Rockchip RK3576J industrial-grade SoC (octa-core CPU up to 1.6GHz, 6 TOPS NPU, 3D GPU) with LPDDR5 memory, it delivers strong computing and AI performance. Storage and acceleration are expandable via an M.2 (PCIe) 2280 slot, with eMMC and UFS options. The device provides a rich set of peripheral interfaces: 2x Gigabit Ethernet, 4x USB 3.0, HDMI and Mini DP display outputs, and a 3.5mm audio input/output jack. Wireless connectivity includes WiFi/Bluetooth, as well as 4G/5G cellular via an onboard mini PCIe slot and Micro SIM card slot. Industrial interfaces include isolated 2x CAN FD, 2x RS485, 2x RS232, 1x RS485/RS232, and GPIOs.
MYIR offers comprehensive software support for Linux (Yocto) and Debian operating systems, including U-Boot, Linux kernel 6.1, driver source code, and development tools. Detailed documentation such as product manuals, user guides, and development references are also provided to facilitate secondary development and accelerate custom application deployment.
Edge gateways
Energy storage
Factory automation
Medical devices
PLC replacement and upgrade solutions
Security monitoring
Download
| File Name | Type | Size | Download Links |
|---|---|---|---|
| MIC-B5760 IPC Box Overview | 823.8 KB |
|
Ordering
The sample price applies only to the first 2 pieces per customer. For any quantity beyond 2 pieces, the sample price no longer applies. Please contact us for pricing.
| IPC Box | Packing List | RAM | Flash | Sample Price | Ordering | |
|---|---|---|---|---|---|---|
MIC-B5760-IB411000 | * One MIC-B5760 IPC Box (4GB LPDDR5 +32GB eMMC) * One Quick Start Guide * One 3.5 mm pitch 18-pin Phoenix connector * One 3.5 mm pitch 22-pin Phoenix connector * One 3.81 mm pitch 3-pin Phoenix connector * One WiFi/Bluetooth antenna | 4GB LPDDR5 | 32GB eMMC | USD339 |  | |
