MYIR Launches MIC-P5760 Full-Isolation Industrial IPC Box: RK3576J Edge AI with Full Isolation for Energy & Industrial Automation
2026-08-06
41
"With the MIC-P5760, we've taken everything we learned from the MEC-B5760 and MIC-B5760 and pushed it further. The full-isolation design means every CAN FD, RS485, RS232, and digital I/O channel is galvanically isolated. That matters in the field, whether you're deploying at a charging station or a substation. We also kept the dual Debian and Yocto software stack fully open-source, so developers can get from prototype to production without fighting proprietary lock-in."— [Cloud Ye], [Product Manager], MYIR Electronics
Energy infrastructure deployments need isolation, edge AI, and wide-temperature reliability in one box. The MIC-P5760 brings all three: a fanless RK3576J-based platform with 6 TOPS NPU, fully isolated industrial interfaces, and triple-display output, housed in an aluminum enclosure rated for -40°C to +85°C.

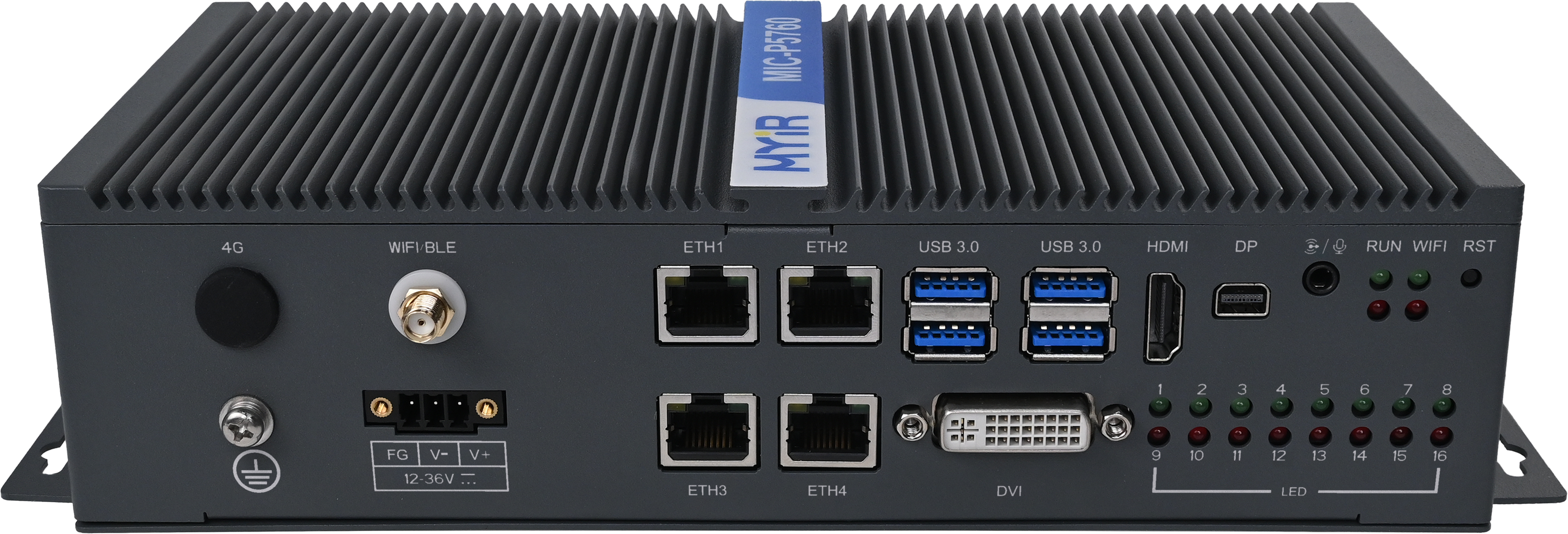

Figure 1. MIC-P5760 front panel: 4×Gigabit Ethernet, 4×USB 3.0, HDMI, Mini DP, DVI, WiFi/BT antenna, 4G antenna, DC power input, status LEDs, and Reset/Recovery buttons.
Flagship Full-Isolation Communication
- 4× CAN FD (isolated): high-speed, low-latency bus communication with galvanic isolation that blocks common-mode interference and ground loops
- 8× RS485 (isolated): multi-channel serial bus for industrial device interconnection
- 2× RS232 (isolated) + 1× RS485/RS232 (isolated): flexible serial adaptation for legacy and modern devices
- 8× DI (isolated): surge-resistant, signal-accurate digital input with channel-independent isolation
- 14× DO (isolated): independent isolated digital output channels for reliable control
- 4× ADC inputs: analog signal acquisition for sensor monitoring
- 1× HDMI, supports up to 4K@120Hz resolution
- 1× Mini DisplayPort, supports up to 4K@60Hz resolution
- 1× DVI, for legacy industrial displays
- Triple-screen independent display: simultaneously output local monitoring and debugging interfaces
- 1× 3.5mm Audio Jack (headphone output + microphone input)
- 4× Gigabit Ethernet (10/100/1000Mbps), multi-network deployment in one machine
- 4× USB 3.0 Type-A Host Ports
- 1× Type-C USB-UART Debug Interface
- Onboard WiFi 6 (802.11a/b/g/n/ac/ax) + Bluetooth 5.4 module
- 1× Mini-PCIe slot for 4G/5G module (plug-and-play) + 1× Micro SIM card slot
- 4GB LPDDR5 RAM (8GB available as customization option)
- 32GB eMMC (64GB or 128GB UFS available as customization options)
- 4KB EEPROM for configuration storage
- 1× Micro SD card slot
- 1× M.2 (PCIe) M-Key 2280 slot for SSD storage and AI computing card expansion

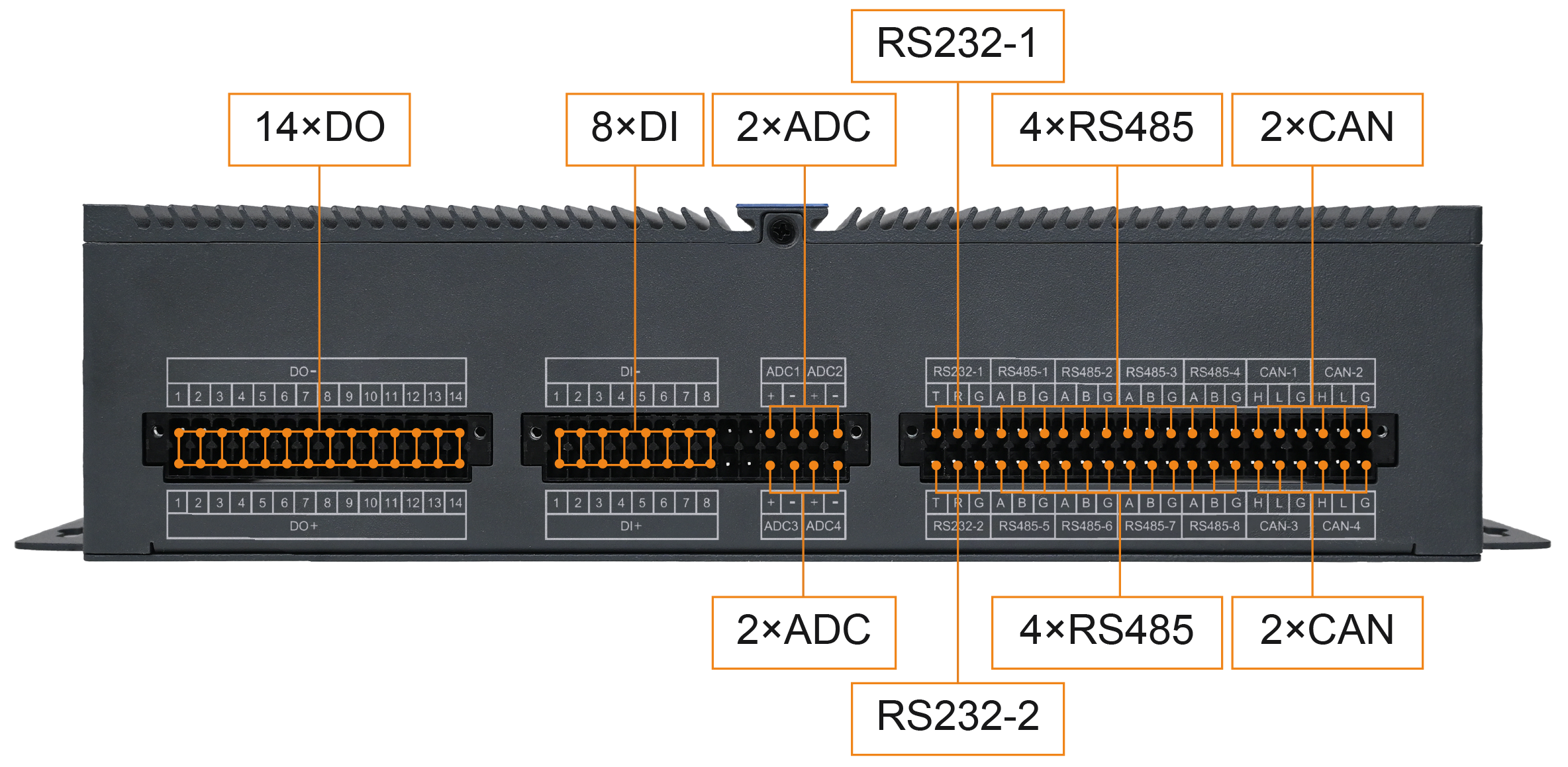

Figure 2. Fully isolated industrial I/O panel: 14×DO, 8×DI, 4×ADC, 8×RS485, 4×CAN FD, 2×RS232.
High-Performance RK3576J Edge AI Platform
The MIC-P5760 runs on the Rockchip RK3576J, an industrial-grade SoC with an octa-core CPU (4×Cortex-A72 + 4×Cortex-A53), a 6 TOPS NPU, and a Mali-G52 MC3 3D GPU. The processor supports 8K@30fps and 4K@120fps video decoding (H.265, VP9, AVS2, AV1), 4K@60fps encoding (H.265, H.264), and a 16MP ISP.
The NPU supports INT4/8/16, FP16, BF16, and TF32 precision, so you can run AI inference models on the device for anomaly detection, predictive maintenance, and energy optimization without sending data to the cloud.
Rugged Fanless Design & Triple Protection
- Operating Temp: -40°C to +85°C (industrial grade)
- Enclosure: Full aluminum alloy, fanless fin-type passive cooling. No fan, no dust buildup, no mechanical wear, zero noise
- Dimensions: 230×119×59mm (without mounting bracket), 260×119×59mm (with mounting bracket)
- Net Weight: 1,190g
- Power Input: DC 12~36V wide-voltage (via Phoenix connector), industrial power fluctuation resistant
- Triple System Protection:
1. Real-time power-loss detection & monitoring
2. Supercapacitor power-off buffer (5-second holdup after power loss)
3. External independent watchdog timer for system recovery
- RTC: External, with 3.3V battery backup
- Onboard Buzzer: For audible system alerts
- Status LEDs: Power/System · WiFi · PCIe SSD · 4G/5G
- Buttons: Reset · RECOVERY · MASKROM
- Installation: Desktop / Wall-mounted (Rail-mounted customizable)
- High/low temperature testing
- High-temperature aging test
- Full-load stress test
- 3,000 power-on/power-off cycles
- Full I/O functional test
- Power supply stability test
- 6 EMC tests: Radiated emission, conducted emission, electrostatic discharge (ESD), radiated immunity, surge immunity, electrical fast transient (EFT) burst

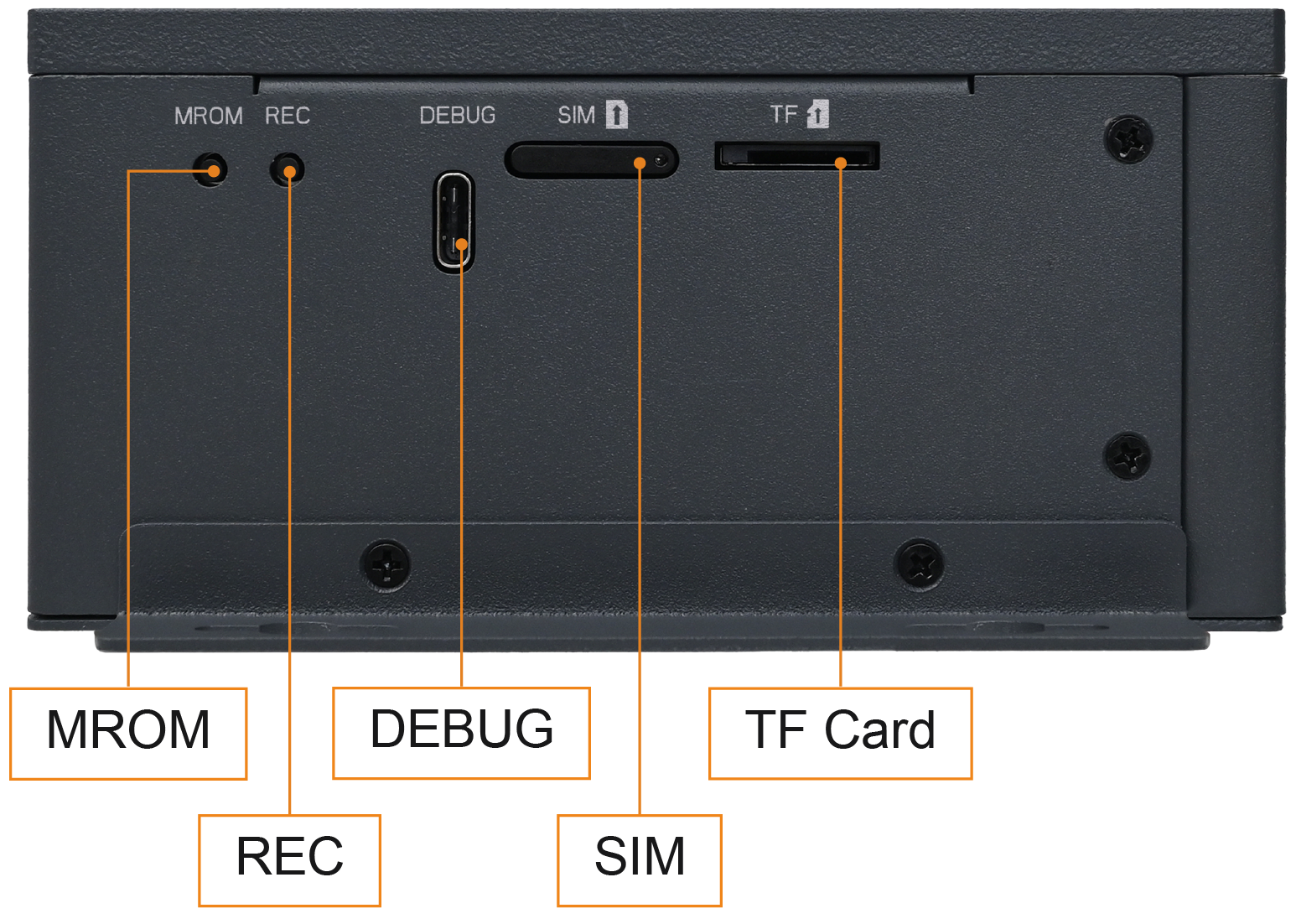

Figure 3. Side panel: MROM/REC buttons, Type-C debug, SIM and Micro SD slots.
Dual Industrial Software & CRA-Compliant Security
The MIC-P5760 ships with two Linux images: Debian 12 and Yocto (including Yocto Preempt-RT for real-time workloads). Full open-source BSP is provided, including U-Boot, Linux kernel 6.1, and drivers for all on-board peripherals.
| Component | Details & Source Code |
|---|---|
| Bootloader | U-Boot 2017.09 Open Source |
| Linux Kernel | Kernel 6.1 (Rockchip official base, customized) Open Source |
| File System | Debian · Yocto Linux · Yocto Preempt-RT Open Source |
| Peripheral Drivers | EEPROM · USB · Ethernet · HDMI · DP · DVI · Audio · RTC · GPIO · RS232 · RS485 · CAN · ADC · WiFi · BT Open Source |
Full source code, product manuals, user guides, and development references are provided to support integration and secondary development.
- Secure Boot: trusted boot chain for firmware integrity
- Secure Storage: encrypted data at rest
- OTA Upgrade: secure over-the-air firmware updates
- Encryption Engine: hardware-accelerated cryptographic operations
- Full compliance with EU CRA cybersecurity requirements for global deployment
📦 Availability & Ordering
| Part Number | Configuration | Packing List |
|---|---|---|
| MIC-P5760-IB411000 | 4GB LPDDR5 + 32GB eMMC | IPC Box, Quick Start Guide, Phoenix connectors, WiFi/BT Antenna |
Custom memory/storage configurations (8GB LPDDR5, 64GB/128GB UFS) and full OEM/ODM services available upon request.
Order Now →Get Started with the MIC-P5760
About MYIR
MYIR Electronics Limited is a provider of ARM-based embedded System-on-Modules (SoMs) and hardware solutions. Founded in 2011 and headquartered in Shenzhen, China, MYIR works with customers across industrial control, medical devices, IoT, and consumer electronics. The company offers hardware design, BSP support, and customization services to help engineering teams move from prototype to production.
.
